Tractor · 2008Unverified

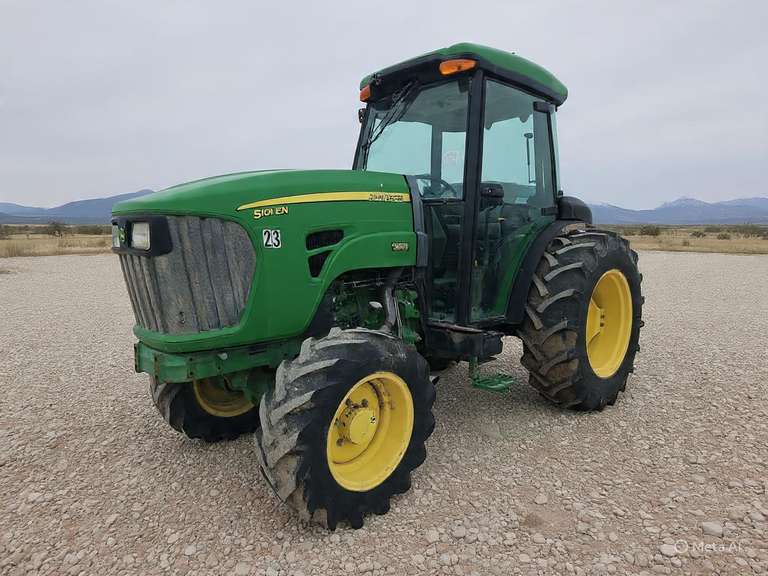

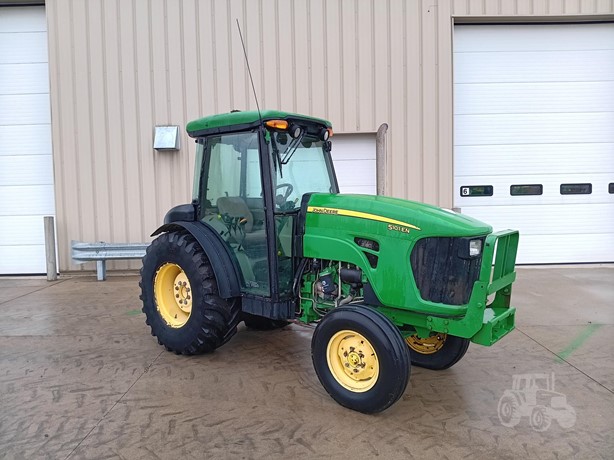

John Deere 5101EN

Name: John Deere 5101EN
Brand: John Deere

John Deere 5101EN — Model year 2008-20112012-2022 · 99 hp. Reference specifications; pending source verification.

The John Deere 5101EN is a tractor with a rated output of 99 hp, positioning it in the middle of its class for power. It was manufactured from 2008 to 2022. The model features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive. Its listed operating weight ranges from 5483 to 5837 pounds, and it is suited for land areas of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

99 hp

Weight

5483 to 5837 pounds

Catalogue coverage

Variants represented

Richest spec table

90 rows

Recorded power

99 hp

Transmissions

12-speed partially synchronized power shuttle

Production years

2008-2022

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Orchard/Vineyard tractorReference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS. Cab optional.Reference

Variants

5101Eutility chassisReference

5101ENnarrow chassisReference

Engine

John Deere 4.5L 4-cyl dieselReference

Engine (gross)73.8 kWReference

John Deere 4Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

EmissionsTier 2Reference

Power (gross)73.8 kWReference

Fuel systemdirect injectionReference

Compression17.6:1Reference

Rated RPM2400Reference

Idle RPM825-2625Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity11.4 LReference

Oil capacity8.5 LReference

Oil change300 hReference

Oil change500 h (JD PLUS-50 oil)Reference

Transmission

12-speed partially synchronized power shuttleReference

24-speed two-speed power shiftReference

TransmissionPowrReverserReference

Typepartially synchronized power shuttleReference

Gears12 forward and reverseReference

Clutchhydraulic wet discReference

Oil capacity43.5 LReference

Four gears (1-4) in the ranges (A-C) with left hand power shuttle lever. Shifts between gears are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift gears.Reference

TransmissionPowrReverser Hi/LoReference

Typetwo-speed power shiftReference

Gears24 forward and reverseReference

Oil capacity45.4 LReference

The Hi/Lo option adds a two-speed push button power shift to the PowrReverser transmission.Reference

PTO & Hydraulics

PTO (claimed)61.1 kWReference

Hydraulic system43.5 LReference

Hydraulic system45.4 LReference

Typeopen centerReference

Capacity43.5 LReference

Capacity45.4 LReference

Pressure195.0 barReference

Valves2 to 3Reference

Pump flow69.6 lpmReference

Total flow94.6 lpmReference

Steering flow25.0 lpmReference

Steering press.131.0 barReference

Rear TypeII/IReference

Controlposition controlReference

Rear lift (at 24"/610mm)1530 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/540E (1.375)Reference

Engine RPM540@2400Reference

Engine RPM540E@1700Reference

Capacities

Fuel71.9 LReference

Dimensions

2WD Wheelbase217 cmReference

4WD Wheelbase207 cmReference

Weight5483 to 5837 poundsReference

Length384 cmReference

Width114 cmReference

Width115 cmReference

Width125 cmReference

Clearance (front axle)26 cmReference

Shipping2487 kgReference

Shipping2647 kgReference

Shipping2550 kgReference

Shipping2623 kgReference

Steering wheel166 cmReference

5101EN Serial Numbers

Location:Tractor frame, front right side.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps70 (ROPS)Reference

Charging amps90 (cab)Reference

Charging amps120 (optional)Reference

Battery CCA750Reference

Battery volts12Reference

John Deere 5101EN Height

2WD Hood136 cmReference

4WD Hood140 cmReference

ROPS245 cmReference

ROPS199 cmReference

Cab255 cmReference

Speeds

With 12.4-24 R1 rear tires. Reverse speeds about 10% faster than forward speeds.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
