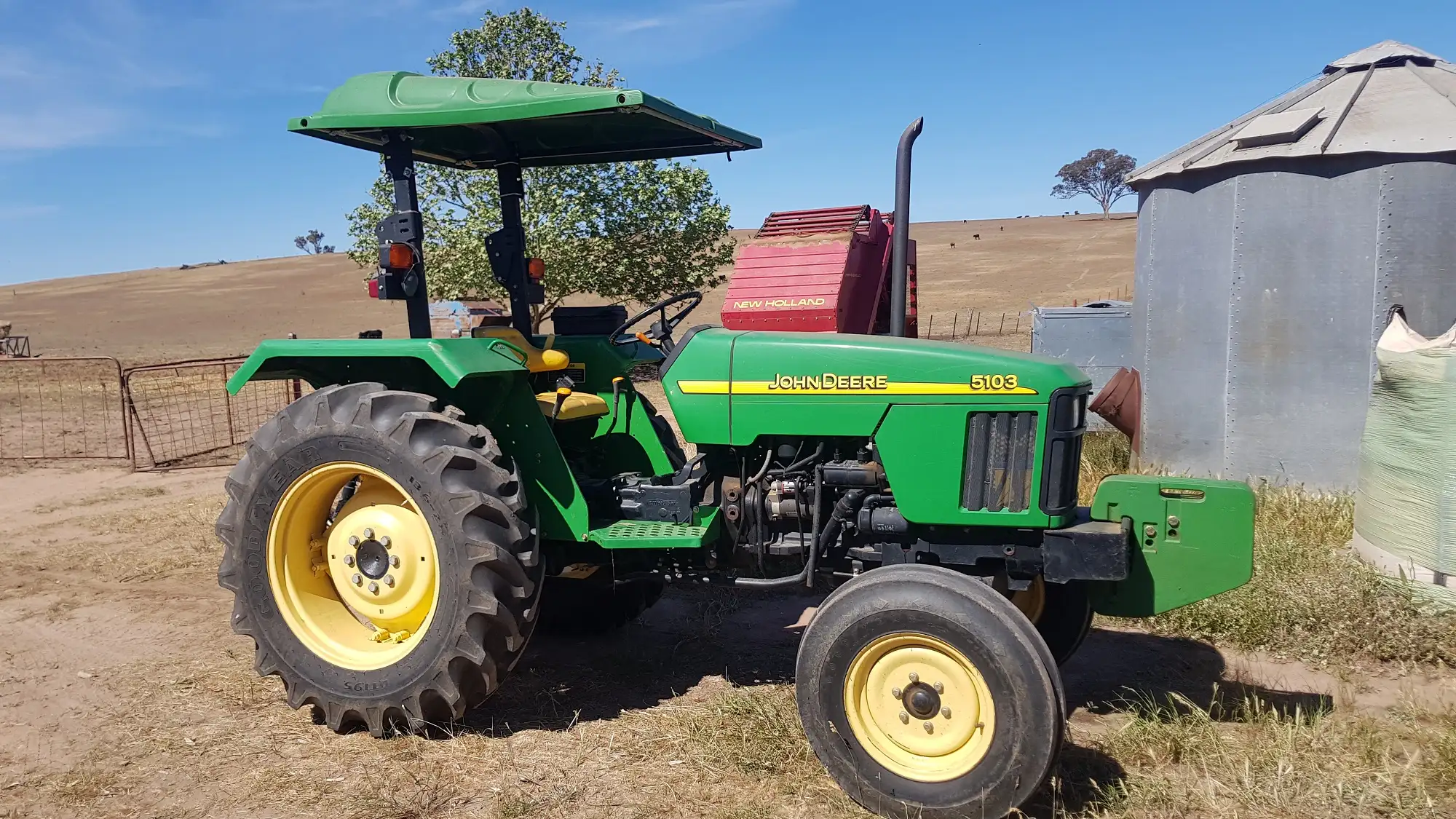

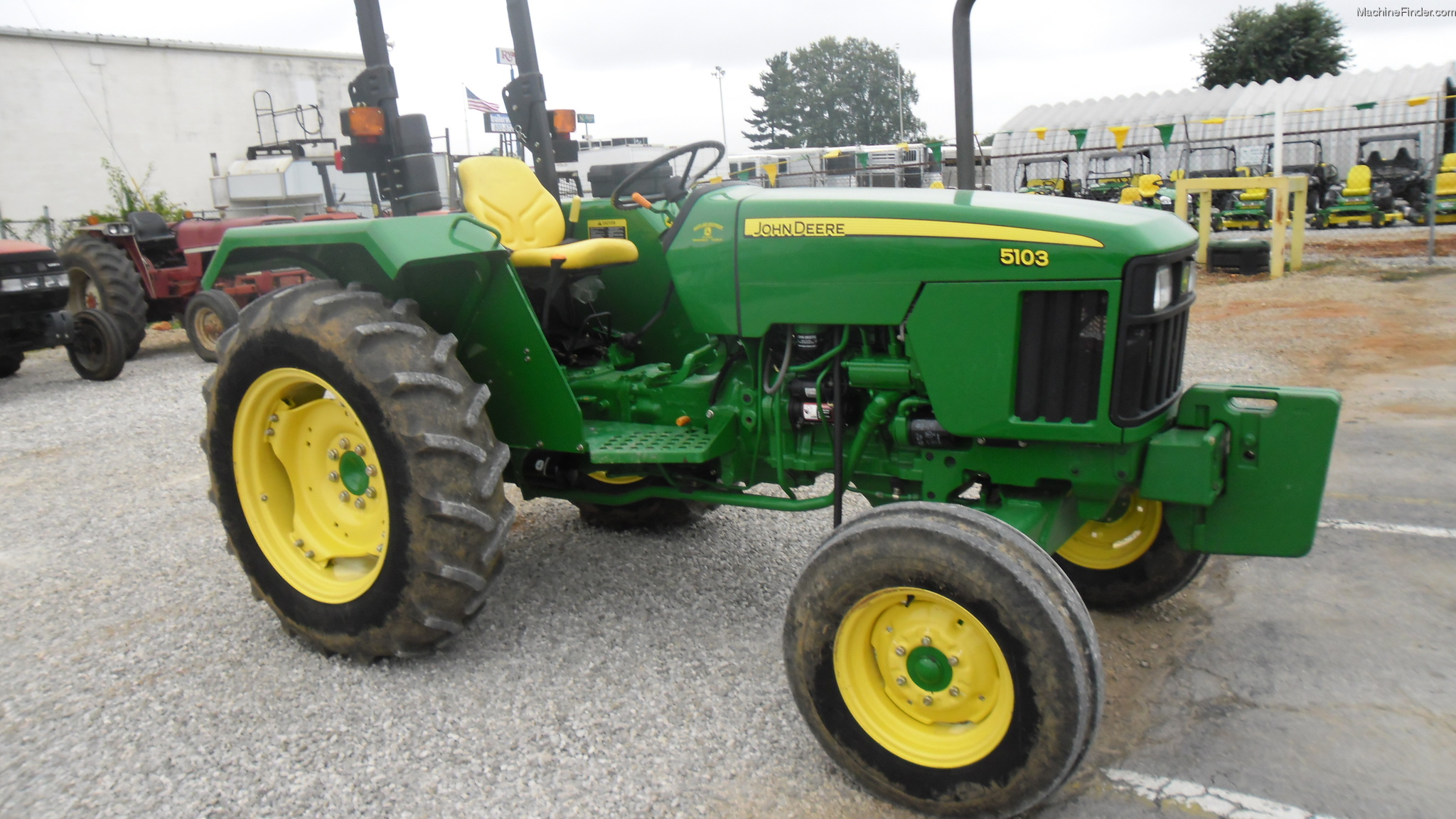

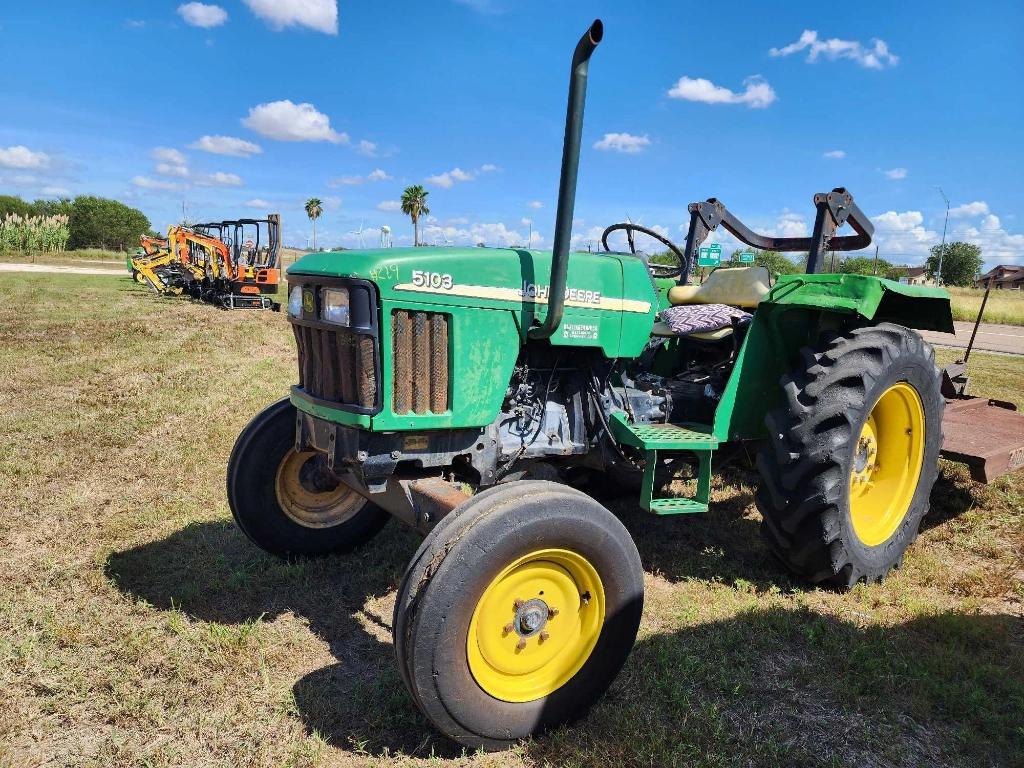

The John Deere 5103E is a compact tractor rated at 33 hp. Manufactured from 2003 to 2010, it is powered by a 3-cylinder diesel liquid-cooled engine, which drives through a two-wheel drive system with an 8-speed gearbox. The listed weight of the 5103E is 1789 kg, making it suitable for jobs of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
1789 kg
Catalogue coverage
Variants represented
2
Richest spec table
49 rows
Recorded power
33 hp
Recorded weight
1789 kg
Transmissions
8-speed collar shift gear
Production years
2003-2010
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Built in Pune, Maharashtra, IndiaReference
Two-wheel driveReference
Manual steeringReference
Open operator station. ROPS optional.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
Fuel tank62.1 LReference
Engine28.0 kWReference
John DeereReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power28.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17.8:1Reference
Rated RPM2300Reference
Torque128.0 NmReference
Firing order1-2-3Reference
Starter volts12Reference
Starter power2.5 kWReference
Transmission
8-speed collar shift gearReference
Typecollar shift gearReference
Gears8 forward and 4 reverseReference
Four gears (1-4) in two ranges (A/B) plus reverse (R) range. Tractor must be stopped, and clutch used, to shift gear or range.Reference
PTO & Hydraulics
PTO (claimed)24.6 kWReference
Typeopen centerReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)1099 kgReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2200Reference
Dimensions
Wheelbase195 cmReference
Weight1789 kgReference
Front tire6.0x16Reference
Rear tire12.4x28Reference
Ag front6.0x16Reference
Ag rear12.4x28Reference
Length333 cmReference
Width165 cmReference
Ground clearance41 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Battery AH88Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
