Tractor · 2003Unverified

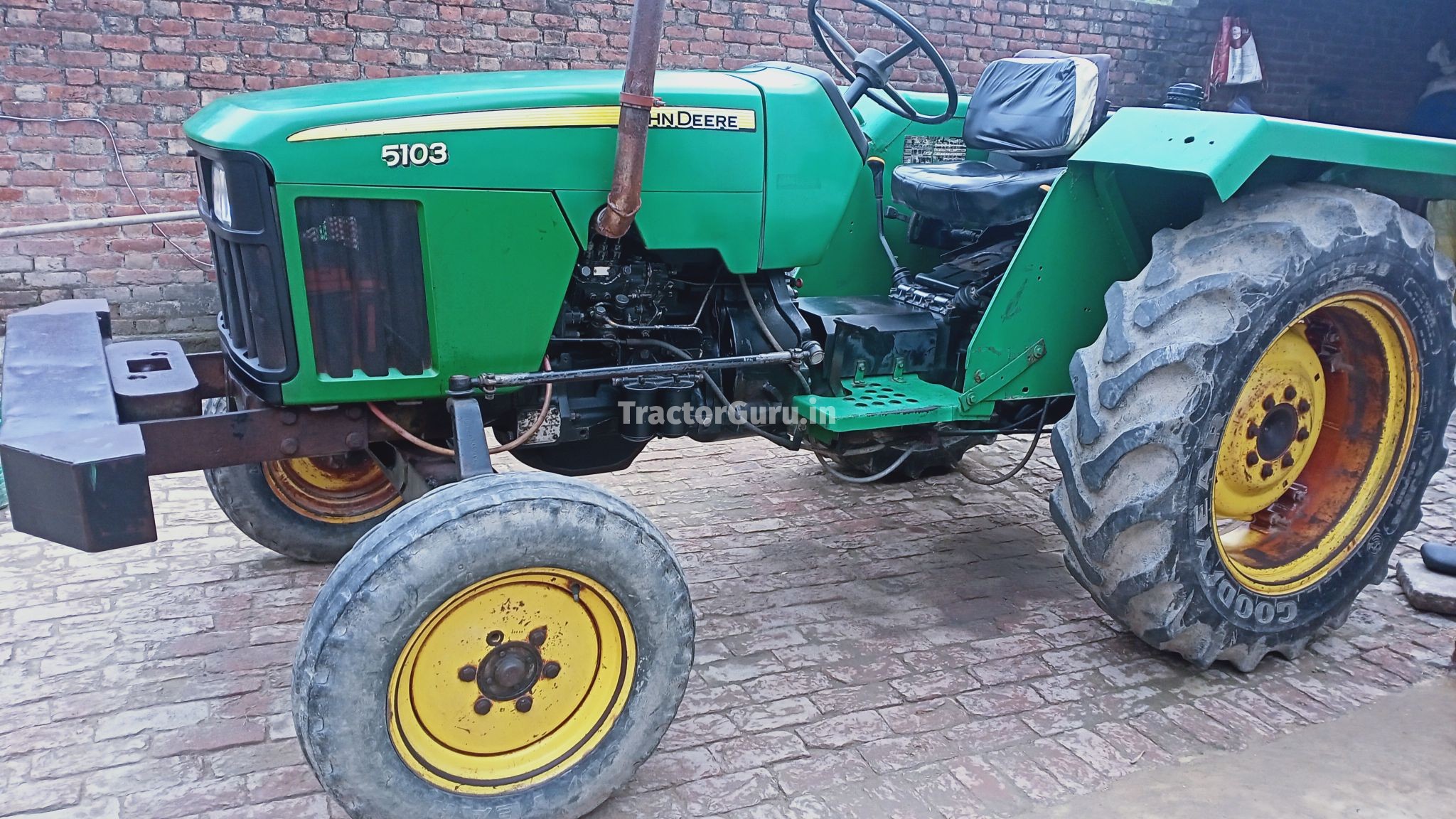

John Deere 5103S
John Deere 5103S · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Weight
1809 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Built in Pune, Maharashtra, IndiaReference
Two-wheel driveReference
Manual steeringReference
Mechanical wet disc brakesReference
Open operator station. ROPS optional.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
Fuel tank62.1 LReference
Engine31.3 kWReference
John DeereReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power31.3 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17.8:1Reference
Rated RPM2300Reference
Torque139.0 NmReference
Firing order1-2-3Reference
Starter volts12Reference
Starter power2.5 kWReference
Transmission
8-speed collar shift gearReference
Typecollar shift gearReference
Gears8 forward and 4 reverseReference
Four gears (1-4) in two ranges (A/B) plus reverse (R) range. Tractor must be stopped, and clutch used, to shift gear or range.Reference
PTO & Hydraulics
PTO (claimed)26.8 kWReference
Typeopen centerReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)1220 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2200Reference
Dimensions
Wheelbase195 cmReference
Weight1809 kgReference
Front tire6.0x16Reference
Rear tire13.6x28Reference
Ag front6.0x16Reference
Ag rear13.6x28Reference
Length333 cmReference
Width165 cmReference
Ground clearance41 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Battery AH88Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
