John Deere 5105
John Deere 5105 — Utility tractor · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Max power
35.5 kW
Weight
3850 to 4500 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Augusta, Georgia, USAReference
Two- or four-wheel driveReference
Power steeringReference
Differential mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
Engine34.0 kWReference
John Deere 3029DReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power34.0 kWReference
Power37.3 kWReference
Air cleanerdual dry elementReference
Compression17.4:1Reference
Rated RPM2300Reference
Idle RPM825-2500Reference
Operating RPM1400-2300Reference
Firing order1-2-3Reference
Starter volts12Reference
Coolant capacity9.5 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity7.5 LReference
Power at rated engine speed30.3 kWReference
Max power35.5 kWReference
Power at rated engine speed34.2 kWReference
Transmission
8-speed partially synchronizedReference
TransmissionSyncReverserReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Oil capacity32.2 LReference
Controlled with foot clutch, plus range speed levers. Four speeds and two forward ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift speed or range. Reverse range to forward A-range may be shifted while tractor tractor is in motion.Reference
PTO & Hydraulics
PTO (claimed)29.8 kWReference
PTO (claimed)32.8 kWReference
PTO (tested)35.5 kWReference
Hydraulic system32.2 LReference
Typeopen centerReference
Capacity32.2 LReference
Pressure193.1 barReference
Valves4Reference
Pump flow41.3 lpmReference
Total flow65.9 lpmReference
Steering flow24.6 lpmReference
Steering press.131.0 barReference
Rear TypeII/IReference
Controltop-link draft sensingReference
Rear lift (at 24"/610mm)1356 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2300Reference
Power at rated PTO speed30.3 kWReference
Power at rated PTO speed35.2 kWReference
Capacities
Fuel84.8 LReference
Front axle4.5 LReference
Front hubs0.5 LReference
Dimensions
Wheelbase195 cmReference
Weight3850 to 4500 poundsReference
Front tire7.5-16Reference
2WD Rear tire14.9-28Reference
2WD Standard tires (ag)Front: 7.5-16. Rear: 14.9-28Reference
4WD Standard tires (ag)Front: 9.5-24. Rear: 14.9-28Reference
2WD Length276 cmReference
4WD Length326 cmReference
Width175 cmReference
Ground clearance42 cmReference
2WD Shipping1746 kgReference
4WD Shipping1939 kgReference
2WD ROPS Operating1871 kgReference
4WD ROPS Operating2041 kgReference
Steering wheel155 cmReference

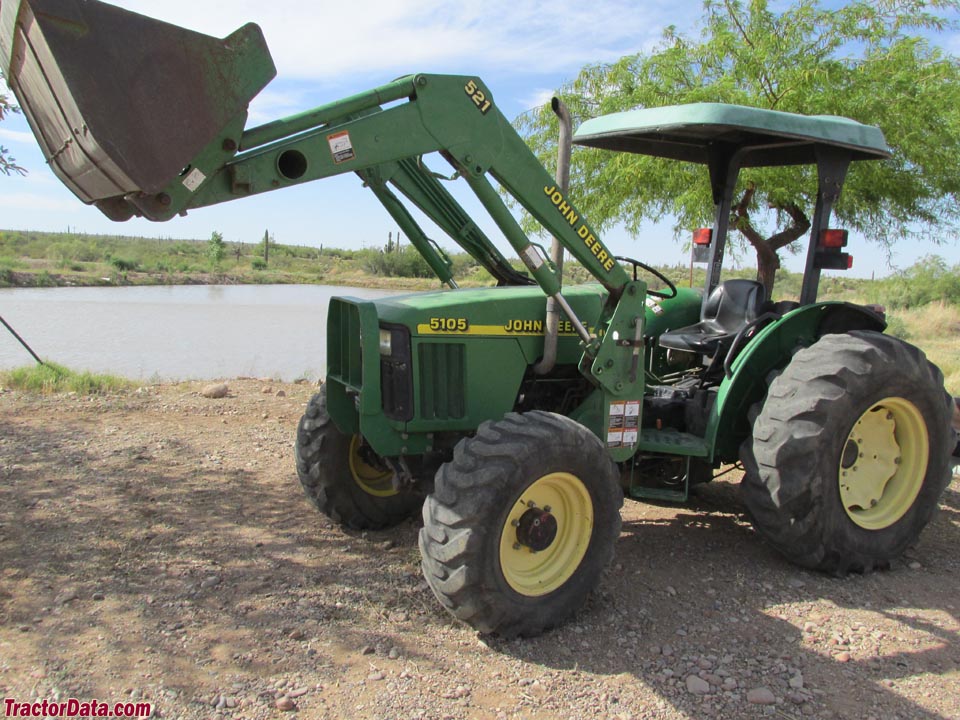

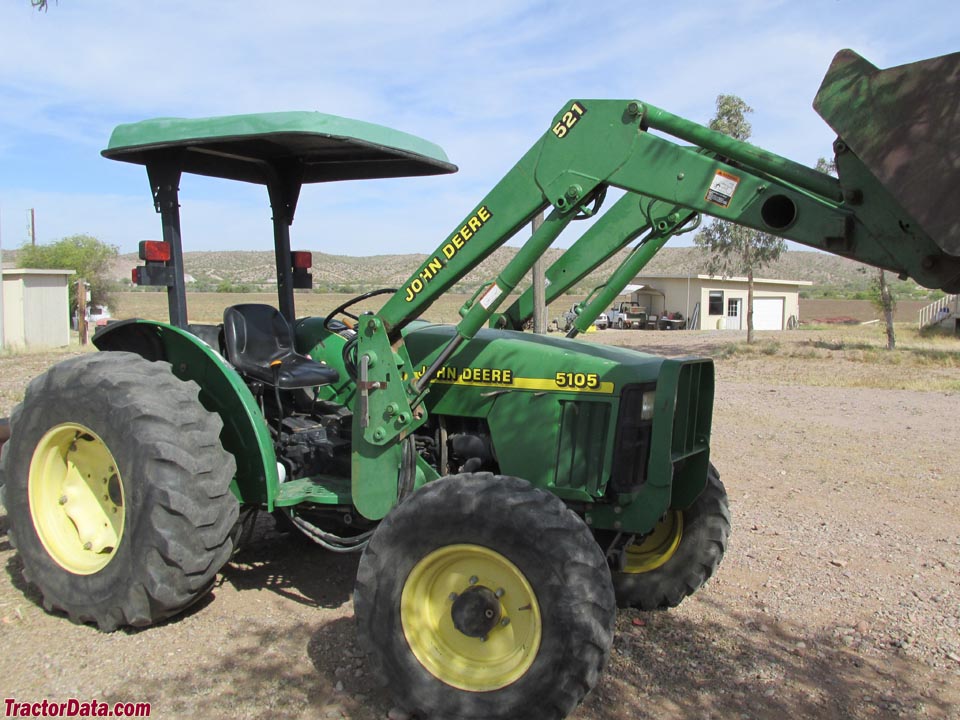

John Deere 5105 attachments
front-end loaderReference
5105 Serial Numbers
Location:On the right side of the 5105 tractor frame, above the front axle.Reference
2000110001Reference
2001210001Reference
2002310001Reference
2003410001Reference
2004510001Reference
2005610001Reference
2006710001Reference
2007810001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA700 (early)Reference
Battery CCA950 (late)Reference
Battery volts12Reference
Battery Group28HReference
John Deere 5105 Height
Hood130 cmReference
ROPS229 cmReference
Height (Folded ROPS)189 cmReference
Test results
NTTL 1770: diesel 8-speed 4WDReference
NTTL 1838: diesel 8-speed 2WDReference
Diesel 8-speed 4WDMay 2 - 17, 2000Link: Nebraska Tractor Test 1770 fileReference
PTO performanceReference
Fuel use9.1 l/hourReference
Diesel 8-speed 2WDMay 26 - 27, 2004Link: Nebraska Tractor Test 1838 fileReference
Fuel use10.6 l/hourReference
Speeds
With 14.9-28 rear tires.Reference
