Tractor · 2008Unverified

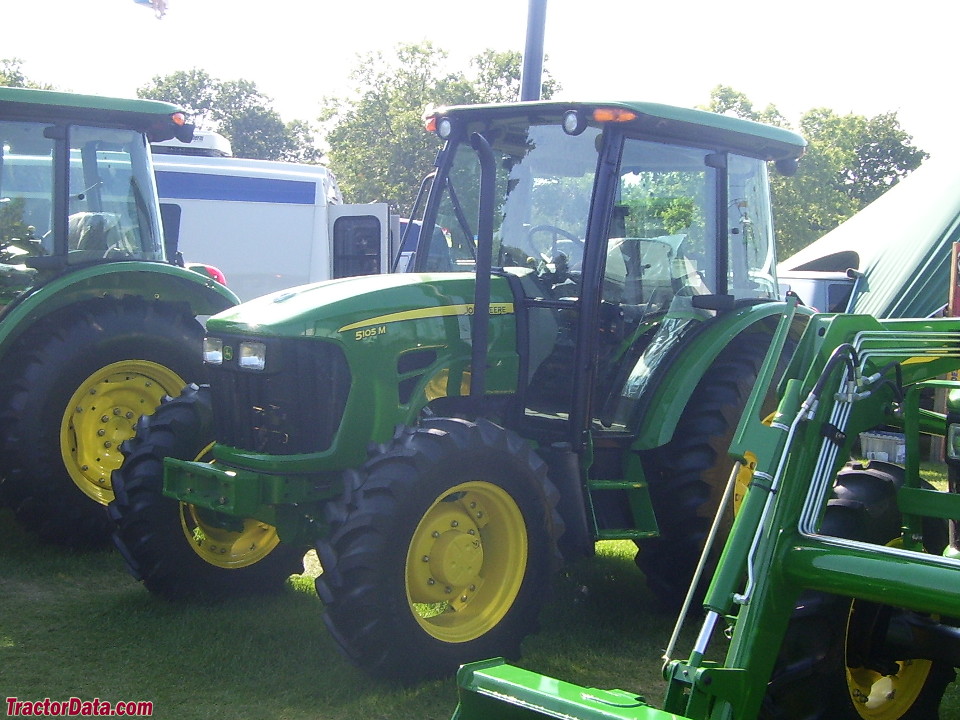

John Deere 5105M
John Deere 5105M — 5M Series · 82 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
82 hp
Weight
7300 to 8400 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Augusta, Georgia, USAReference
Original price$49,984 (2009 ROPS)Reference
Original price$60,653 (2009 cab)Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockshift-on-the-move electro-hydraulic rear differential lockReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Foldable ROPS. Optional deluxe ROPS with upgraded seat. Optional cab with heat and air conditioning.Reference
Variants
5105MLlow-profileReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine78.3 kWReference
John Deere PowerTech E 4045Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier 3Reference
Power78.3 kWReference
Air cleanerdryReference
Rated RPM2200Reference
Torque569.5 NmReference
Torque RPM1400Reference
Starter volts12Reference
Coolant capacity11.4 LReference
Oil capacity8.3 LReference
Power at rated engine speed60.8 kWReference
Transmission
16-speed partially synchronizedReference
12-speed partially synchronizedReference
16-speed partially synchronized with power shuttleReference
32-speedReference
TransmissionSyncReverserReference
Typepartially synchronizedReference
Gears16 forward and reverseReference
Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Synchronized shuttle shift with reverser lever, or speed change with speed shift lever, while moving using the clutch. Tractor must be stopped to change ranges.Reference
TransmissionSyncShuttle PlusReference
Gears12 forward and 4 reverseReference
Operated via two levers and foot clutch. Speed shift lever selects three forward gears or reverse. Range shift lever selects one of four ranges. Synchronized shuttle shift or speed change shift while moving using the clutch. Tractor must be stopped to change range.Reference
TransmissionPowrReverserReference
Typepartially synchronized with power shuttleReference
Operated via three levers and foot clutch. The speed shift lever selects one of four speeds. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.Reference
TransmissionPowrReverser PlusReference
Gears32 forward and 16 reverseReference
Operated via three levers and foot clutch plus push button. The speed shift lever selects one of four speeds plus a push-button high or low selection. The range shift lever selects one of four ranges. Reverser lever selects direction of travel. Clutchless power shift between forward and reverse using reverser lever. Synchronized speed change while moving using the speed shift lever with the clutch. Tractor must be stopped to change ranges.Reference
PTO & Hydraulics
PTO (claimed)67.1 kWReference
PTO (tested)60.8 kWReference
Hydraulic system45.0 LReference
Typeopen centerReference
Capacity45.0 LReference
Pressure195.0 barReference
Valves0 to 3Reference
Pump flow69.6 lpmReference
Total flow93.5 lpmReference
Oil type[-12o↔40oC]Reference
-10oF [-23oC]↑: HY-GARDReference
-10oF [-23oC]↑: JDM J20CReference
10o↔104oF [-12o↔40oC]: BIO HY-GARD JDM 20DReference
Steering flow23.8 lpmReference
Steering press.132.5 barReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)2040 kgReference
Rear PTOindependent electrohydraulicReference
Rear PTO Type540/540EReference
Rear PTO Type540/540E/1000 (optional)Reference
Power at rated PTO speed68.0 kWReference
Capacities
Fuel114.7 LReference
Fuel154.0 LReference
Front hubs0.8 LReference
Front diff.5.0 LReference
Dimensions
Wheelbase217 cmReference
Weight7300 to 8400 poundsReference
Front tire12.4R24Reference
Rear tire480/80R30Reference
Ag front12.4R24Reference
Ag rear480/80R30Reference
Ag front9.5-24Reference
Ag front11.2-24Reference
Ag front11.2R24Reference
Ag front13.6R24Reference
Ag front230/95R32Reference
Ag rear14.9-28Reference
Ag rear16.9-28Reference
Ag rear16.9-30Reference
Ag rear420/90R30Reference
Ag rear15.5R38Reference
Ag rear16.9R34Reference
Ag rear230/95R48Reference
Lawn/turf front12LL-16Reference
Lawn/turf front44x18-20Reference
Lawn/turf rear22.5LL-16Reference
Lawn/turf rear23.1-26Reference
Industrial front12.5/80-18Reference
Industrial rear19.5L-24Reference
Industrial rear16.9-24Reference
Ground clearance45 cmReference
Ground clearance47 cmReference
Front tread134 to 190 cmReference
Rear tread134 to 205 cmReference
3311 kgReference
3492 kgReference
3810 kgReference
John Deere 5105M attachments
front-end loaderReference
5105M Serial Numbers
Location:Tractor frame on front left side.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70 (ROPS)Reference
Charging amps90 (cab)Reference
Charging amps120 (optional)Reference
Battery CCA925Reference
Battery volts12Reference
Battery Group31Reference
Attachment overview
John Deere 553 loaderReference
John Deere 563 loaderReference
Test results
Diesel 32-speed 4WDSeptember 23 - October 6, 2009Link: Nebraska Tractor Test 1962 fileReference
PTO performanceReference
Fuel use20.1 l/hourReference
Fuel use22.0 l/hourReference
Speeds
With 16.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
