Tractor · 2008Unverified

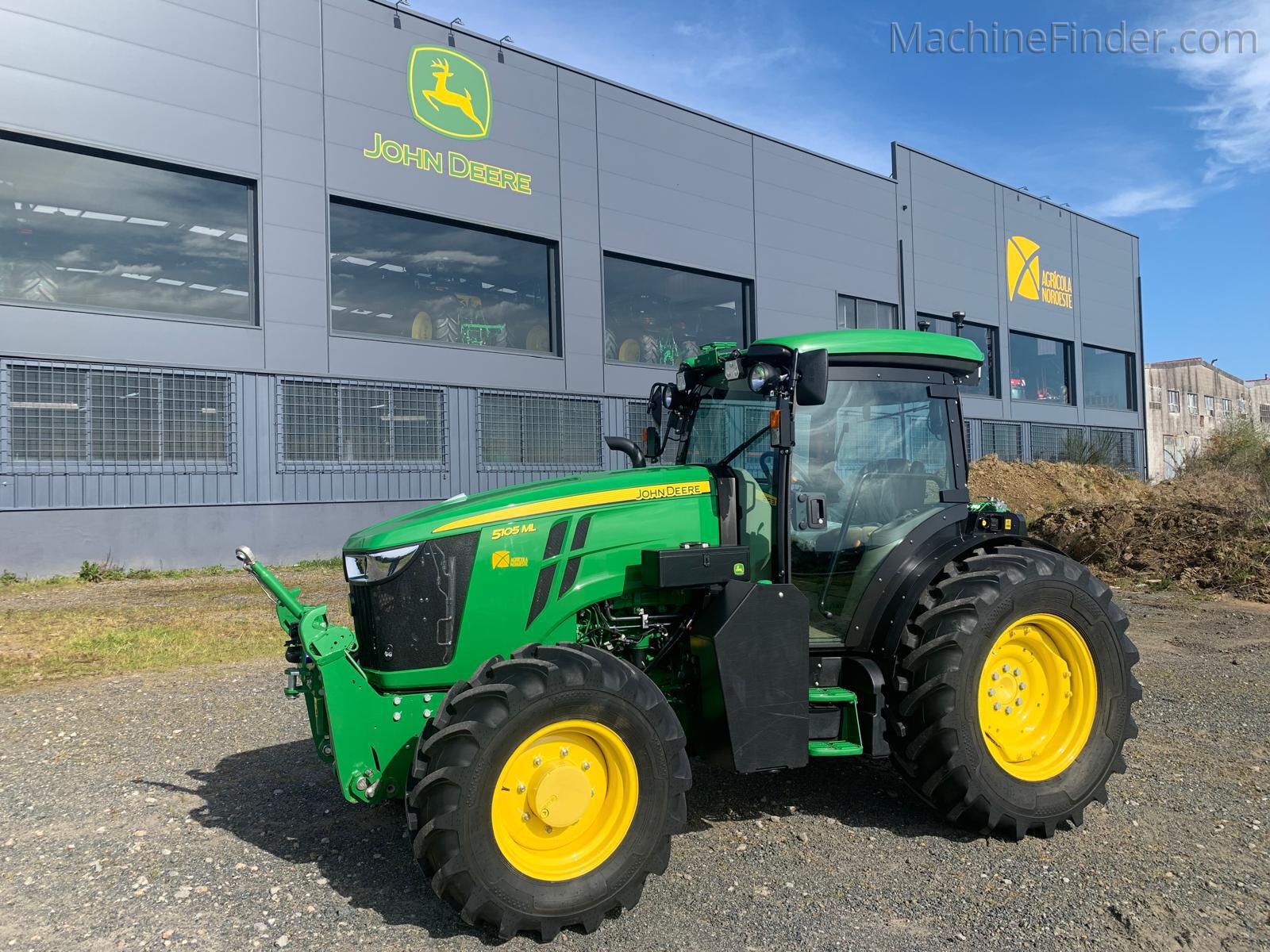

John Deere 5105ML
John Deere 5105ML — Orchard/Vineyard tractor · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
7300 to 7700 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Orchard/Vineyard tractorReference
Built in Augusta, Georgia, USAReference
Original price$46,516 (2010)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Folding ROPS.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (gross)78.3 kWReference
John Deere PowerTech E 4045Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooled vertical inlineReference
Displacement4.5 LReference
EmissionsTier IIIReference
Rated Power (gross)78.3 kWReference
Rated RPM2100Reference
Idle RPM900-2300Reference
Starter volts12Reference
Oil capacity12.9 LReference
Coolant capacity13.6 LReference
Transmission
12-speed partially synchronizedReference
16-speed partially synchronized power shuttleReference
TransmissionJohn Deere SyncShuttle PlusReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
ClutchwetReference
Oil capacity39.7 LReference
Three speeds (1-3) plus reverse (R) in four ranges (A-D). Synchronized speed and directional shifting using the foot clutch. Tractor must be stopped to shift ranges.Reference
TransmissionJohn Deere PowrReverserReference
Typepartially synchronized power shuttleReference
Gears16 forward and reverseReference
Four speeds (1-4) in four ranges (A-D) with left-hand reverser lever. Power shuttle shifting using reverser lever. Speed shifts are synchronized using the foot clutch. Tractor must be stopped to shift ranges.Reference
PTO & Hydraulics
PTO (claimed)67.1 kWReference
Hydraulic system53.0 LReference
Typeopen centerReference
Capacity53.0 LReference
Rear valves2 to 3Reference
Mid valves0 to 2Reference
Pump flow69.6 lpmReference
Total flow93.5 lpmReference
Steering flow23.8 lpmReference
Rear Type2/1Reference
Rear lift2040 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/540EReference
Capacities
Fuel109.8 LReference
Front hubs0.8 LReference
Front diff.5.0 LReference
Dimensions
Wheelbase220 cmReference
Weight7300 to 7700 poundsReference
Front tire11L-15Reference
Rear tire16.9-30Reference
Ag front11L-15 (2WD)Reference
Ag front11.2-24 (4WD)Reference
Ag rear16.9-30Reference
Lawn/turf front27/12LL-15 (2WD)Reference
Lawn/turf front9.5-16 (4WD)Reference
Lawn/turf rear21.5L-16.1Reference
Industrial front11LL-15 (2WD)Reference
Industrial front12.5/80-18 (4WD)Reference
Industrial rear16.9-30Reference
Width213 cmReference
Height (ROPS)256 cmReference
Weight3311 kgReference
Weight3492 kgReference
Clearance (front axle)35 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging volts70Reference
Battery CCA925Reference
Battery volts12Reference
Battery AH180Reference
Battery Group31Reference
Speeds
With 16.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
