Backhoe Loader · 1991Unverified

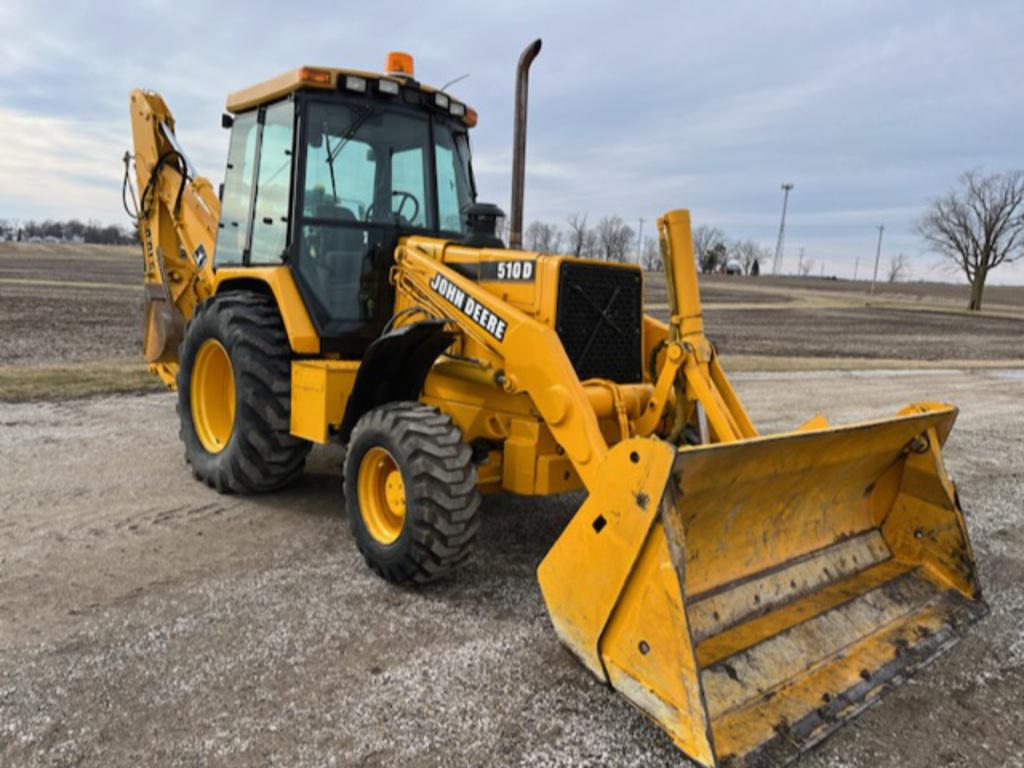

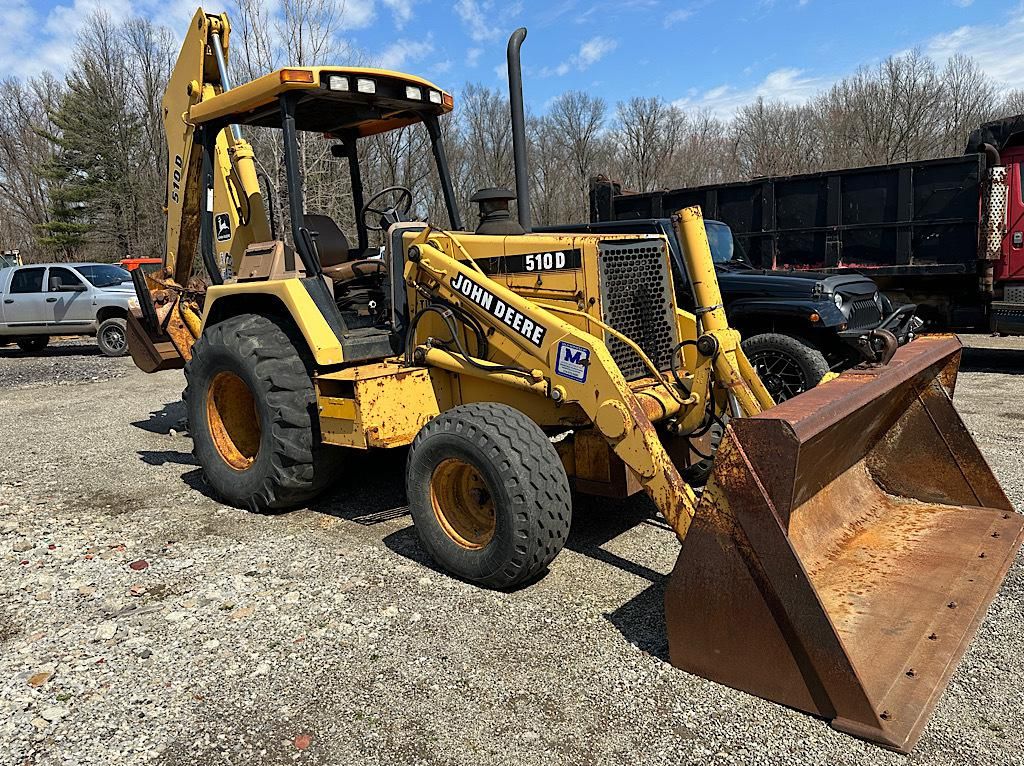

John Deere 510D

Name: John Deere 510D
Brand: John Deere

John Deere 510D — Backhoe loader tractor · 100 hp. Reference specifications; pending source verification.

The John Deere 510D is a backhoe loader model with a rating of 100 hp, positioning it among the higher-powered machines in its class. Manufactured from 1991 to 1996, the machine is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system through a 4-speed gearbox. The listed weight of the John Deere 510D is between 16000 and 18000 pounds. It is designed for workloads of approximately 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

100 hp

Weight

16000 to 18000 pounds

Catalogue coverage

Variants represented

Richest spec table

91 rows

Recorded power

100 hp

Recorded weight

7257 kg

Transmissions

4-speed power shuttle

Production years

1991-1996

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Backhoe loader tractorReference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Power steeringReference

Hydraulic wet disc brakesReference

Four-post ROPS/FOPS. Cab available cab with optional air-conditioning.Reference

Engine

John Deere 4.5L 4-cyl dieselReference

Engine (gross)74.6 kWReference

Engine70.8 kWReference

John Deere 4045TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

Power70.8 kWReference

Power (gross)74.6 kWReference

Air cleanerdual stage dry with precleanerReference

Rated RPM2200Reference

Torque363.4 NmReference

Torque RPM1300Reference

Starter volts12Reference

Oil capacity8.5 LReference

Coolant capacity16.1 LReference

Transmission

4-speed power shuttleReference

Typepower shuttleReference

Gears4 forward and reverseReference

Four synchronized gears with hydraulic reverser.Reference

Capacities

Fuel128.7 LReference

PTO & Hydraulics

Hydraulic system79.5 LReference

Typeclosed centerReference

Capacity79.5 LReference

Pressure190.0 barReference

Total flow132.5 lpmReference

Dimensions

Wheelbase210 cmReference

Weight16000 to 18000 poundsReference

Front tire11L-16Reference

Rear tire19.5L-24Reference

Industrial front11L-16 (2WD)Reference

Industrial front12.00-16.5 (4WD)Reference

Industrial rear19.5L-24 (2WD)Reference

Industrial rear21L-24 (4WD)Reference

Industrial front14.5/75-16.1Reference

Industrial front14.00-17.5Reference

Industrial rear18.4-28LReference

Length711 cmReference

Width218 cmReference

Height (ROPS)279 cmReference

Height (backhoe)375 cmReference

Operating weight7257 kgReference

Operating weight8164 kgReference

Backhoe & Loader

Dig depth607 cmReference

Dump angle114 cmReference

510D Serial Numbers

Location:Serial number plate on the left side, above the fuel tank.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps95Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

John Deere 510D Backhoe

Backhoe typeJohn Deere 510D BackhoeReference

Transport height375 cmReference

Digging depth607 cmReference

2-Foot flat digging depth502 cmReference

8-Foot flat digging depth474 cmReference

Reach from pivot607 cmReference

Loading height383 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force5034 kgReference

Dipperstick force3447 kgReference

John Deere Extendable Backhoe

Backhoe typeJohn Deere Extendable BackhoeReference

Transport height408 cmReference

Digging depth (retracted stick)586 cmReference

Digging depth (extended stick)728 cmReference

2-Foot flat digging depth (retracted stick)485 cmReference

2-Foot flat digging depth (extended stick)629 cmReference

8-Foot flat digging depth (retracted stick)452 cmReference

8-Foot flat digging depth (extended stick)609 cmReference

Reach from pivot (retracted stick)586 cmReference

Reach from pivot (extended stick)728 cmReference

Loading height (retracted stick)368 cmReference

Loading height (extended stick)457 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force (retracted stick)5093 kgReference

Bucket force (extended stick)5093 kgReference

Dipperstick force (retracted stick)3805 kgReference

Dipperstick force (extended stick)2463 kgReference

Speeds

With 21L-24 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
