Tractor · 2012Unverified

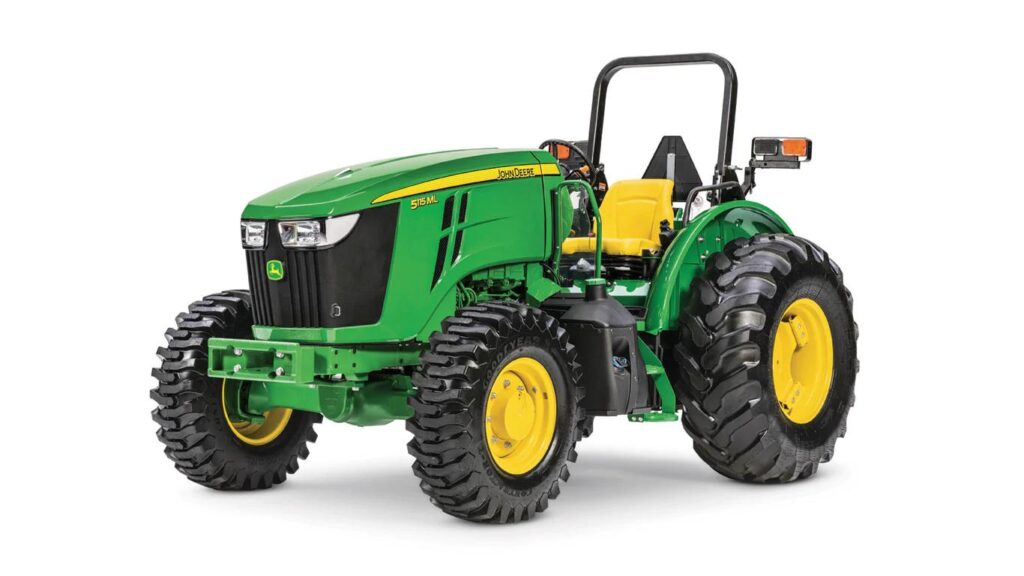

John Deere 5115ML
John Deere 5115ML — Model year 2012-20142015-2025 · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Weight
3606 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Orchard/Vineyard tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (gross)85.8 kWReference
John DeereReference
turbocharged aftercooled dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Emission controlInterim Tier IVReference
Rated Power (gross)85.8 kWReference
Rated RPM2200Reference
Idle RPM900-2300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity12.9 LReference
Coolant capacity18.9 LReference
Transmission
16-speedReference
TransmissionPowrReverserReference
Gears16 forward and reverseReference
Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. Gear shifts and ranges C/D shifts are synchronized. Power shuttle shifting.Reference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
Hydraulic system53.0 LReference
Typeopen centerReference
Capacity53.0 LReference
Pressure200.0 barReference
Valves3 to 5Reference
SCV flow69.6 lpmReference
Total flow93.5 lpmReference
Steering flow23.8 lpmReference
Steering press.134.5 barReference
Rear TypeIIReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540EReference
Engine RPM540@2100Reference
Engine RPM540E@1645Reference
Capacities
Fuel151.4 LReference
Dimensions
Wheelbase230 cmReference
Weight3606 kgReference
Width213 cmReference
Height (ROPS)226 cmReference
Shipping weight3606 kgReference
Clearance (front axle)35 cmReference
5115ML Serial Numbers
Location:Serial number plate on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Charging amps120Reference
Battery CCA950Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
