Tractor · 2017Unverified

John Deere 5125R

Name: John Deere 5125R
Brand: John Deere

John Deere 5125R — 5R Series · 125 hp. Reference specifications; pending source verification.

The John Deere 5125R is a tractor with a rated output of 125 horsepower, positioning it within the higher-powered machines in its category. It was manufactured in 2017. The tractor is powered by a 4-cylinder turbocharged diesel liquid-cooled engine, which drives four-wheel drive through a powershift transmission. Its listed weight is 4300 kilograms, suitable for applications involving approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

125 hp

Weight

4300 kg

Catalogue coverage

Variants represented

Richest spec table

85 rows

Recorded power

125 hp

Recorded weight

4300 kg

Transmissions

16-speed four-speed power shift

Production years

2017-2017

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Augusta, Georgia, USAReference

Original price was $104,048 in 2021Reference

Four-wheel driveReference

Differential lockelectro-hydraulic rearReference

Differential locklimited-slip frontReference

Differential lockelectro-hydraulic frontReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulicReference

Trailer brakespneumaticReference

Cab standard standard with air-conditioning. Optional panorama roof and mechanical suspension.Reference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank177.9 LReference

Engine (gross)93.2 kWReference

Engine (max)100.7 kWReference

John Deere PowerTech PWXReference

wastegate turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

EmissionsStage IIIBReference

Emission controlexhaust-gas recirculation, diesel oxidation catalyst, and diesel particulate filterReference

Rated Power (gross)93.2 kWReference

Maximum Power (gross)100.7 kWReference

Fuel systemelectronic high-pressure common railReference

Rated RPM2200Reference

Operating RPM1650-2200Reference

Torque534.1 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speed four-speed power shiftReference

32-speed eight-speed power shiftReference

TransmissionCommandQuadReference

Typefour-speed power shiftReference

Gears16 forward and reverseReference

Four power-shift gears (1-4) in four synchronized ranges (A-D) with power shuttle.Reference

TransmissionCommand8Reference

Typeeight-speed power shiftReference

Gears32 forward and 16 reverseReference

Eight power-shift gears (1-8) in four ranges (A-D) with power shuttle.Reference

PTO & Hydraulics

Typeopen centerReference

Typeload-sensing pressure-flow compensatedReference

Rear valves4Reference

Mid valves3Reference

Pump flow96.1 lpmReference

Pump flow117.0 lpmReference

Rear TypeIIReference

Controlelectronic lower-link draft sensingReference

Rear lift (at 24"/610mm)2753 kgReference

Rear lift (at 24"/610mm)3080 kgReference

Front HitchIIReference

Front lift (at ends)2854 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/540E/1000 (1.375)Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@2000Reference

Dimensions

Wheelbase225 cmReference

Weight4300 kgReference

Front tire480/65R24Reference

Rear tire540/65R38Reference

Standard tires (ag)Front: 480/65R24. Rear: 540/65R38Reference

Length365 cmReference

Width215 cmReference

Height269 cmReference

Shipping weight4300 kgReference

Max weight8600 kgReference

Front axle4WDReference

Front axleSuspended 4WDReference

Flange rear axleReference

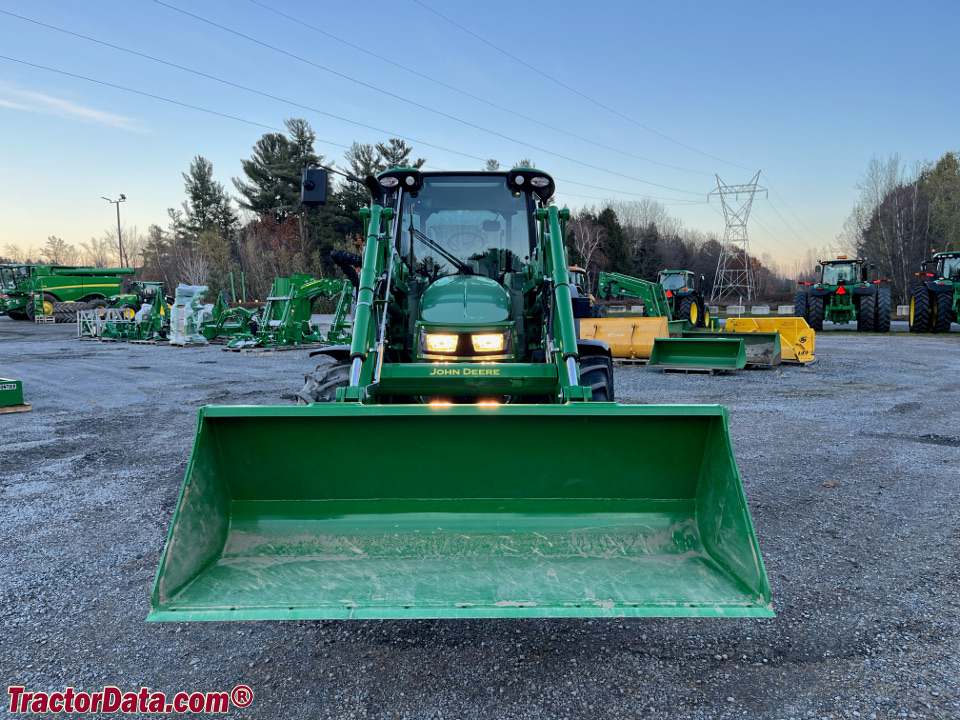

John Deere 5125R attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Battery CCA550Reference

Battery volts12Reference

Attachment overview

John Deere 543R NSL loaderReference

John Deere 603RNSL loaderReference

John Deere 603R MSL loaderReference

John Deere 603R HSL loaderReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
