Tractor · 2022Unverified

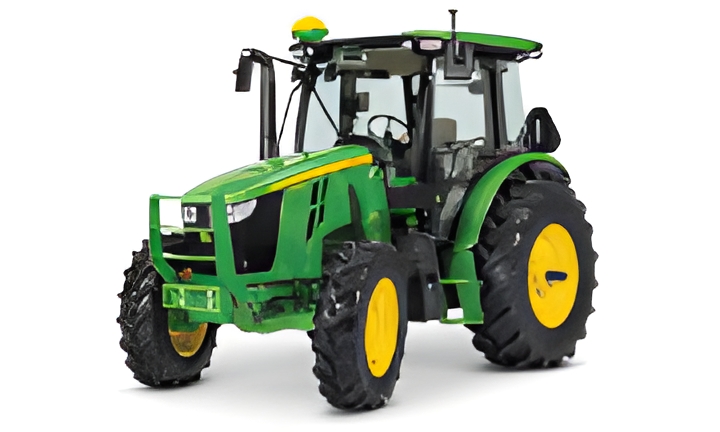

John Deere 5130M
John Deere 5130M — 5M Series · 134 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
134 hp
Weight
4166 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Pune, IndiaReference
Original price was $110,745 in 2023Reference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Cab standard with air-conditioning.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank165.4 LReference
Exhaust fluid (DEF)12.0 LReference
Engine96.9 kWReference
Engine (max)99.8 kWReference
John Deere 4045 EWLReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier IVReference
Power96.9 kWReference
Maximum Power99.8 kWReference
Rated RPM2200Reference
Torque541.0 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed 4-speed power shiftReference
32-speed 8-speed power shiftReference
TransmissionPowrQuad PLUSReference
Type4-speed power shiftReference
Gears16 forward and reverseReference
Four power shift gears in four ranges.Reference
TransmissionPowr8Reference
Type8-speed power shiftReference
Gears32 forward and 16 reverseReference
Eight power shift gears in three ranges. Four gears in reverse.Reference
PTO & Hydraulics
PTO (claimed)85.8 kWReference
Typeopen centerReference
Rear valves2 or 3Reference
Mid valves2 or 3Reference
Pump flow96.9 lpmReference
SCV flow73.1 lpmReference
Rear TypeII/IReference
Controlposition control and lower-link draft sensingReference
Rear lift3163 kgReference
Rear lift3568 kgReference
Front HitchII/IReference
Front lift1930 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2100Reference
Engine RPM540E@1645Reference
Engine RPM1000@2100Reference
Dimensions
Wheelbase234 cmReference
Weight4166 kgReference
Front tire12.4R24Reference
Rear tire18.4R30Reference
Standard tires (ag)Front: 12.4R24. Rear: 18.4R30Reference
Length408 cmReference
Shipping weight4166 kgReference
Max Drawbar1450 kgReference
Front tread129 to 199 cmReference
Rear tread134 to 228 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging amps200Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
