Tractor · 1992Unverified

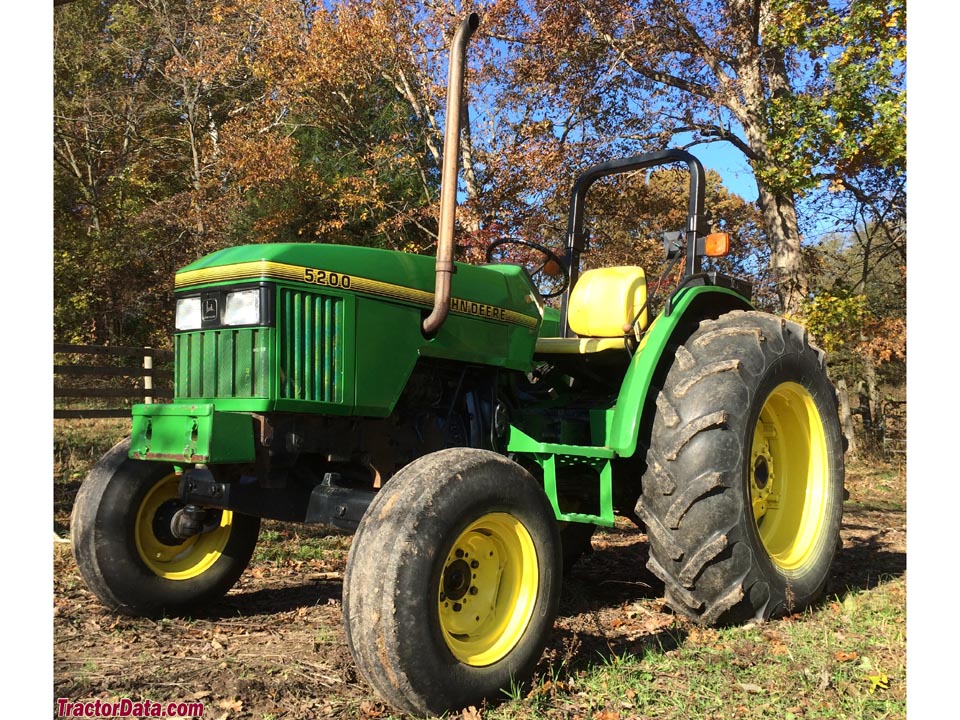

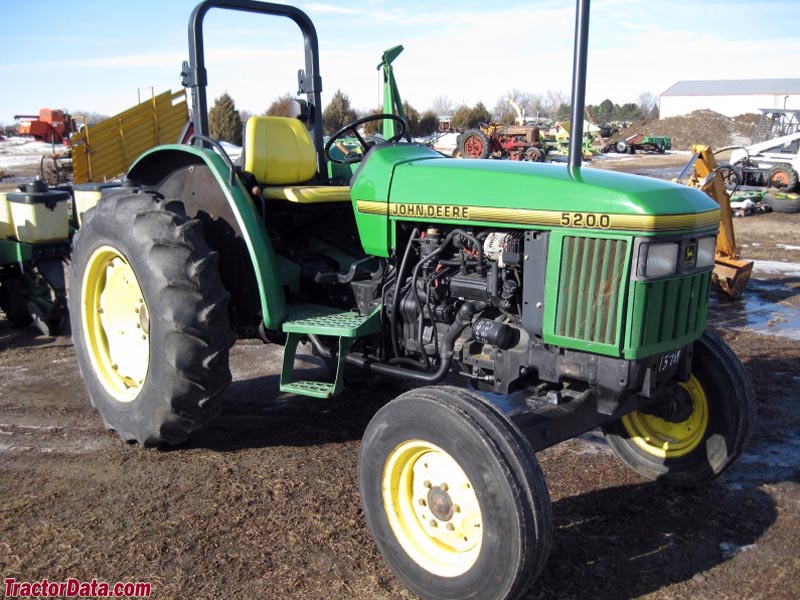

John Deere 5200
John Deere 5200 — Utility tractor · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Max power
31.2 kW
Weight
4370 to 5630 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Augusta, Georgia, USAReference
Original price was $20,000 in 1997Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
Engine (gross)34.0 kWReference
Drawbar (tested)26.7 kWReference
John DeereReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power (gross)34.0 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elementsReference
Pre-heatingthermostartReference
Compression17.8:1Reference
Rated RPM2400Reference
Operating RPM1600-2400Reference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity9.5 LReference
Max power31.2 kWReference
Power at rated engine speed30.7 kWReference
Max power26.7 kWReference
Transmission
9-speed unsynchronized gearReference
9-speed partially synchronizedReference
12-speed power shuttleReference
TransmissionJohn Deere Collar ShiftReference
Typeunsynchronized gearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Three gears (1-3), plus reverse, with three ranges (A-C). Tractor must be stopped, and clutch used, to shift gear or range.Reference
TransmissionJohn Deere Top-Shaft SynchronizedReference
Typepartially synchronizedReference
Three gears (1-3), plus reverse, in three ranges (A-C). Gear shifts are synchronized using the clutch. Tractor must be stopped to shift range.Reference
TransmissionJohn Deere TSS ReverserReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
Four gears (1-4) in three ranges (A-C) with left-hand reverser lever.Reference
PTO & Hydraulics
PTO (claimed)29.8 kWReference
PTO (tested)31.2 kWReference
Hydraulic system37.9 LReference
Typeopen centerReference
Capacity37.9 LReference
Pressure189.6 barReference
Valves1 to 3Reference
Pump flow43.1 lpmReference
Total flow68.9 lpmReference
Steering flow25.7 lpmReference
Rear TypeII/IReference
Controlposition control with top-link draft sensingReference
Rear lift (at 24"/610mm)1530 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@2400Reference
Capacities
ROPS Fuel68.1 LReference
Cab Fuel83.3 LReference
Dimensions
Wheelbase204 cmReference
Weight4370 to 5630 poundsReference
Front tire6.50-16Reference
2WD Rear tire13.6-28Reference
Weight720 kgReference
2WD Standard tires (ag)Front: 6.50-16. Rear: 13.6-28Reference
4WD Standard tires (ag)Front: 8.3-24. Rear: 13.6-28Reference
2WD Lawn/turf front27/9.5-15Reference
4WD Lawn/turf front9.5-16Reference
Lawn/turf rear21.5L-16.1Reference
4WD Lawn/turf front12LL-16Reference
Lawn/turf rear22.5LL-16.1Reference
2WD Length308 cmReference
4WD Length319 cmReference
Width176 cmReference
2WD Clearance (front axle)45 cmReference
4WD Clearance (front axle)40 cmReference
2WD Clearance (drawbar)38 cmReference
4WD Clearance (drawbar)37 cmReference
Flange rear axle1455 mmReference
2WD Front tread143 to 193 cmReference
4WD Front tread131 to 198 cmReference
Rear tread131 to 202 cmReference
2WD ROPS Shipping1982 kgReference
4WD ROPS Shipping2145 kgReference
2WD Cab Shipping2390 kgReference
4WD Cab Shipping2553 kgReference
4WD ROPS Operating2236 kgReference
2WD Max front axle3674 kgReference
4WD Max front axle3823 kgReference
Max rear axle5670 kgReference
2WD Steering wheel161 cmReference
4WD Steering wheel162 cmReference
John Deere 5200 attachments
front-end loaderReference
backhoeReference
5200 Serial Numbers
Location:On main right side of main tractor frame, near front axle.Reference
1992110000Reference
1993220000Reference
1994221268Reference
1995420141Reference
1996520001Reference
1997620000Reference
FAQ: How to read a serial number table.Reference
Links
Temperature sensor: potential cold-start advance sensor failure leading to a no-start conditionReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps40Reference
Cab Charging amps60Reference
Battery volts12Reference
Attachment overview
John Deere 520 loaderReference
John Deere 540 loaderReference
John Deere 540 MSL loaderReference
BackhoeReference
The model 520/522 loaders fit to tractors with two-wheel drive while the 540/542 were for tractors with four-wheel drive.Reference
John Deere 10A Backhoe
Backhoe typeJohn Deere 10A BackhoeReference
Transport height238 cmReference
Bucket width30 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width91 cmReference
Bucket width101 cmReference
2-Foot flat digging depth304 cmReference
Reach from pivot398 cmReference
Loading height256 cmReference
Bucket Rotation197°Reference
Swing Arc180°Reference
Bucket force2109 kgReference
Dipperstick force898 kgReference
John Deere 5200 Height
2WD Hood134 cmReference
4WD Hood136 cmReference
ROPS223 cmReference
Height (Folded ROPS)190 cmReference
Cab244 cmReference
Test results
Diesel 9-speed 4WDSeptember 17 - October 7, 1992Link: OCED Tractor Test 1660 fileReference
PTO performanceReference
Fuel use9.5 l/hourReference
Drawbar performanceReference
Fuel use9.8 l/hourReference
Max pull2341 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
