Tractor · 2003Unverified

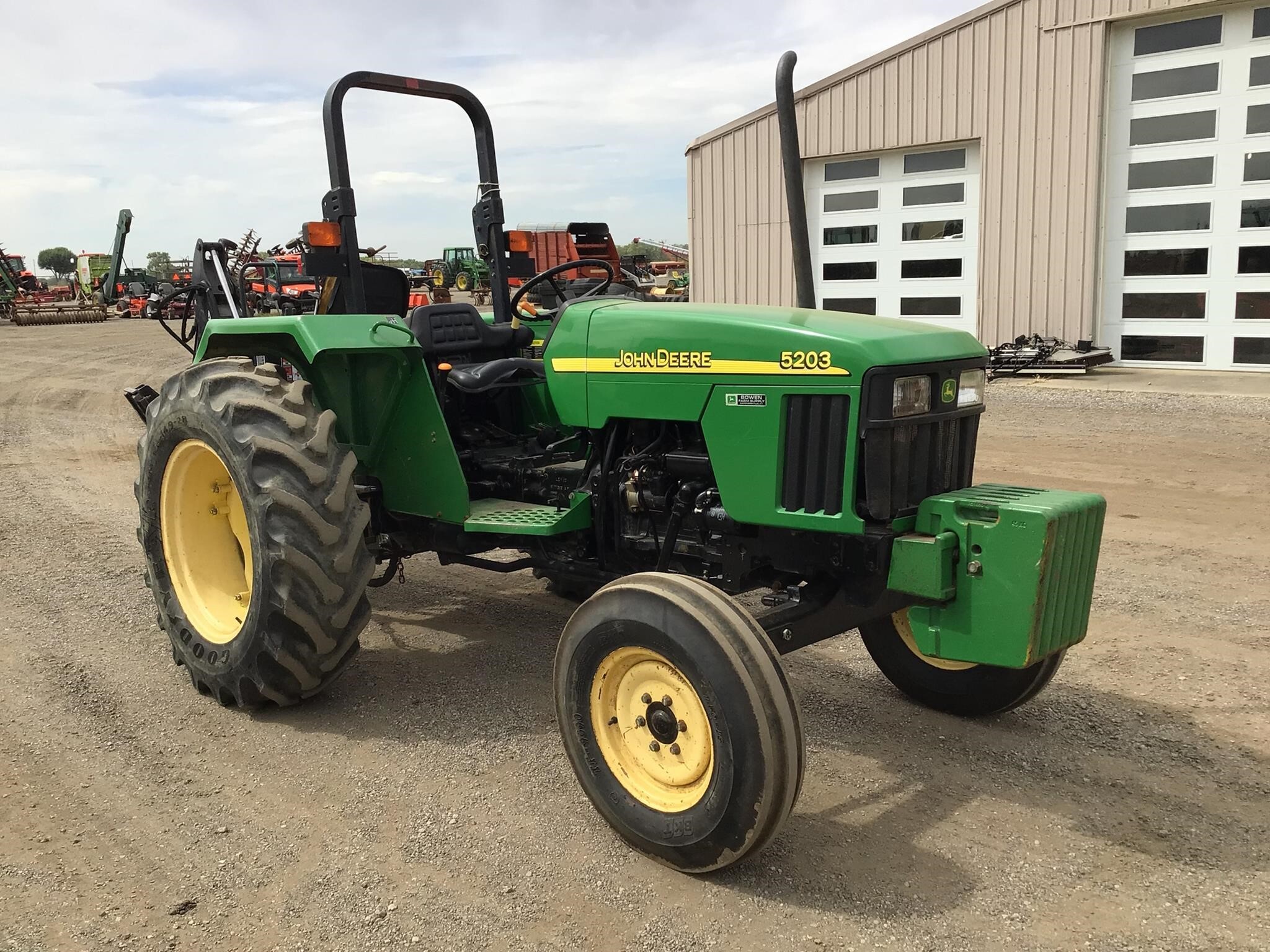

John Deere 5203S
John Deere 5203S · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
2039 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Built in Pune, Maharashtra, IndiaReference
Two-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Open operator station. ROPS optional.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
Fuel tank68.1 LReference
Engine37.3 kWReference
John DeereReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power37.3 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17.8:1Reference
Rated RPM2400Reference
Torque173.0 NmReference
Firing order1-2-3Reference
Starter volts12Reference
Starter power2.5 kWReference
Transmission
8-speed collar shift gearReference
Typecollar shift gearReference
Gears8 forward and 4 reverseReference
Four gears (1-4) in two ranges (A/B) plus reverse (R) range. Tractor must be stopped, and clutch used, to shift gear or range.Reference
PTO & Hydraulics
PTO (claimed)34.3 kWReference
Typeopen centerReference
Rear TypeIIReference
Rear lift (at ends)1650 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1762Reference
Dimensions
Wheelbase204 cmReference
Weight2039 kgReference
Front tire7.5x16Reference
Rear tire14.9x28Reference
Ag front7.5x16Reference
Ag front6.0x16Reference
Ag rear14.9x28Reference
Length350 cmReference
Width183 cmReference
Ground clearance44 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Battery AH88Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
