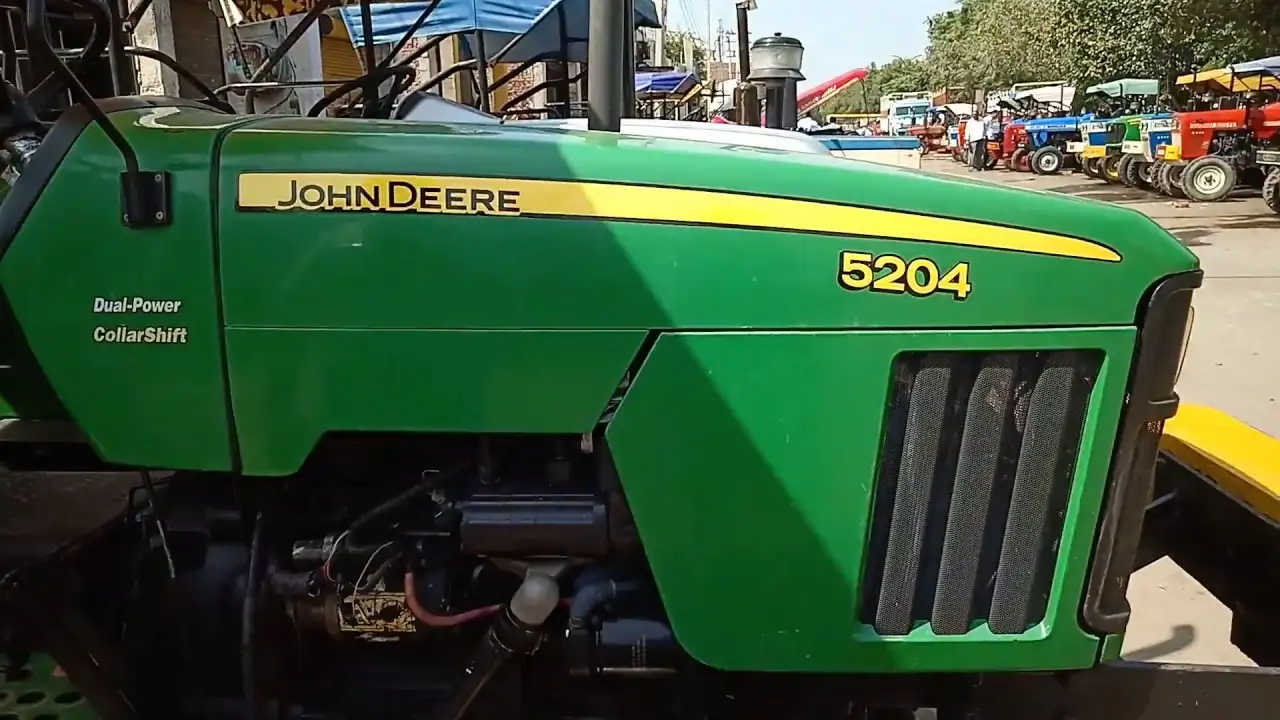

The John Deere 5204 is a compact tractor with a power rating of 50 hp. It was produced from 2007 to 2011. The tractor is equipped with a 3-cylinder diesel liquid-cooled engine and features two-wheel drive with an 8-speed gearbox. Its listed weight is 1824 kg, and it is suitable for tasks covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
1824 kg
Catalogue coverage
Variants represented
2
Richest spec table
46 rows
Recorded power
50 hp
Recorded weight
1824 kg
Transmissions
8-speed collar shift gear
Production years
2007-2011
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Built in Pune, Maharashtra, IndiaReference
Two-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Mechanical wet disc brakesReference
Open operator station. ROPS optional.Reference
Engine
John Deere 3-cyl dieselReference
Fuel tank62.1 LReference
Engine37.3 kWReference
John DeereReference
dieselReference
3-cylinderReference
liquid-cooledReference
Power37.3 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Rated RPM2300Reference
Starter volts12Reference
Starter power2.5 kWReference
Transmission
8-speed collar shift gearReference
Typecollar shift gearReference
Gears8 forward and 4 reverseReference
Four gears (1-4) in two ranges (A/B) plus reverse (R) range. Tractor must be stopped, and clutch used, to shift gear or range.Reference
PTO & Hydraulics
Typeopen centerReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)1549 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2200Reference
Dimensions
Wheelbase195 cmReference
Weight1824 kgReference
Front tire6.0x16Reference
Rear tire14.9x28Reference
Ag front6.0x16Reference
Ag front7.5x16Reference
Ag rear14.9x28Reference
Length336 cmReference
Width179 cmReference
Ground clearance41 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Battery AH88Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
