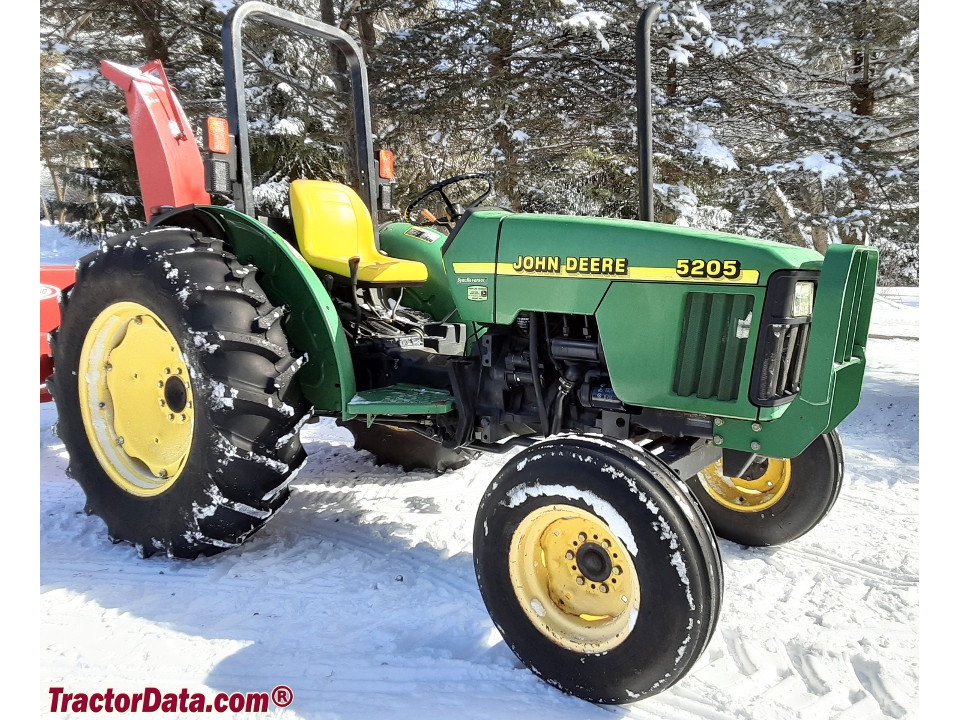

John Deere 5205
John Deere 5205 — Utility tractor · 49 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Weight
3850 to 4520 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Augusta, Georgia, USAReference
Two- or four-wheel driveReference
Power steeringReference
Differential mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
Engine39.5 kWReference
John Deere 3029DReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power39.5 kWReference
Power41.8 kWReference
Air cleanerdual dry elementReference
Compression17.4:1Reference
Rated RPM2300Reference
Idle RPM825-2500Reference
Operating RPM1400-2300Reference
Firing order1-2-3Reference
Starter volts12Reference
Coolant capacity9.5 LReference
Oil capacity7.5 LReference
Power at rated engine speed36.4 kWReference
Power at rated engine speed38.8 kWReference
Transmission
8-speed partially synchronizedReference
TransmissionSyncReverserReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Oil capacity32.2 LReference
Controlled with foot clutch, plus range speed levers. Four speeds and two forward ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift speed or range. Reverse range to forward A-range may be shifted while tractor tractor is in motion.Reference
PTO & Hydraulics
PTO (claimed)35.8 kWReference
PTO (claimed)37.3 kWReference
PTO (tested)38.8 kWReference
Hydraulic system32.2 LReference
Typeopen centerReference
Capacity32.2 LReference
Pressure193.1 barReference
Valves4Reference
Pump flow41.3 lpmReference
Total flow65.9 lpmReference
Steering flow24.6 lpmReference
Steering press.131.0 barReference
Rear TypeII/IReference
Controltop-link draft sensingReference
Rear lift (at 24"/610mm)1356 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2300Reference
Power at rated PTO speed36.2 kWReference
Power at rated PTO speed37.8 kWReference
Capacities
Fuel84.8 LReference
Dimensions
Wheelbase195 cmReference
Weight3850 to 4520 poundsReference
Front tire7.5-16Reference
2WD Rear tire14.9-28Reference
2WD Standard tires (ag)Front: 7.5-16. Rear: 14.9-28Reference
4WD Standard tires (ag)Front: 9.5-24. Rear: 14.9-28Reference
2WD Length276 cmReference
4WD Length326 cmReference
Width175 cmReference
Ground clearance42 cmReference
2WD Shipping1746 kgReference
4WD Shipping1939 kgReference
4WD ROPS Operating2050 kgReference
Steering wheel155 cmReference
John Deere 5205 attachments
front-end loaderReference
5205 Serial Number Location
On the right side of the 5205 tractor frame, above the front axle.Reference
5205 Serial Numbers
2000120001Reference
2001220001Reference
2002320001Reference
2003420001Reference
2004520001Reference
2005620001Reference
2006720001Reference
2007820001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA700 (early)Reference
Battery CCA950 (late)Reference
Battery volts12Reference
Battery Group28HReference
John Deere 5205 Height
Hood130 cmReference
ROPS229 cmReference
Height (Folded ROPS)189 cmReference
Test results
NTTL 1771: diesel 8-speed 4WDReference
NTTL 1839: diesel 8-speed 4WDReference
Diesel 8-speed 4WDApril 27 - May 17, 2000Link: Nebraska Tractor Test 1771 fileReference
PTO performanceReference
Fuel use11.0 l/hourReference
Fuel use10.6 l/hourReference
Diesel 8-speed 4WDMay 25 - 27, 2004Link: Nebraska Tractor Test 1839 fileReference
Fuel use12.1 l/hourReference
Fuel use11.7 l/hourReference
Speeds
With 14.9-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
