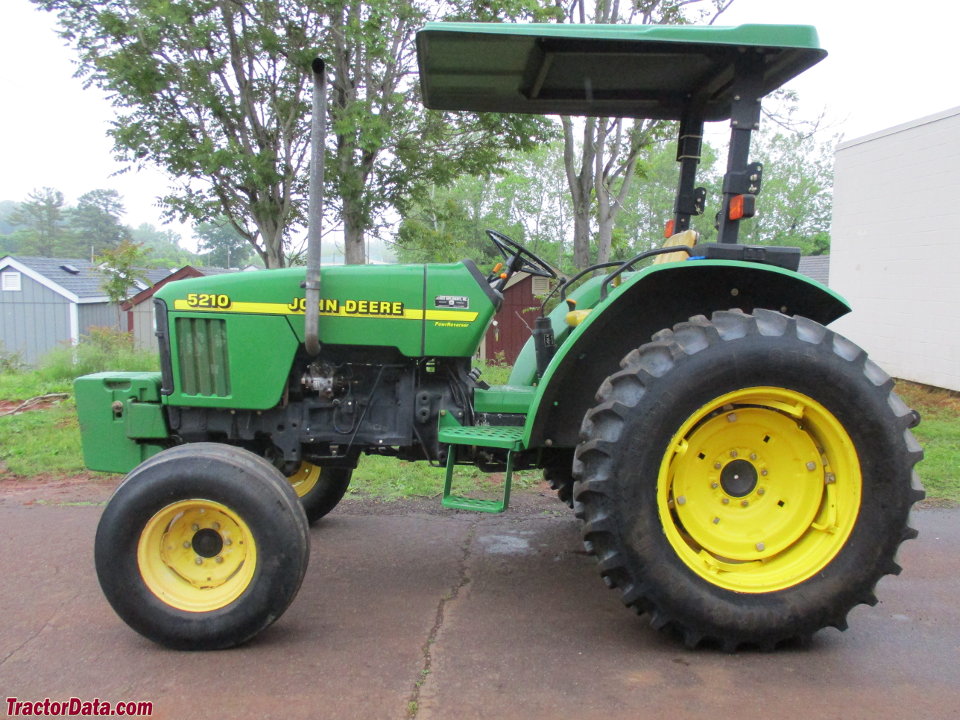

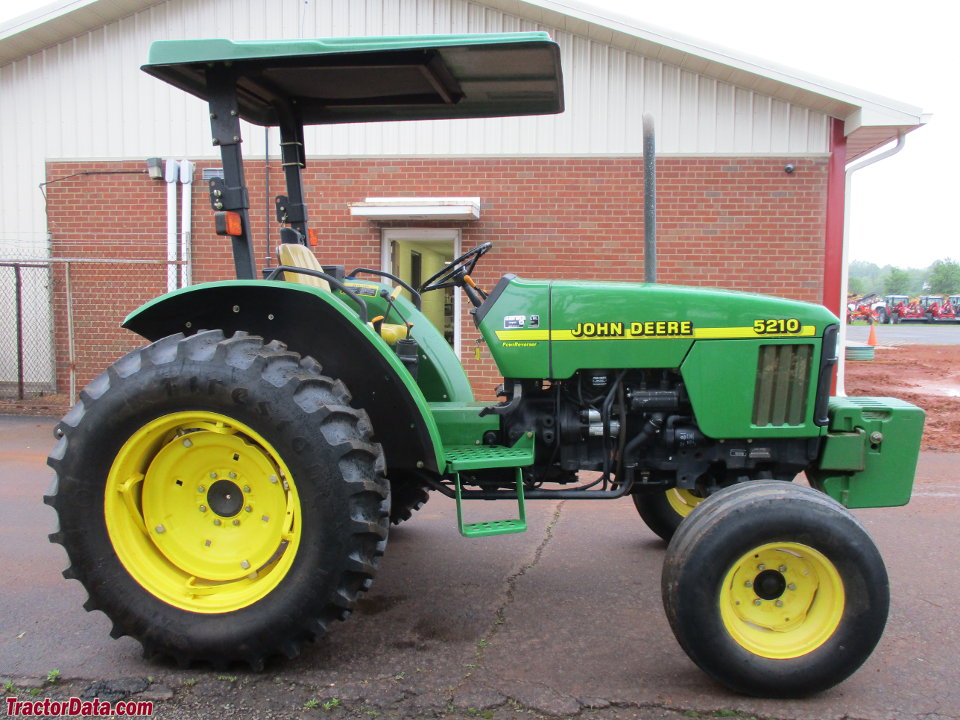

John Deere 5210
John Deere 5210 — Utility tractor · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
4205 to 5630 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Augusta, Georgia, USAReference
Original price was $21,795 in 2001Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
ROPS Fuel tank68.1 LReference
Cab Fuel tank87.1 LReference
Engine39.5 kWReference
John Deere 3029DReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power39.5 kWReference
Compression17.8:1Reference
Rated RPM2400Reference
Idle RPM825-2600Reference
Operating RPM1600-2400Reference
Torque162.0 NmReference
Torque RPM1400Reference
Firing order1-2-3Reference
Starter volts12Reference
Coolant capacity9.5 LReference
Coolant change2000 hReference
Oil capacity8.5 LReference
Oil change100 hReference
Power at rated engine speed34.4 kWReference
Transmission
9-speed unsynchronized gearReference
9-speed partially synchronizedReference
12-speed power shuttleReference
TransmissionCollarShiftReference
Typeunsynchronized gearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Oil capacity37.9 LReference
The Collar Shift transmission is controlled with two levers and the foot clutch. The right-hand lever selects one of three speeds (1-3) or reverse (R). The left-hand lever selects one of three ranges (A-C). The tractor must be stopped, and clutch used, to shift either speed or range.Reference
TransmissionSyncShuttleReference
Typepartially synchronizedReference
Three speeds (1-3) plus reverse (R) in three ranges (A-C). Synchronized shifting, using the clutch, between the three forward speeds and reverse. Tractor must be stopped, and clutch used, to shift range.Reference
TransmissionPowrReverserReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
Oil capacity43.5 LReference
Four speeds (1-4) in three ranges (A-C) with forward-reverse shuttle lever. Direction changes may be done while moving using the left-hand shuttle lever. Speed changes are synchronized using the clutch. Tractor must be stopped, and clutch used, to shift ranges. At tractor start-up, clutch pedal must be cycled once before tractor will move.Reference
PTO & Hydraulics
PTO (claimed)33.6 kWReference
PTO (tested)34.4 kWReference
Typeopen centerReference
Pressure196.9 barReference
Valves5Reference
Pump flow43.1 lpmReference
Total flow68.9 lpmReference
Steering flow25.7 lpmReference
Steering press.134.8 barReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1530 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/540EReference
Dimensions
Wheelbase204 cmReference
Weight4205 to 5630 poundsReference
Front tire6.50-16Reference
2WD Rear tire13.6-28Reference
Weight695 kgReference
2WD Standard tires (ag)Front: 6.50-16. Rear: 13.6-28Reference
4WD Standard tires (ag)Front: 8.3-24. Rear: 13.6-28Reference
2WD Length311 cmReference
4WD Length319 cmReference
Width166 cmReference
2WD Clearance (front axle)49 cmReference
4WD Clearance (front axle)34 cmReference
2WD Clearance (drawbar)40 cmReference
4WD Clearance (drawbar)37 cmReference
2WD Front tread143 to 193 cmReference
4WD Front tread131 to 198 cmReference
Rear tread141 to 192 cmReference
2WD ROPS Shipping1907 kgReference
2WD Cab Shipping2390 kgReference
4WD ROPS Shipping2109 kgReference
4WD Cab Shipping2553 kgReference
Max Drawbar759 kgReference
Steering wheel159 cmReference
John Deere 5210 attachments
front-end loaderReference
backhoeReference
5210 Serial Number Location
The tractor's serial number plate is on the right side of the frame, above the front axle.Reference
5210 Serial Numbers
1998120000Reference
1999220001Reference
2000320001Reference
2001420001Reference
FAQ: How to read a serial number table.Reference
Links
Temperature sensor: potential cold-start advance sensor failure leading to a no-start conditionReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps40Reference
Cab Charging amps60Reference
Battery CCA700Reference
Battery volts12Reference
ROPS Battery Group28HReference
Cab Battery Group31Reference

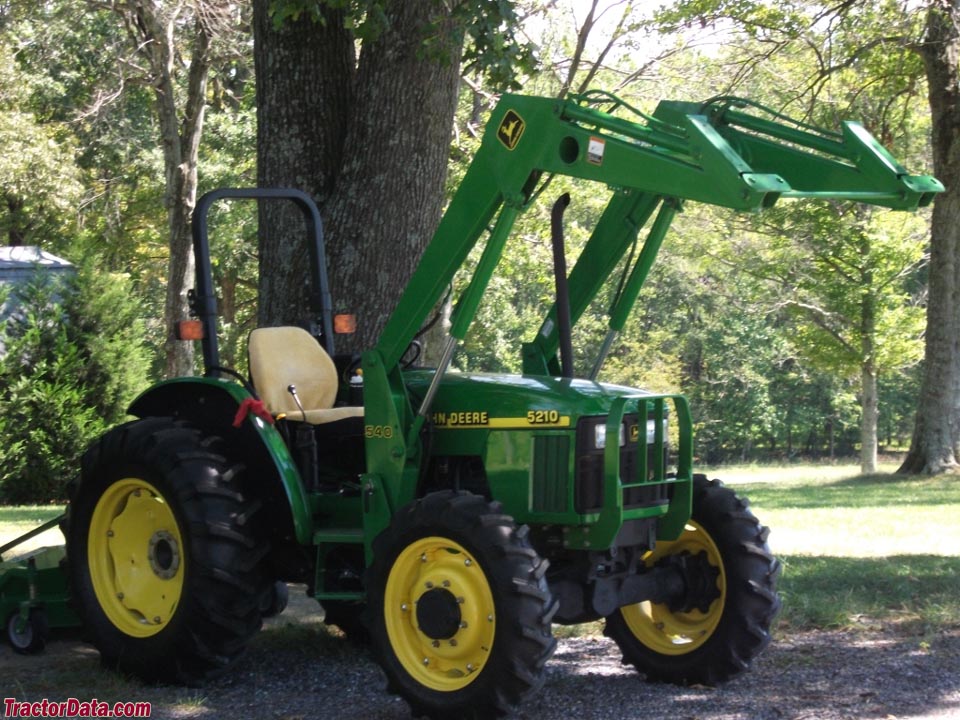

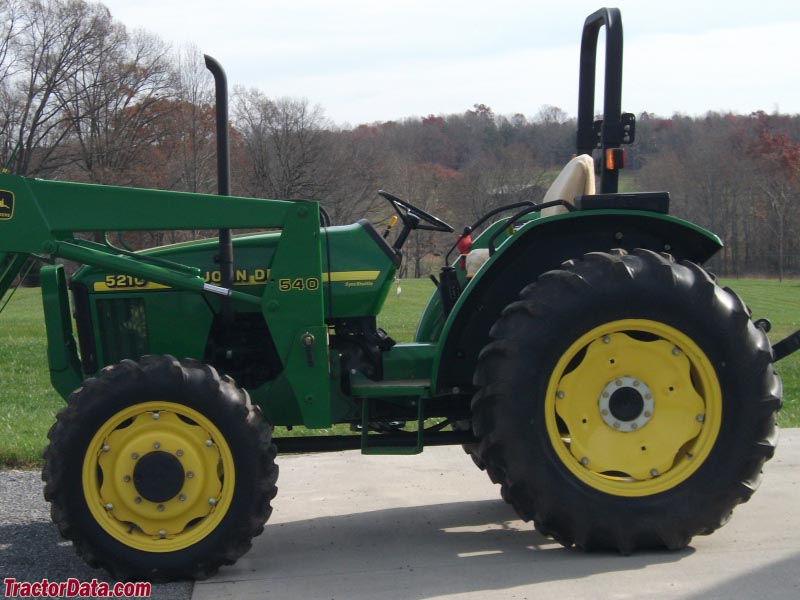

Attachment overview
John Deere 521 loaderReference
John Deere 541 loaderReference
John Deere 541 Self-Leveling loaderReference
BackhoeReference
John Deere 49 Backhoe
Backhoe typeJohn Deere 49 BackhoeReference
Transport height238 cmReference
2-Foot flat digging depth292 cmReference
Reach from pivot378 cmReference
Loading height233 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2075 kgReference
Dipperstick force1440 kgReference
John Deere 5210 Height
2WD Hood142 cmReference
4WD Hood145 cmReference
ROPS225 cmReference
Height (Folded ROPS)194 cmReference
Cab246 cmReference
Test results
Diesel 9-speed 4WDOctober 12 - 19, 1998Link: Nebraska Tractor Test 1754 fileReference
PTO performanceReference
Fuel use10.6 l/hourReference
Speeds
With 16.9-28 rear tires.Reference
