John Deere 5220

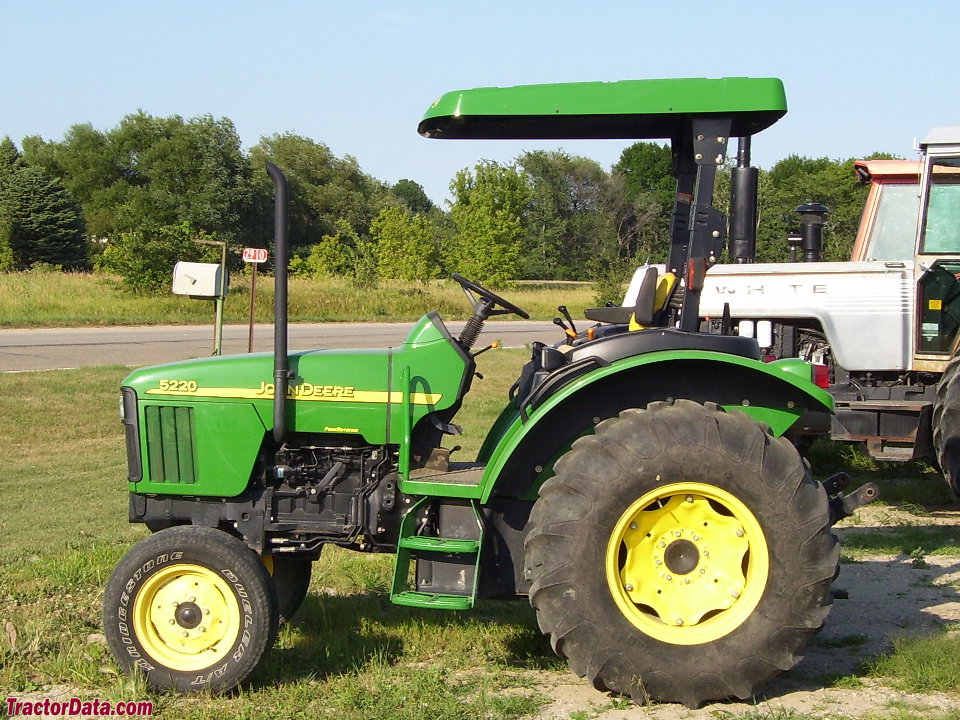

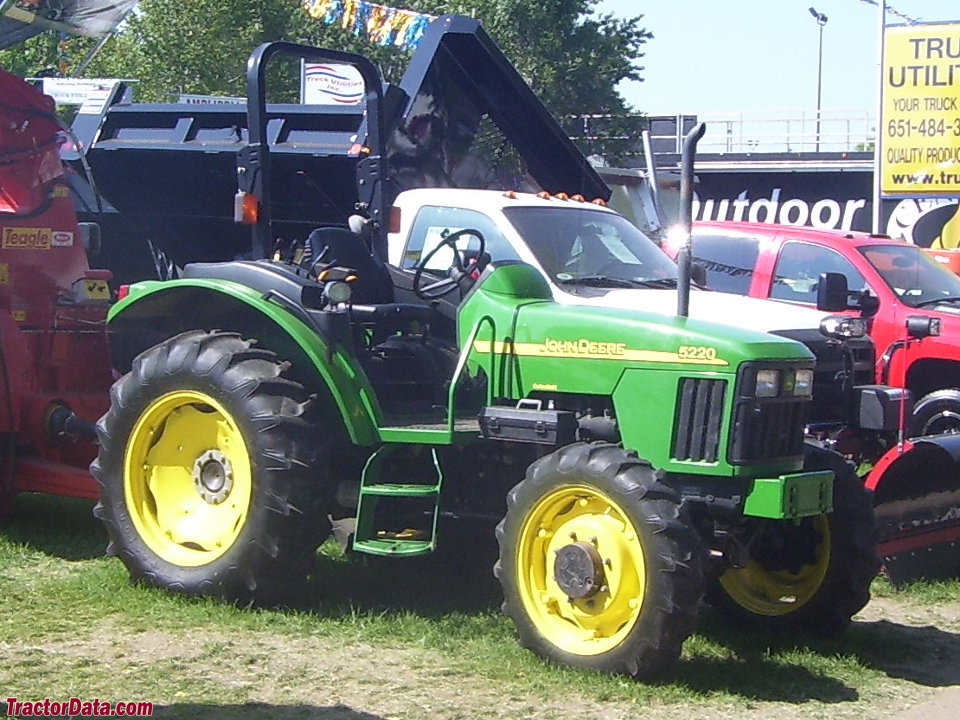

John Deere 5220 — Utility tractor · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
3576 to 6031 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Augusta, Georgia, USAReference
Original price was $22,500 in 2004Reference
The John Deere 5220 is nearly identical to the model 5210 it replaced.Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
ROPS with straddle-mount platform. Optional ROPS with isolated platform (IOOS). Optional cab.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
Engine39.5 kWReference
John Deere 3029DReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power39.5 kWReference
Fuel use10.7 l/hourReference
Compression17.8:1Reference
Rated RPM2400Reference
Idle RPM825-2625Reference
Operating RPM1600-2400Reference
Torque162.0 NmReference
Torque RPM1400Reference
Firing order1-2-3Reference
Starter volts12Reference
Coolant capacity9.5 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity8.5 LReference
Oil change100 hReference
Power at rated engine speed34.4 kWReference
Transmission
9-speed collar shiftReference
9-speed partially synchronizedReference
12-speed power shuttleReference
ManufacturerJohn DeereReference
Typecollar shiftReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Oil capacity37.9 LReference
Three gears (1-3) plus reverse (R) in three ranges (A-C). Tractor must be stopped, and clutch used, to shift gears or range.Reference
TransmissionJohn Deere SyncShuttleReference
Typepartially synchronizedReference
Three gears (1-3) plus reverse (R) in three ranges (A-C). Gear and direction shifts are synchronized enabling shifting on the move with the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference
TransmissionJohn Deere PowrReverserReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
Oil capacity43.5 LReference
Four gears (1-4) in three ranges (A-C) with left-hand directional lever. Forward-reverse directional shifts may be done while moving, without the clutch. Gear shifts are synchronized. Tractor must be stopped to shift ranges.Reference
PTO & Hydraulics
PTO (claimed)33.6 kWReference
PTO (tested)34.4 kWReference
Hydraulic system37.9 LReference
Hydraulic system43.5 LReference
Typeopen centerReference
Capacity37.9 LReference
Capacity43.5 LReference
Pressure193.1 barReference
Valves2 to 3Reference
Pump flow43.1 lpmReference
Steering flow25.7 lpmReference
Steering press.131.0 barReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1530 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/540EReference
Engine RPM540@2400Reference
Engine RPM540E@1700Reference
Capacities
Fuel68.1 LReference
Fuel75.7 LReference
Fuel102.2 LReference
Fuel111.7 LReference
Front axle6.2 LReference
Front hubs0.7 LReference
Front diff.4.9 LReference
Dimensions
ROPS Wheelbase204 cmReference
2WD Cab Wheelbase200 cmReference
4WD Cab Wheelbase203 cmReference
Weight3576 to 6031 poundsReference
Front tire6.5-16Reference
Rear tire13.6-28Reference
Weight695 kgReference
Ag front6.5-16Reference
Ag rear13.6-28Reference
2WD ROPS Length347 cmReference
4WD ROPS Length359 cmReference
2WD Cab Length354 cmReference
4WD Cab Length360 cmReference
ROPS Width180 cmReference
Cab Width176 cmReference
2WD Ground clearance45 cmReference
4WD Ground clearance40 cmReference
Shipping1622 kgReference
Shipping2093 kgReference
Shipping1764 kgReference
Shipping2236 kgReference
Shipping2263 kgReference
Shipping2735 kgReference
Max Drawbar759 kgReference
Max Drawbar1120 kgReference
2WD Max front axle2131 kgReference
2WD Max front axle3197 kgReference
4WD Max front axle2095 kgReference
4WD Max front axle2816 kgReference
Max rear axle3792 kgReference
Steering wheel159 cmReference
Steering wheel175 cmReference
John Deere 5220 attachments
front-end loaderReference
backhoeReference
5220 Serial Numbers
Location:The tractor's serial number plate is on the right side of the frame, above the front axle.Reference
2002220001Reference
2003320001Reference
2004420001Reference
FAQ: How to read a serial number table.Reference
Links
Temperature sensor: potential cold-start advance sensor failure leading to a no-start conditionReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps40Reference
Cab Charging amps60Reference
Battery CCA700 (early)Reference
Battery CCA950 (late)Reference
Battery volts12Reference
Battery Group31Reference
Attachment overview
John Deere 510 loaderReference
John Deere 521 loaderReference
John Deere 541 loaderReference
BackhoeReference
John Deere 49 Backhoe
Backhoe typeJohn Deere 49 BackhoeReference
Transport height238 cmReference
2-Foot flat digging depth292 cmReference
Reach from pivot378 cmReference
Loading height233 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2075 kgReference
Dipperstick force1440 kgReference
John Deere 5220 Height
Hood136 cmReference
ROPS238 cmReference
ROPS258 cmReference
ROPS192 cmReference
ROPS210 cmReference
Cab247 cmReference
Test results
Diesel 9-speed 4WDOctober 12 - 19, 1998Link: Nebraska Tractor Test 1754 fileReference
PTO performanceReference
Fuel use10.6 l/hourReference
Speeds
With 16.9-30 R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
