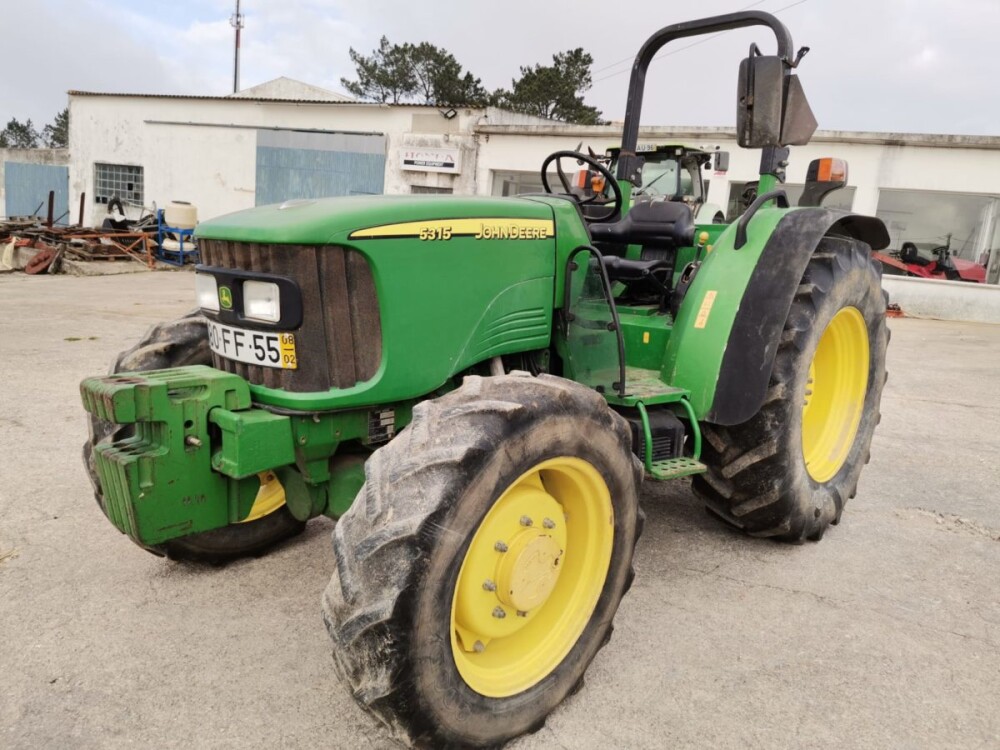

John Deere 5315
John Deere 5315 — Utility tractor · 67 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Weight
6504 to 6768 pounds
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerAgritaliaReference
Utility tractorReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Variants
5315utilityReference
5315FnarrowReference
5315Vnarrow low-profileReference
Engine
John Deere 2.9L 3-cyl dieselReference
Fuel tank79.9 LReference
Engine49.6 kWReference
John Deere 3029TAT71Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power49.6 kWReference
Compression17.2:1Reference
Rated RPM2300Reference
Torque235.0 NmReference
Torque RPM1600Reference
Firing order1-2-3Reference
Starter volts12Reference
Starter power2.8 kWReference
Coolant capacity9.5 LReference
Coolant capacity10.4 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity8.5 LReference
Transmission
12-speedReference
8-speedReference
24-speedReference
Gears12 forward and reverseReference
Gears8 forward and reverseReference
Gears24 forward and reverseReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Pressure131.0 barReference
Pump flow41.3 lpmReference
Steering flow24.6 lpmReference
Steering press.186.2 barReference
Rear Type2/1Reference
Rear lift (at ends)2447 kgReference
Rear PTO Type540/540E/1000Reference
Dimensions
Weight6504 to 6768 poundsReference
Length342 cmReference
Ground clearance22 cmReference
Ground clearance27 cmReference
Ground clearance34 cmReference
Ground clearance40 cmReference
Ground clearance43 cmReference
Shipping2950 kgReference
Shipping3069 kgReference
5315 Serial Numbers
Location:Left side of tractor frame above front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40 (ROPS)Reference
Charging amps60 (with cab)Reference
Battery volts12Reference
Battery AH100Reference
Capacities
Max capacity4399 kgReference
Max capacity4500 kgReference
Speeds
With 16.9R30 rear tiresReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
