Tractor · 2001Unverified
John Deere 5320
John Deere 5320 — Utility tractor · 56 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Max power
43.7 kW
Weight
3851 to 6306 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Augusta, Georgia, USAReference
Original price$25,000 (2004)Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
ROPS with straddle-mount platform. Optional ROPS with isolated platform (IOOS). Optional cab.Reference
Variants
5320Nnarrow chassisReference
Engine
John Deere 2.9L 3-cyl dieselReference
Engine47.7 kWReference
John Deere 3029TReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power47.7 kWReference
Compression17.8:1Reference
Rated RPM2400Reference
Idle RPM825-2625Reference
Operating RPM1600-2400Reference
Torque195.0 NmReference
Torque RPM1400Reference
Firing order1-2-3Reference
Starter volts12Reference
Coolant capacity9.5 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity8.5 LReference
Oil change100 hReference
Max power43.7 kWReference
Power at rated engine speed41.7 kWReference
Transmission
9-speed collar shiftReference
9-speed partially synchronizedReference
12-speed power shuttleReference
ManufacturerJohn DeereReference
Typecollar shiftReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Oil capacity37.9 LReference
Three gears (1-3) plus reverse (R) in three ranges (A-C). Tractor must be stopped, and clutch used, to shift gears or range.Reference
TransmissionJohn Deere SyncShuttleReference
Typepartially synchronizedReference
Three gears (1-3) plus reverse (R) in three ranges (A-C). Gear and direction shifts are synchronized enabling shifting on the move with the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference
TransmissionJohn Deere PowrReverserReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
Oil capacity43.5 LReference
Four gears (1-4) in three ranges (A-C) with left-hand directional lever. Forward-reverse directional shifts may be done while moving, without the clutch. Gear shifts are synchronized. Tractor must be stopped to shift ranges.Reference
PTO & Hydraulics
PTO (claimed)41.0 kWReference
PTO (tested)43.7 kWReference
Hydraulic system37.9 LReference
Hydraulic system43.5 LReference
Typeopen centerReference
Capacity37.9 LReference
Capacity43.5 LReference
Pressure193.1 barReference
Valves2 to 3Reference
Pump flow43.1 lpmReference
Steering flow25.7 lpmReference
Steering press.131.0 barReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1530 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/540EReference
Engine RPM540@2400Reference
Engine RPM540E@1700Reference
Capacities
Fuel68.1 LReference
Fuel75.7 LReference
Fuel102.2 LReference
Fuel111.7 LReference
Front axle6.2 LReference
Front hubs0.7 LReference
Front diff.4.9 LReference
Dimensions
Wheelbase204 cmReference
Wheelbase200 cmReference
Wheelbase203 cmReference
Weight3851 to 6306 poundsReference
Front tire7.50-16Reference
Rear tire14.9-28Reference
Weight695 kgReference
Ag front7.50-16Reference
Ag rear14.9-28Reference
Length350 cmReference
Length362 cmReference
Length354 cmReference
Length360 cmReference
Width184 cmReference
Width179 cmReference
Ground clearance47 cmReference
Ground clearance42 cmReference
Shipping1746 kgReference
Shipping2218 kgReference
Shipping1867 kgReference
Shipping2361 kgReference
Shipping2388 kgReference
Shipping2860 kgReference
Max Drawbar759 kgReference
Max Drawbar1120 kgReference
Max front axle2131 kgReference
Max front axle3197 kgReference
Max front axle2095 kgReference
Max front axle2816 kgReference
Max rear axle3792 kgReference
Steering wheel161 cmReference
Steering wheel178 cmReference
John Deere 5320 attachments
front-end loaderReference
backhoeReference
5320 Serial Numbers
Location:The tractor's serial number plate is on the right side of the frame, above the front axle.Reference
2002230001Reference
2003330001Reference
2004430001Reference
FAQ: How to read a serial number table.Reference
Links
Temperature sensor: potential cold-start advance sensor failure leading to a no-start conditionReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40 (ROPS)Reference
Charging amps60 (cab)Reference
Battery CCA700 (early)Reference
Battery CCA950 (late)Reference
Battery volts12Reference
Battery Group31Reference
Attachment overview
John Deere 510 loaderReference
John Deere 521 loaderReference

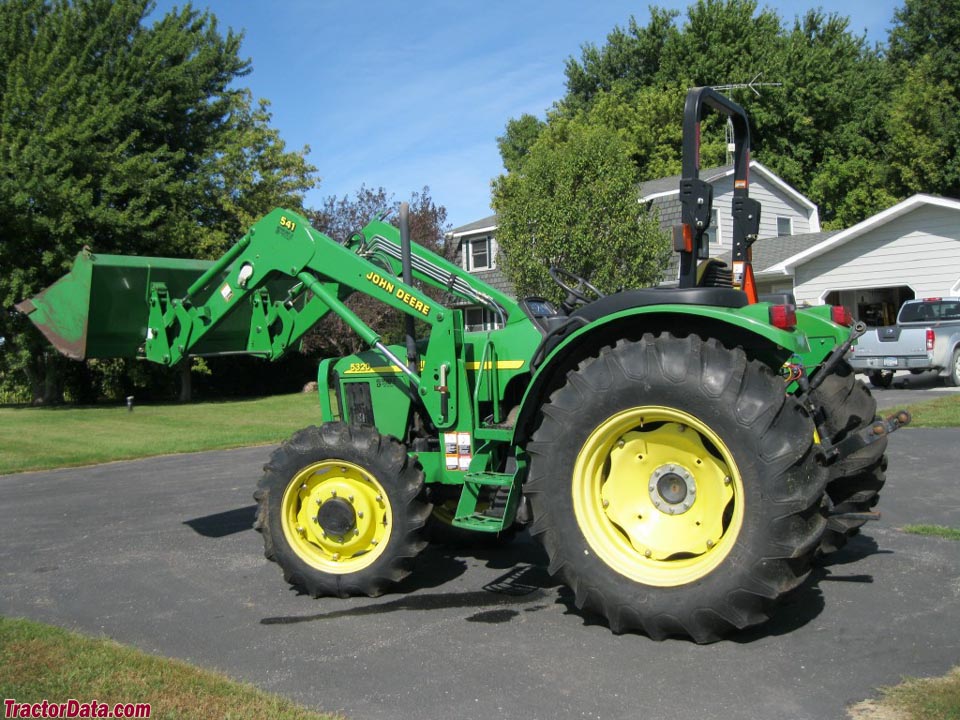

John Deere 541 loaderReference
BackhoeReference
John Deere 49 Backhoe
Backhoe typeJohn Deere 49 BackhoeReference
Transport height238 cmReference
2-Foot flat digging depth292 cmReference
Reach from pivot378 cmReference
Loading height233 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2075 kgReference
Dipperstick force1440 kgReference
John Deere 5320 Height
Hood136 cmReference
Hood138 cmReference
ROPS240 cmReference
ROPS260 cmReference
ROPS193 cmReference
ROPS212 cmReference
Cab249 cmReference
Test results
Diesel 9-speed 4WDOctober 14 - 19, 1998Link: Nebraska Tractor Test 1755 fileReference
PTO performanceReference
Fuel use12.1 l/hourReference
Fuel use12.9 l/hourReference
Speeds
With 16.9-30 R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
