Tractor · 2001Unverified

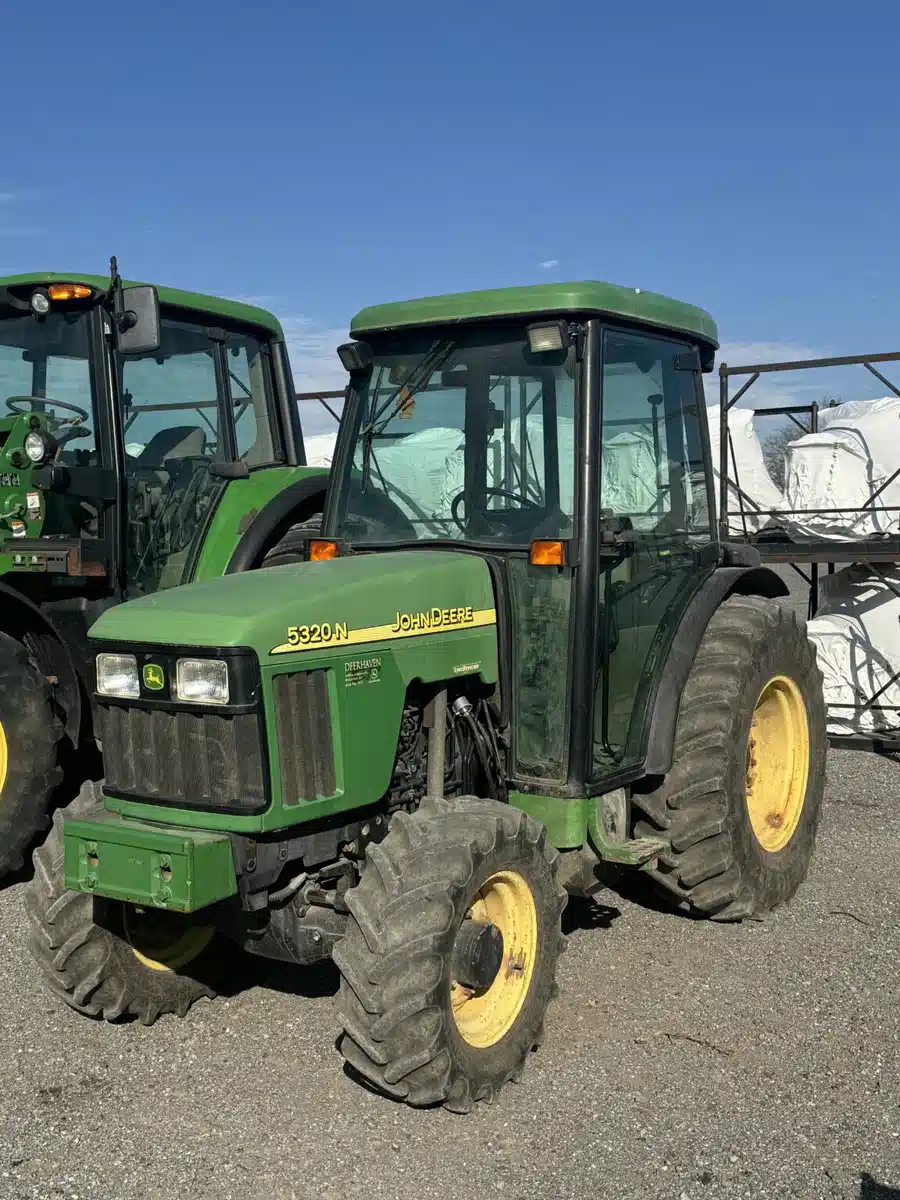

John Deere 5320N
John Deere 5320N — Orchard/Vineyard tractor · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
4763 to 5702 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Orchard/Vineyard tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS. Cab optional.Reference
Variants
5320utility chassisReference
Engine
John Deere 2.9L 3-cyl dieselReference
John Deere 3029TReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Compression17.8:1Reference
Rated RPM2400Reference
Idle RPM825-2625Reference
Operating RPM1600-2400Reference
Torque195.3 NmReference
Torque RPM1400Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity8.5 LReference
Oil change100 hReference
Transmission
12-speed partially synchronizedReference
TransmissionJohn Deere SyncReverserReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Oil capacity41.6 LReference
Four gears (1-4) in three ranges (A-C) with left-hand reverser lever. Directional changes (forward-reverse) and gear shifts (1-4) are synchronized and can be performed while moving by using the clutch. The tractor must be stopped, and clutch used, to shift ranges (A-C).Reference
PTO & Hydraulics
PTO (claimed)41.0 kWReference
Hydraulic system41.6 LReference
Typeopen centerReference
Capacity41.6 LReference
Pressure193.1 barReference
Valves2 to 3Reference
Pump flow43.1 lpmReference
Steering flow25.7 lpmReference
Steering press.131.0 barReference
Rear TypeII/I/INReference
Rear lift (at 24"/610mm)1530 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Engine RPM540@2400Reference
Engine RPM540E@1700Reference
Capacities
Fuel60.6 LReference
Fuel71.9 LReference
Front axle5.0 LReference
Front hubs0.6 LReference
Dimensions
Wheelbase195 cmReference
Weight4763 to 5702 poundsReference
Front tire6.50-16Reference
Rear tire12.4-24 (2WD)Reference
Standard tires (ag)Front: 6.50-16. Rear: 12.4-24 (2WD)Reference
Standard tires (ag)Front: 8.30-16. Rear: 12.4-24 (4WD)Reference
Length285 cmReference
Length293 cmReference
Width121 cmReference
Width182 cmReference
Clearance (front axle)35 cmReference
Clearance (front axle)25 cmReference
Clearance (drawbar)27 cmReference
Shipping2160 kgReference
Shipping2385 kgReference
Shipping2586 kgReference
Shipping2526 kgReference
Steering wheel144 cmReference
Steering wheel147 cmReference
5320N Serial Numbers
Location:Serial number plate located on front-right tractor frame, above the front axle.Reference
2003338001Reference
2004438001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40 (ROPS)Reference
Charging amps60 (cab)Reference
Battery CCA700 (early)Reference
Battery CCA950 (late)Reference
Battery volts12Reference
Battery Group28H (ROPS)Reference
Battery Group31 (cab)Reference
John Deere 5320N Height
Hood134 cmReference
Hood138 cmReference
ROPS228 cmReference
ROPS231 cmReference
Cab226 cmReference
Speeds
With 14.9-28 R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
