Tractor · 2005Unverified

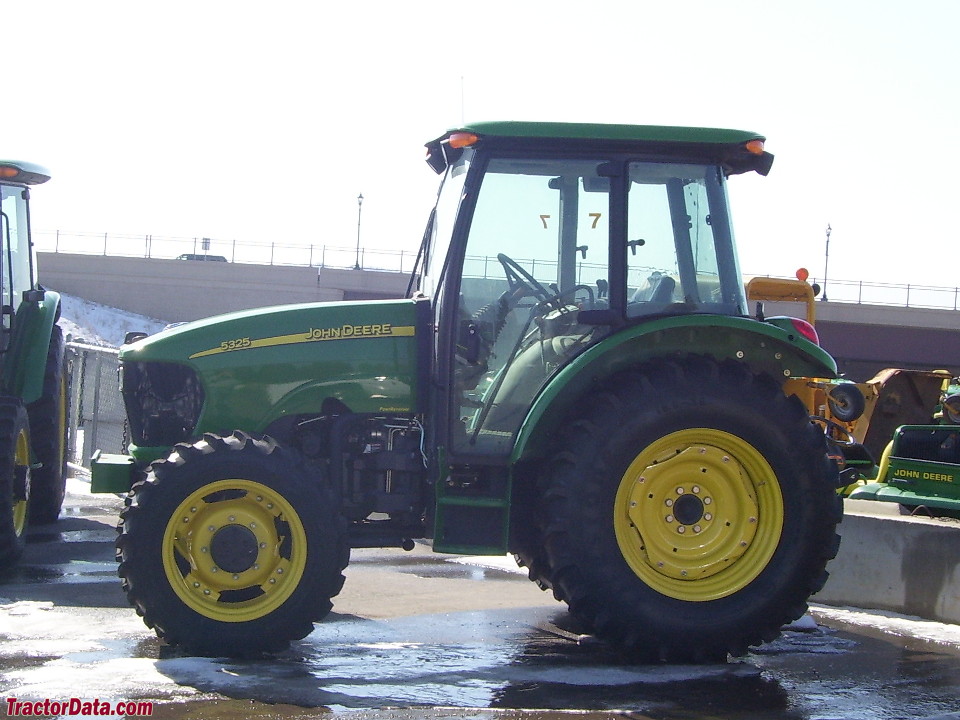

John Deere 5325

Name: John Deere 5325
Brand: John Deere

John Deere 5325 — Utility tractor · 67 hp. Reference specifications; pending source verification.

The John Deere 5325 is a mid-range tractor model with an engine rating of approximately 67 horsepower. This model was manufactured from 2005 to 2008. It features a 5-cylinder turbocharged diesel liquid-cooled engine paired with a four-wheel drive and powershift transmission. The operating weight of the tractor is between 5350 and 6760 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

67 hp

Max power

42.7 kW

Weight

5350 to 6760 pounds

Catalogue coverage

Variants represented

Richest spec table

158 rows

Recorded power

67 hp

Transmissions

9-speed partially synchronized

Production years

2005-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Augusta, Georgia, USAReference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Differential lockmechanical rearReference

Power steeringReference

Differential hydraulic wet disc brakesReference

Open operator station with two-post folding ROPS. Optional isolated flat-platform (IOOS). Cab available with air-conditioning.Reference

Variants

5325utilityReference

5325Nnarrow-profileReference

Engine

John Deere 3.1L 5-cyl dieselReference

Engine (gross)50.0 kWReference

John DeereReference

turbocharged dieselReference

5-cylinderReference

liquid-cooledReference

Displacement3.1 LReference

Bore/Stroke86 x 105 mmReference

EmissionsTier IIReference

Power (gross)50.0 kWReference

Air cleanerpaper and felt elementsReference

Compression20.5:1Reference

Rated RPM2400Reference

Idle RPM900-2625Reference

Operating RPM1600-2400Reference

Starter volts12Reference

Coolant capacity9.5 LReference

Oil capacity10.4 LReference

Max power42.7 kWReference

Power at rated engine speed41.9 kWReference

Transmission

9-speed partially synchronizedReference

12-speed power shuttleReference

24-speed two-speed power shiftReference

TransmissionJohn Deere SyncShuttleReference

Typepartially synchronizedReference

Gears9 forward and 3 reverseReference

Clutchdry discReference

Oil capacity39.0 LReference

Oil type[30o↔-40oC]Reference

122o↔-10oF [50o↔-23oC]: Hy-GardReference

86o↔-40oF [30o↔-40oC]: Low-Viscosity Hy-GardReference

Three gears (1-3) plus reverse in three ranges (A-C). Gears may be shifted on the move using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference

TransmissionJohn Deere PowrReverserReference

Typepower shuttleReference

Gears12 forward and reverseReference

Clutchwet discReference

Oil capacity43.5 LReference

Four gears (1-4) in three ranges (A-C) with reverser lever. Direction may be changed without using the clutch. Gear shifts are synchronized using the clutch. Tractor must be stopped to shift ranges.Reference

TransmissionJohn Deere PowrReverser Hi/LoReference

Typetwo-speed power shiftReference

Gears24 forward and reverseReference

Adds a push-button high-low power shift to the PowrReverser transmission. Gear shifts are synchronized using the clutch. Tractor must be stopped to shift ranges.Reference

PTO & Hydraulics

PTO (claimed)41.0 kWReference

PTO (tested)42.7 kWReference

Hydraulic system39.0 LReference

Hydraulic system43.5 LReference

Typeopen centerReference

Capacity39.0 LReference

Capacity43.5 LReference

Pressure195.0 barReference

Rear valves1 to 3Reference

Mid valves0, 2 or 3Reference

Pump flow51.1 lpmReference

Total flow73.4 lpmReference

Steering flow22.3 lpmReference

Steering press.134.9 barReference

Rear TypeII/IReference

Controltop-link draft sensingReference

Rear lift (at 24"/610mm)1530 kgReference

Rear PTOindependentReference

Clutchdry discReference

Clutchelectro-hydraulic wet disc (24-speed)Reference

Rear PTO Type540Reference

Rear PTO Type540/540EReference

Rear PTO Type540/1000Reference

Engine RPM540@2400Reference

Engine RPM540E@1700Reference

Capacities

Fuel94.6 LReference

Fuel126.8 LReference

Front hubs0.7 LReference

Front diff.4.5 LReference

Dimensions

Wheelbase217 cmReference

Weight5350 to 6760 poundsReference

Front tire7.50-16Reference

2WD Rear tire14.9-28Reference

2WD Standard tires (ag)Front: 7.50-16. Rear: 14.9-28Reference

4WD Standard tires (ag)Front: 9.5-24. Rear: 14.9-28Reference

2WD Length350 cmReference

4WD Length362 cmReference

2WD Clearance (front axle)47 cmReference

4WD Clearance (front axle)42 cmReference

Clearance (drawbar)40 cmReference

Flange rear axle1643 mmReference

2WD Front tread146 to 196 cmReference

4WD Front tread134 to 195 cmReference

Rear tread165 cmReference

Rear tread141 to 182 cmReference

Shipping2426 kgReference

Shipping2692 kgReference

Shipping2487 kgReference

Shipping2735 kgReference

Shipping2719 kgReference

Shipping2984 kgReference

4WD Cab Operating3066 kgReference

Max Drawbar759 kgReference

Max Drawbar1120 kgReference

Steering wheel161 cmReference

Steering wheel178 cmReference

John Deere 5325 attachments

front-end loaderReference

backhoeReference

5325 Serial Number Location

Left side of tractor frame above the front axle.Reference

5325 Serial Numbers

2005130001Reference

2006230001Reference

2007338001Reference

2008430001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps70Reference

Cab Charging amps90Reference

Battery CCA950Reference

Battery volts12Reference

Battery GroupBCI 31Reference

Attachment overview

John Deere 512 loaderReference

John Deere 522 loaderReference

John Deere 542 loaderReference

John Deere 542SL loaderReference

BackhoeReference

John Deere 49 Backhoe

Backhoe typeJohn Deere 49 BackhoeReference

Transport height238 cmReference

Bucket width35 cmReference

Bucket width45 cmReference

Bucket width60 cmReference

Bucket width91 cmReference

Bucket width101 cmReference

2-Foot flat digging depth292 cmReference

Reach from pivot378 cmReference

Loading height233 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force2075 kgReference

Dipperstick force1440 kgReference

John Deere 5325 Height

2WD Hood136 cmReference

4WD Hood138 cmReference

ROPS240 cmReference

ROPS260 cmReference

Height (Folded ROPS)194 cmReference

Height (Folded ROPS)212 cmReference

Cab247 cmReference

Exhaust227 cmReference

Exhaust224 cmReference

Test results

Diesel 9-speed 4WDNovember 17 - 23, 2005Link: Nebraska Tractor Test 1867 fileReference

PTO performanceReference

Fuel use13.6 l/hourReference

Fuel use15.1 l/hourReference

Speeds

With 16.9-30 rear tires.Reference

With 16.90-30 rear tires. Reverse speeds are 10% faster than forward speeds.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
