Tractor · 1995Unverified

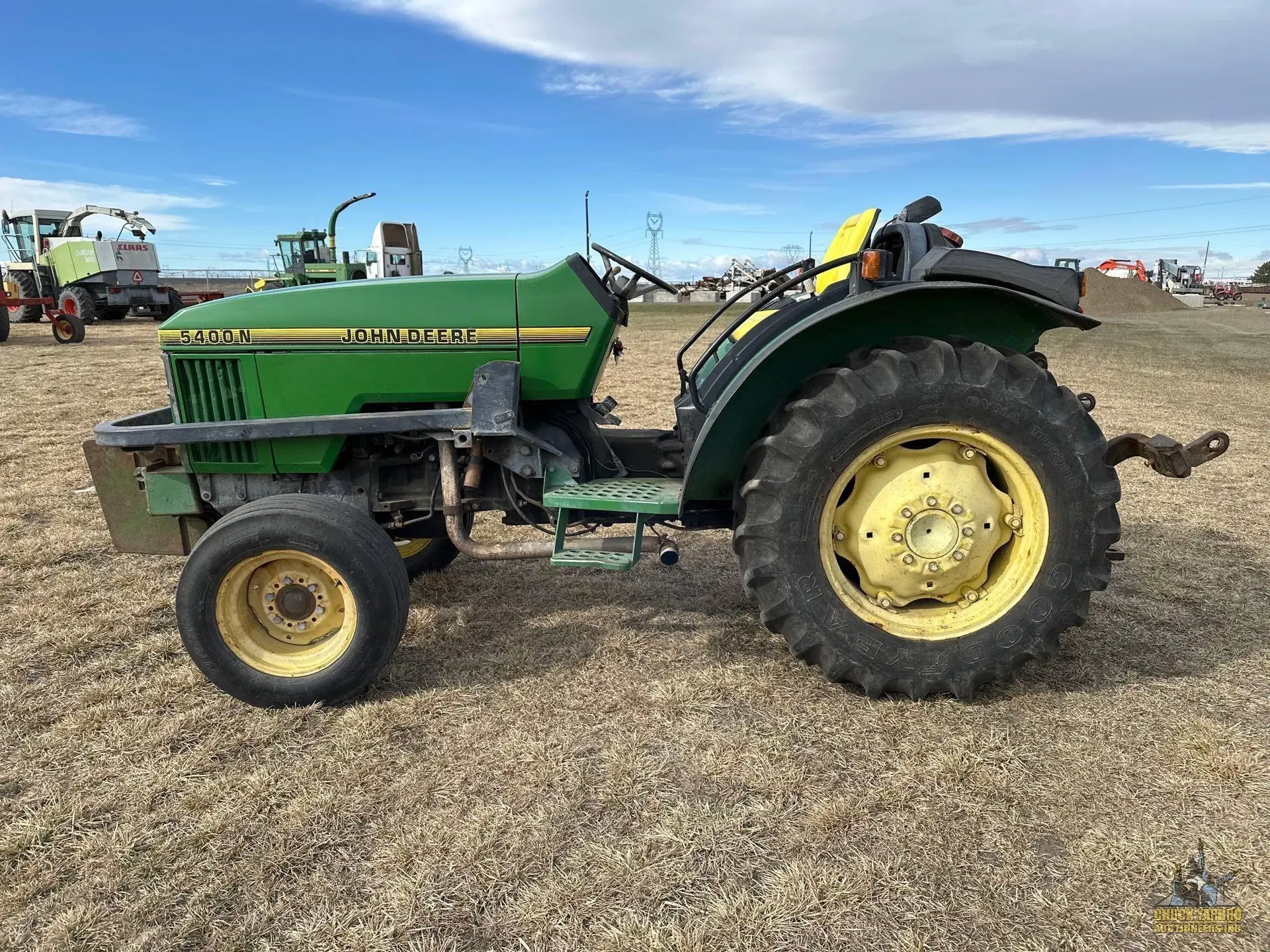

John Deere 5400N
John Deere 5400N — Orchard/Vineyard tractor · 68 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
68 hp
Weight
4763 to 5072 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Orchard/Vineyard tractorReference
Built in Augusta, Georgia, USAReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post folding ROPS.Reference
Variants
5400utility tractorReference
Engine
John Deere 2.9L 3-cyl dieselReference
Fuel tank60.6 LReference
Engine (gross)51.0 kWReference
John DeereReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power (gross)51.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdual paper elementsReference
Compression17.8:1Reference
Rated RPM2400Reference
Operating RPM1600-2400Reference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
TransmissionJohn Deere Top-Shaft SynchronizedReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Four-speed gear shift (1-4), three-range shift (A-C), and left-hand reverser. Gear shifts are synchronized with clutch. Tractor must be stopped, and clutch used, for range and direction shifts.Reference
PTO & Hydraulics
PTO (claimed)44.7 kWReference
Typeopen centerReference
Pressure189.6 barReference
Pump flow43.1 lpmReference
Total flow68.9 lpmReference
Steering flow25.7 lpmReference
Rear Type2/1/1NReference
Rear lift1530 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
Wheelbase194 cmReference
Weight4763 to 5072 poundsReference
Front tire6.50-16Reference
Rear tire12.4-24 (2WD)Reference
Standard tires (ag)Front: 6.50-16. Rear: 12.4-24 (2WD)Reference
Standard tires (ag)Front: 7.5-16. Rear: 12.4-24 (4WD)Reference
Length342 cmReference
Width121 cmReference
2WD Weight2160 kgReference
4WD Weight2300 kgReference
2WD Clearance (front axle)35 cmReference
4WD Clearance (front axle)24 cmReference
Steering wheel145 cmReference
John Deere 5400N attachments
front-end loaderReference
5400N Serial Numbers
1995460116Reference
1996560001Reference
1997660000Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
John Deere 5400N Height
2WD Hood125 cmReference
4WD Hood128 cmReference
ROPS218 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
