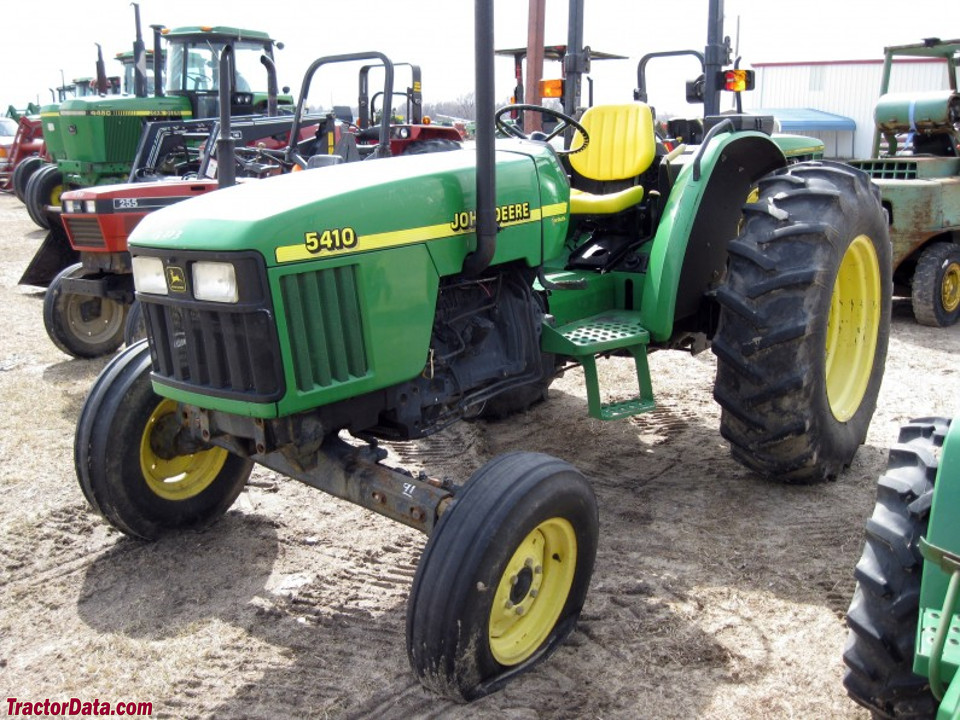

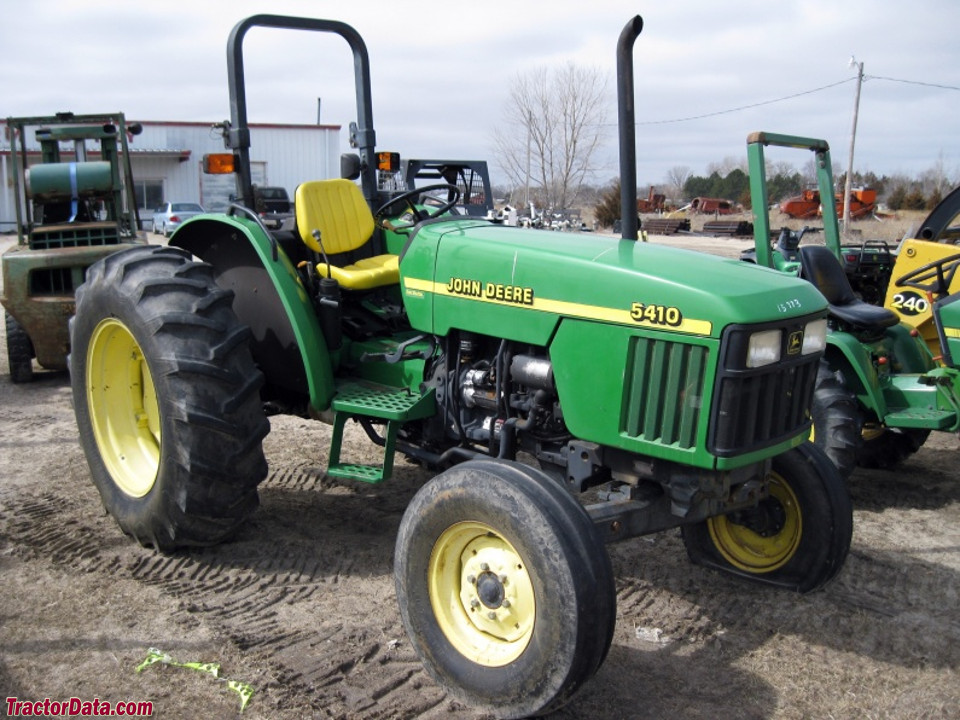

John Deere 5410
John Deere 5410 — Utility tractor · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Max power
49.6 kW
Weight
5000 to 6500 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Augusta, Georgia, USAReference
Original price was $27,532 in 2001Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
ROPS Fuel tank68.1 LReference
Cab Fuel tank87.1 LReference
Engine60.4 kWReference
John Deere 4045DReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Power60.4 kWReference
Fuel use15.9 l/hourReference
Compression17.6:1Reference
Rated RPM2400Reference
Idle RPM825-2600Reference
Operating RPM1600-2400Reference
Torque243.0 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Coolant capacity10.8 LReference
Coolant change2000 hReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity8.5 LReference
Oil change100 hReference
Max power49.6 kWReference
Power at rated engine speed48.8 kWReference
Transmission
9-speed unsynchronized gearReference
9-speed partially synchronizedReference
12-speed power shuttleReference
TransmissionCollarShiftReference
Typeunsynchronized gearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Oil capacity37.9 LReference
The Collar Shift transmission is controlled with two levers and the foot clutch. The right-hand lever selects one of three speeds (1-3) or reverse (R). The left-hand lever selects one of three ranges (A-C). The tractor must be stopped, and clutch used, to shift either speed or range.Reference
TransmissionSyncShuttleReference
Typepartially synchronizedReference
Three speeds (1-3) plus reverse (R) in three ranges (A-C). Synchronized shifting, using the clutch, between the three forward speeds and reverse. Tractor must be stopped, and clutch used, to shift range.Reference
TransmissionPowrReverserReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
Oil capacity43.5 LReference
Four speeds (1-4) in three ranges (A-C) with forward-reverse shuttle lever. Direction changes may be done while moving using the left-hand shuttle lever. Speed changes are synchronized using the clutch. Tractor must be stopped, and clutch used, to shift ranges. At tractor start-up, clutch pedal must be cycled once before tractor will move.Reference
PTO & Hydraulics
PTO (claimed)48.5 kWReference
PTO (tested)49.6 kWReference
Typeopen centerReference
Pressure196.9 barReference
Valves5Reference
Pump flow62.1 lpmReference
Total flow87.1 lpmReference
Steering flow25.0 lpmReference
Steering press.134.8 barReference
Rear TypeI/IIReference
Rear lift (at 24"/610mm)1530 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/540EReference
Dimensions
Wheelbase217 cmReference
Weight5000 to 6500 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-30Reference
Weight695 kgReference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-30Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference
2WD Length319 cmReference
4WD Length330 cmReference
Width174 cmReference
2WD Clearance (front axle)46 cmReference
4WD Clearance (front axle)39 cmReference
2WD Clearance (drawbar)49 cmReference
4WD Clearance (drawbar)47 cmReference
2WD ROPS Shipping2268 kgReference
2WD cab Shipping2721 kgReference
4WD ROPS Shipping2494 kgReference
4WD cab Shipping2948 kgReference
Max Drawbar759 kgReference
Steering wheel166 cmReference
John Deere 5410 attachments
front-end loaderReference
backhoeReference
5410 Serial Number Location
The serial number plate is on the right side of the John Deere 5410 tractor frame, above the front axle.Reference
5410 Serial Numbers
1998140000Reference
1999240001Reference
2000340000Reference
2001440000Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps40Reference
Cab Charging amps60Reference
Battery CCA700Reference
Battery volts12Reference
ROPS Battery Group28HReference
Cab Battery Group31Reference
Attachment overview
John Deere 521 loaderReference

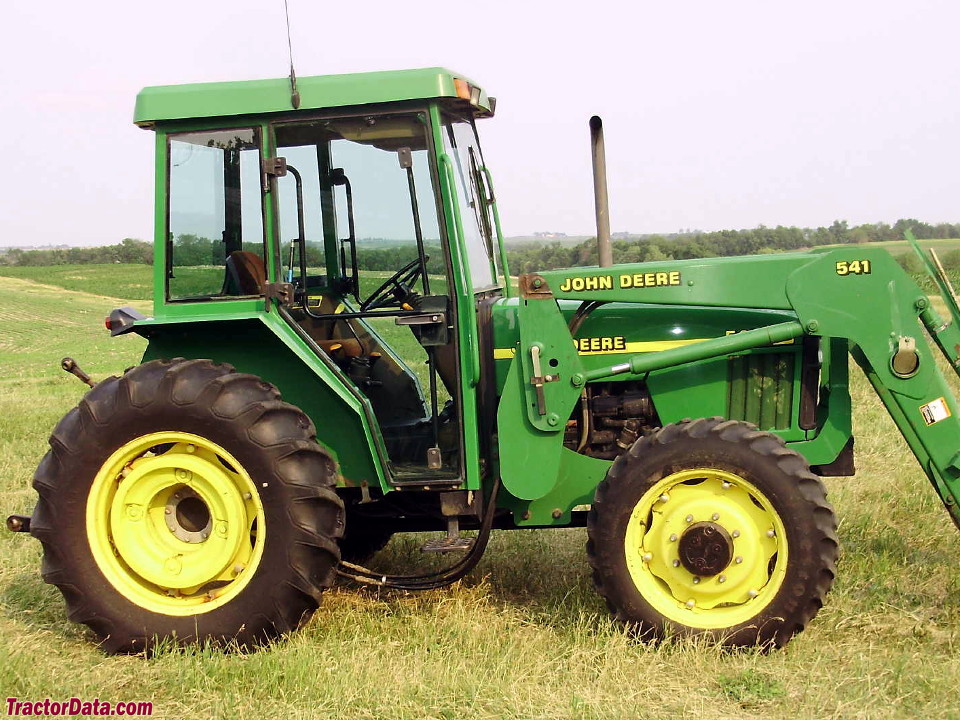

John Deere 541 loaderReference
John Deere 541 Self-Leveling loaderReference
BackhoeReference
John Deere 49 Backhoe
Backhoe typeJohn Deere 49 BackhoeReference
Transport height238 cmReference
2-Foot flat digging depth292 cmReference
Reach from pivot378 cmReference
Loading height233 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2075 kgReference
Dipperstick force1440 kgReference
John Deere 5410 Height
2WD Hood145 cmReference
4WD Hood150 cmReference
ROPS231 cmReference
Height (Folded ROPS)198 cmReference
Cab255 cmReference
Test results
Diesel 9-speed 4WDOctober 15 - 19, 1998Link: Nebraska Tractor Test 1756 fileReference
PTO performanceReference
Fuel use15.5 l/hourReference
Fuel use15.1 l/hourReference
Speeds
With 16.9-30 rear tires.Reference
