Tractor · 2003Unverified

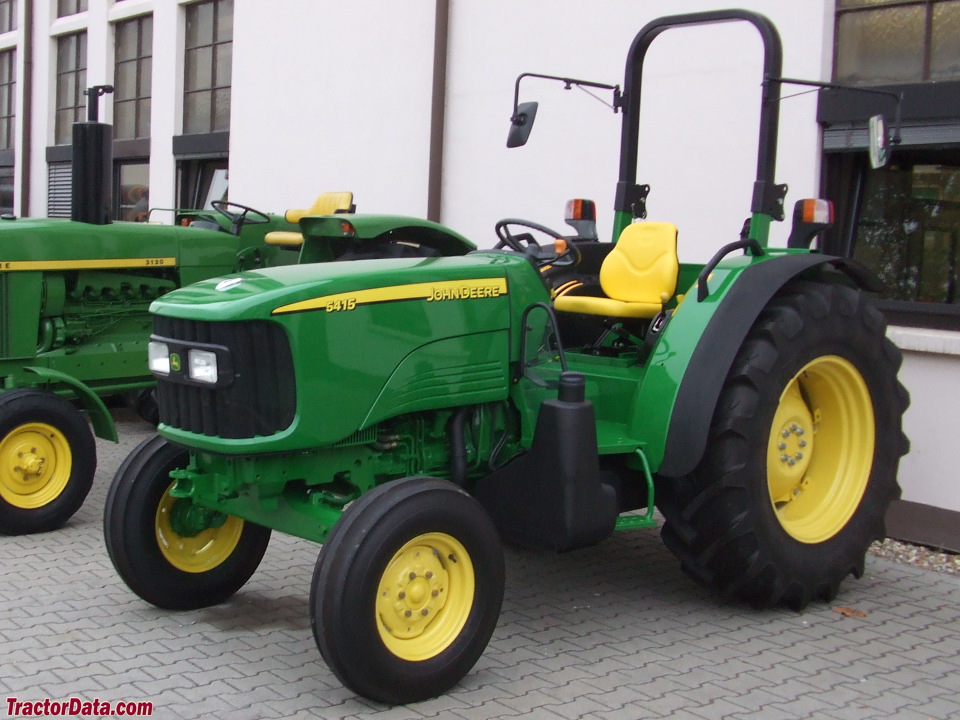

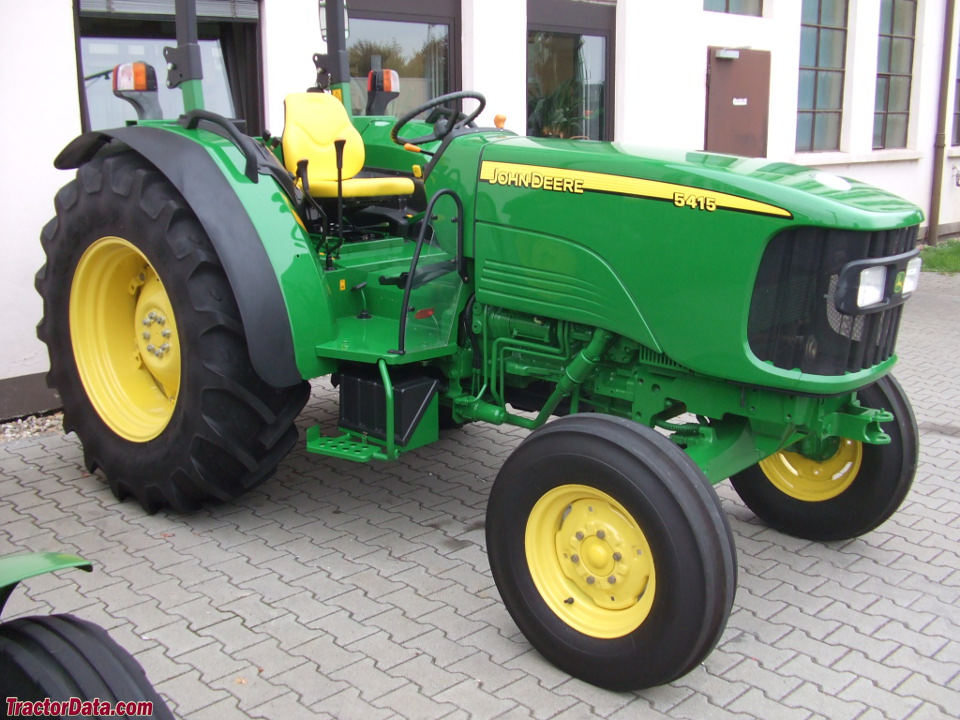

John Deere 5415

Name: John Deere 5415
Brand: John Deere

John Deere 5415 — Utility tractor · 74 hp. Reference specifications; pending source verification.

The John Deere 5415 is a tractor with a rated engine power of 74 hp, a typical output for its class. Produced from 2003 to 2008, it features a 4-cylinder diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. The operating weight of the tractor ranges from 6724 to 7055 pounds. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

74 hp

Max power

74 hp

Weight

6724 to 7055 pounds

Catalogue coverage

Variants represented

Richest spec table

103 rows

Recorded power

74 hp

Transmissions

12-speed

Production years

2003-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorJohn DeereReference

ManufacturerAgritaliaReference

Utility tractorReference

Built in ItalyReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Variants

5415HCHigh Crop tractor with high clearanceReference

5414Nnarrow-width tractorReference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank96.1 LReference

Engine55.2 kWReference

John Deere 4045DAT70Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

Power55.2 kWReference

Compression17.6:1Reference

Rated RPM2300Reference

Torque270.0 NmReference

Torque RPM1600Reference

Firing order1-3-4-2Reference

Starter volts12Reference

Starter power2.8 kWReference

ROPS Coolant capacity11.9 LReference

Cab Coolant capacity13.0 LReference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.457 mmReference

Oil capacity8.0 LReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,300 RPMReference

Emissions complianceTier 0Reference

Engine torque at rated speed90.3 kgReference

Bore and stroke4.19x5.00 inchesReference

Compression ratio0.7,125,115,741Reference

Cooling systemliquid-cooledReference

Transmission

12-speedReference

24-speedReference

9-speedReference

Gears12 forward and reverseReference

Gears24 forward and reverseReference

Gears24 forward and 12 reverseReference

TransmissionCollar ShiftReference

Gears9 forward and 3 reverseReference

Transmission TypeCollar ShiftReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeopen centerReference

Pressure131.0 barReference

Pump flow46.9 lpmReference

Pump flow59.8 lpmReference

Steering flow24.6 lpmReference

Steering press.186.2 barReference

Rear Type2/1Reference

Rear lift (at ends)2651 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000Reference

Dimensions

Weight6724 to 7055 poundsReference

Length319 cmReference

Width174 cmReference

4WD Clearance (front axle)39 cmReference

2WD Clearance (front axle)46 cmReference

4WD High Crop 31 2WD High Crop} Clearance (front axle)65 cmReference

Shipping3050 kgReference

Shipping3200 kgReference

Steering wheel166 cmReference

5415 Serial Numbers

Location:Left side of tractor frame above front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps40Reference

Cab Charging amps65Reference

Battery CCA550Reference

Battery volts12Reference

Battery AH100Reference

Battery Group27FReference

Total cold cranking amps550 ampsReference

Capacities

2WD Max capacity5000 kgReference

4WD Max capacity5100 kgReference

Capacity276 ciReference

Crankcase oil volume8.5 qtsReference

John Deere 5415 Height

Hood150 cmReference

ROPS231 cmReference

Speeds

With 16.9R30 rear tiresReference

General

Make & ModelJohn DeereReference

Rollover protective structureTwo-post folding ROPS.Reference

Country of manufacturerItalyReference

Power

Max Power74 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Steering & brakes

BrakesHydraulic Wet DiscReference

Steering typeHydrostatic PowerReference

Hydraulics

Hydraulics TypeOpen CenterReference

Maximum operating pressure1,900 psiReference

Steering & Implements flow6.5 gpm (15.8 gpm)Reference

Rear Hitch category (SAE designation)Category 2/1Reference

Rear Hitch maximum lift capacity2,651.2 kgReference

Dimensions & weight

Wheelbase217.7 cmReference

Height Over ROPS231.6 cmReference

Overall Length319.8 cmReference

Overall Width174.5 cmReference

Front axle clearance65 cmReference

Overall weight3,050 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
