Tractor · 2001Unverified

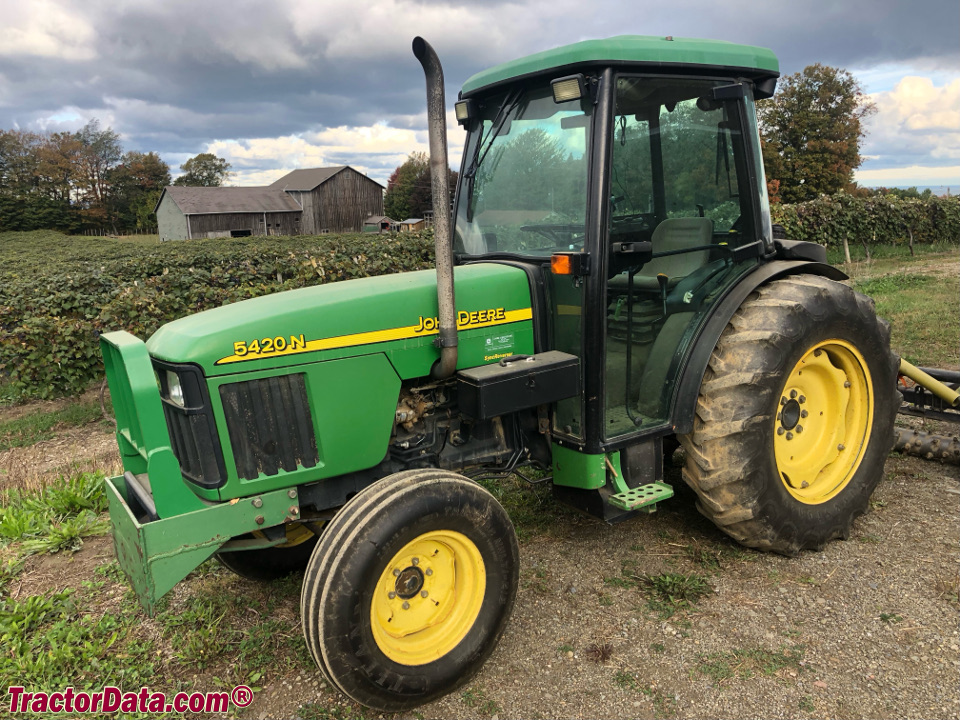

John Deere 5420N
John Deere 5420N — Orchard/Vineyard tractor · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
4983 to 5790 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Orchard/Vineyard tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS. Cab optional.Reference
Variants
5420utility chassisReference
Engine
John Deere 4.6L 4-cyl dieselReference
John Deere 4045DReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke106 x 127 mmReference
Compression17.6:1Reference
Rated RPM2400Reference
Idle RPM825-2625Reference
Operating RPM1600-2400Reference
Torque243.0 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity8.5 LReference
Oil change100 hReference
Transmission
12-speed partially synchronizedReference
TransmissionJohn Deere SyncReverserReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Oil capacity41.6 LReference
Four gears (1-4) in three ranges (A-C) with left-hand reverser lever. Directional changes (forward-reverse) and gear shifts (1-4) are synchronized and can be performed while moving by using the clutch. The tractor must be stopped, and clutch used, to shift ranges (A-C).Reference
PTO & Hydraulics
PTO (claimed)48.5 kWReference
Hydraulic system41.6 LReference
Typeopen centerReference
Capacity41.6 LReference
Pressure193.1 barReference
Valves2 to 3Reference
Pump flow60.2 lpmReference
Steering flow25.0 lpmReference
Steering press.131.0 barReference
Rear TypeII/I/INReference
Rear lift (at 24"/610mm)1530 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Engine RPM540@2400Reference
Engine RPM540E@1700Reference
Capacities
Fuel60.6 LReference
Fuel71.9 LReference
Front axle5.0 LReference
Front hubs0.6 LReference
Dimensions
Wheelbase208 cmReference
Weight4983 to 5790 poundsReference
Front tire6.5-16Reference
Rear tire12.4-24 (2WD)Reference
Standard tires (ag)Front: 6.5-16. Rear: 12.4-24 (2WD)Reference
Standard tires (ag)Front: 8.3-16. Rear: 12.4-24 (4WD)Reference
Length337 cmReference
Width139 cmReference
Width190 cmReference
Clearance (front axle)35 cmReference
Clearance (drawbar)45 cmReference
Shipping2260 kgReference
Shipping2485 kgReference
Shipping2400 kgReference
Shipping2626 kgReference
Steering wheel147 cmReference
Steering wheel152 cmReference
5420N Serial Numbers
Location:Serial number plate located on front-right tractor frame, above the front axle.Reference
2002248000Reference
2003348000Reference
2004448001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40 (ROPS)Reference
Charging amps65 (cab)Reference
Battery CCA700 (early)Reference
Battery CCA950 (late)Reference
Battery volts12Reference
Battery Group28H (ROPS)Reference
Battery Group31 (cab)Reference
John Deere 5420N Height
Hood140 cmReference
Hood146 cmReference
ROPS260 cmReference
Cab233 cmReference
Speeds
With 14.9-28 R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
