Tractor · 1998Unverified

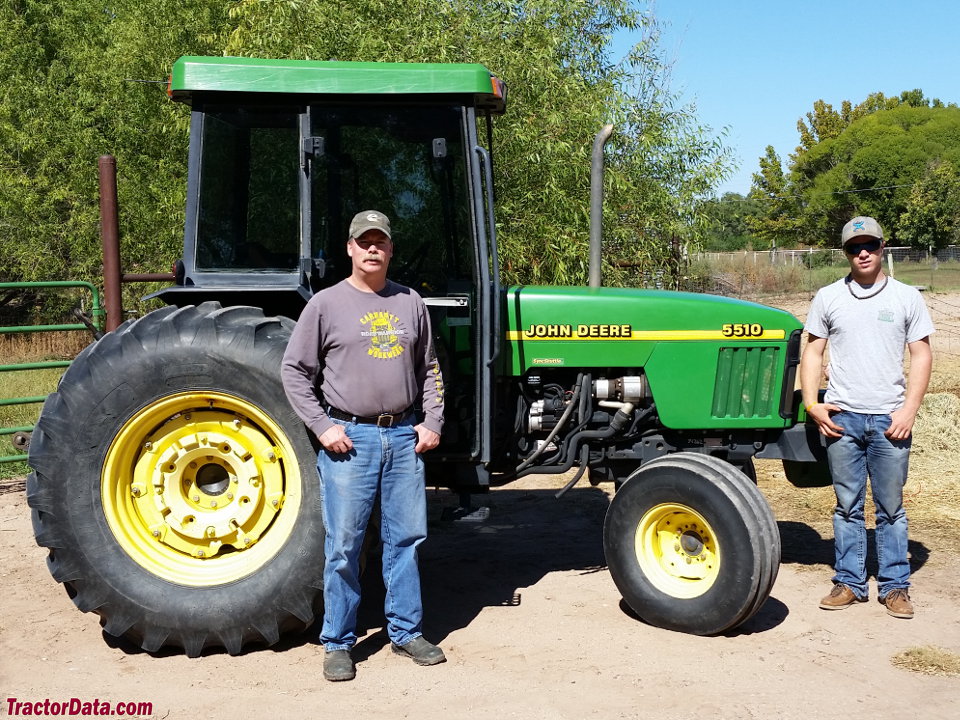

John Deere 5510
John Deere 5510 — Utility tractor · 76 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
76 hp
Max power
61.3 kW
Weight
5720 to 7140 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Augusta, Georgia, USAReference
Original price was $30,214 in 2001Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
5510Nnarrow profileReference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank87.1 LReference
Engine66.4 kWReference
John Deere 4045TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Power66.4 kWReference
Compression17.0:1Reference
Rated RPM2400Reference
Idle RPM825-2600Reference
Operating RPM1600-2400Reference
Torque308.1 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Coolant capacity10.8 LReference
Coolant change2000 hReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity8.5 LReference
Oil change100 hReference
Max power61.3 kWReference
Power at rated engine speed56.9 kWReference
Transmission
9-speed unsynchronized gearReference
9-speed partially synchronizedReference
12-speed power shuttleReference
TransmissionCollarShiftReference
Typeunsynchronized gearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Oil capacity37.9 LReference
The Collar Shift transmission is controlled with two levers and the foot clutch. The right-hand lever selects one of three speeds (1-3) or reverse (R). The left-hand lever selects one of three ranges (A-C). The tractor must be stopped, and clutch used, to shift either speed or range.Reference
TransmissionSyncShuttleReference
Typepartially synchronizedReference
Three speeds (1-3) plus reverse (R) in three ranges (A-C). Synchronized shifting, using the clutch, between the three forward speeds and reverse. Tractor must be stopped, and clutch used, to shift range.Reference
TransmissionPowrReverserReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
Oil capacity43.5 LReference
Four speeds (1-4) in three ranges (A-C) with forward-reverse shuttle lever. Direction changes may be done while moving using the left-hand shuttle lever. Speed changes are synchronized using the clutch. Tractor must be stopped, and clutch used, to shift ranges. At tractor start-up, clutch pedal must be cycled once before tractor will move.Reference
PTO & Hydraulics
PTO (claimed)55.9 kWReference
PTO (tested)61.3 kWReference
Typeopen centerReference
Pressure196.9 barReference
Valves5Reference
Pump flow62.1 lpmReference
Total flow87.1 lpmReference
Steering flow25.0 lpmReference
Steering press.134.8 barReference
Rear TypeI/IIReference
Rear lift (at 24"/610mm)1530 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/540E (SyncShuttle)Reference
Dimensions
Wheelbase217 cmReference
Weight5720 to 7140 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-30Reference
Weight695 kgReference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-30Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference
Length351 cmReference
Width174 cmReference
2WD Clearance (front axle)46 cmReference
4WD Clearance (front axle)39 cmReference
2WD Clearance (drawbar)49 cmReference
4WD Clearance (drawbar)47 cmReference
Shipping2594 kgReference
Shipping3048 kgReference
Shipping2785 kgReference
Shipping3238 kgReference
Max Drawbar759 kgReference
Steering wheel169 cmReference
John Deere 5510 attachments
front-end loaderReference
backhoeReference
5510 Serial Number Location
The tractor's serial number plate is on the right side of the frame, above the front axle.Reference
5510 Serial Numbers
1998150000Reference
1999250001Reference
2000350001Reference
2001450001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps40Reference
Cab Charging amps60Reference
Battery CCA700Reference
Battery volts12Reference
ROPS Battery Group28HReference
Cab Battery Group31Reference
Questions
I was looking at a 5510 online and dont see any hydraulic controls on the right side in the cab. It has 2 rear scvs and the seller says that they work off of the joystick control. Is this right? Correct. The first two SCVs on a 5510 are operated with the joystick. Forward-backward for the left-side coupler and left-right for right-side coupler. If there is a third SCV then there would be an additional lever to the right of the driver's seat.Reference
Attachment overview
John Deere 521 loaderReference
John Deere 541 loaderReference
John Deere 541 Self-Leveling loaderReference
BackhoeReference
John Deere 49 Backhoe
Backhoe typeJohn Deere 49 BackhoeReference
Transport height238 cmReference
2-Foot flat digging depth292 cmReference
Reach from pivot378 cmReference
Loading height233 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2075 kgReference
Dipperstick force1440 kgReference
John Deere 5510 Height
2WD Hood145 cmReference
4WD Hood150 cmReference
ROPS248 cmReference
Height (Folded ROPS)202 cmReference
Cab255 cmReference
Test results
Diesel 9-speed 4WDOctober 16 - 19, 1998Link: Nebraska Tractor Test 1757 fileReference
PTO performanceReference
Fuel use16.7 l/hourReference
Fuel use17.4 l/hourReference
Speeds
With 16.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
