Tractor · 2003Unverified

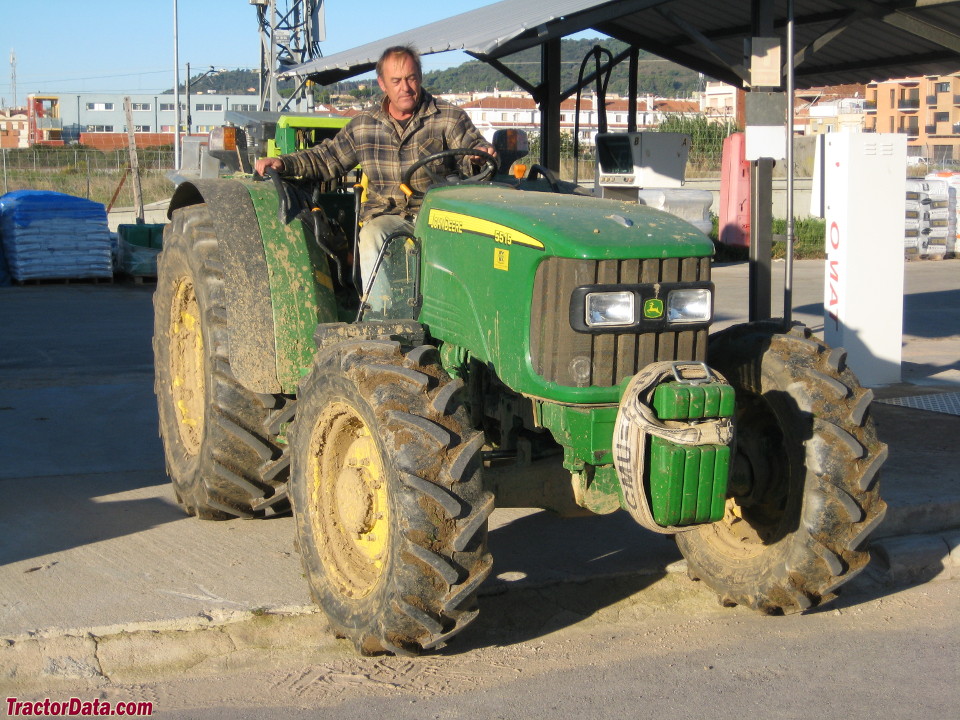

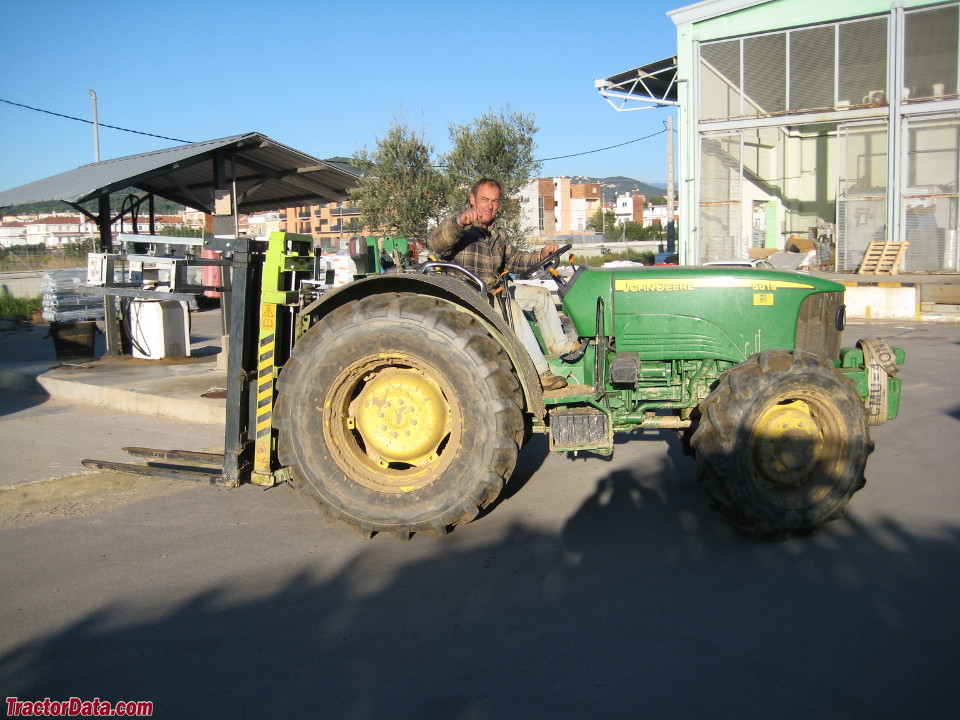

John Deere 5515
John Deere 5515 — Utility tractor · 82 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
82 hp
Weight
6724 to 7055 pounds
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerAgritaliaReference
Utility tractorReference
Built in ItalyReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Variants
5515utilityReference
5515FnarrowReference
5515Vnarrow low-profileReference
5515HCHigh Crop high clearance tractorReference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank96.1 LReference
Engine (gross)61.1 kWReference
Engine (net)59.7 kWReference
John Deere 4045TAT70Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Rated Power (net)59.7 kWReference
Rated Power (gross)61.1 kWReference
Compression17.0:1Reference
Rated RPM2300Reference
Idle RPM825-2510Reference
Operating RPM1200-2300Reference
Torque314.0 NmReference
Torque RPM1500Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Starter power2.8 kWReference
Coolant capacity11.9 LReference
Coolant capacity13.0 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity8.0 LReference
Transmission
12-speed partially synchronizedReference
24-speed partially synchronizedReference
24-speed two-speed power shiftReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Clutchdry discReference
Four gears (1-4) in three ranges (A, B, C) with mechanical shuttle. Gear shifts are synchronized.Reference
Gears24 forward and reverseReference
Mechanical high-low added to base 12-speed transmission.Reference
Typetwo-speed power shiftReference
Gears24 forward and 12 reverseReference
ClutchhydraulicReference
Four gears (1-4) in three ranges (A, B, C) and electronically-shifted high/low. Left-hand power shuttle lever and push-button high/low shift. Push-button electric declutch button on gear shift allows for gear changes without foot clutch.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure131.0 barReference
Pump flow46.9 lpmReference
Pump flow59.8 lpmReference
Steering flow24.6 lpmReference
Steering press.186.2 barReference
Rear Type2/1Reference
Rear lift (at ends)2651 kgReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540/540E/1000Reference
Engine RPM540@1938Reference
Engine RPM540E@1648Reference
Engine RPM1000@1962Reference
Dimensions
Weight6724 to 7055 poundsReference
Length354 cmReference
Clearance (front axle)22 cmReference
Clearance (front axle)27 cmReference
Clearance (front axle)34 cmReference
Clearance (front axle)40 cmReference
Clearance (front axle)43 cmReference
Shipping3050 kgReference
Shipping3200 kgReference
5515 Serial Numbers
Location:Left side of tractor frame above front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40 (ROPS)Reference
Charging amps65 (with cab)Reference
Battery volts12Reference
Battery AH100Reference
Capacities
Max capacity5000 kgReference
Max capacity5100 kgReference
Speeds
With 16.9R30 rear tiresReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
