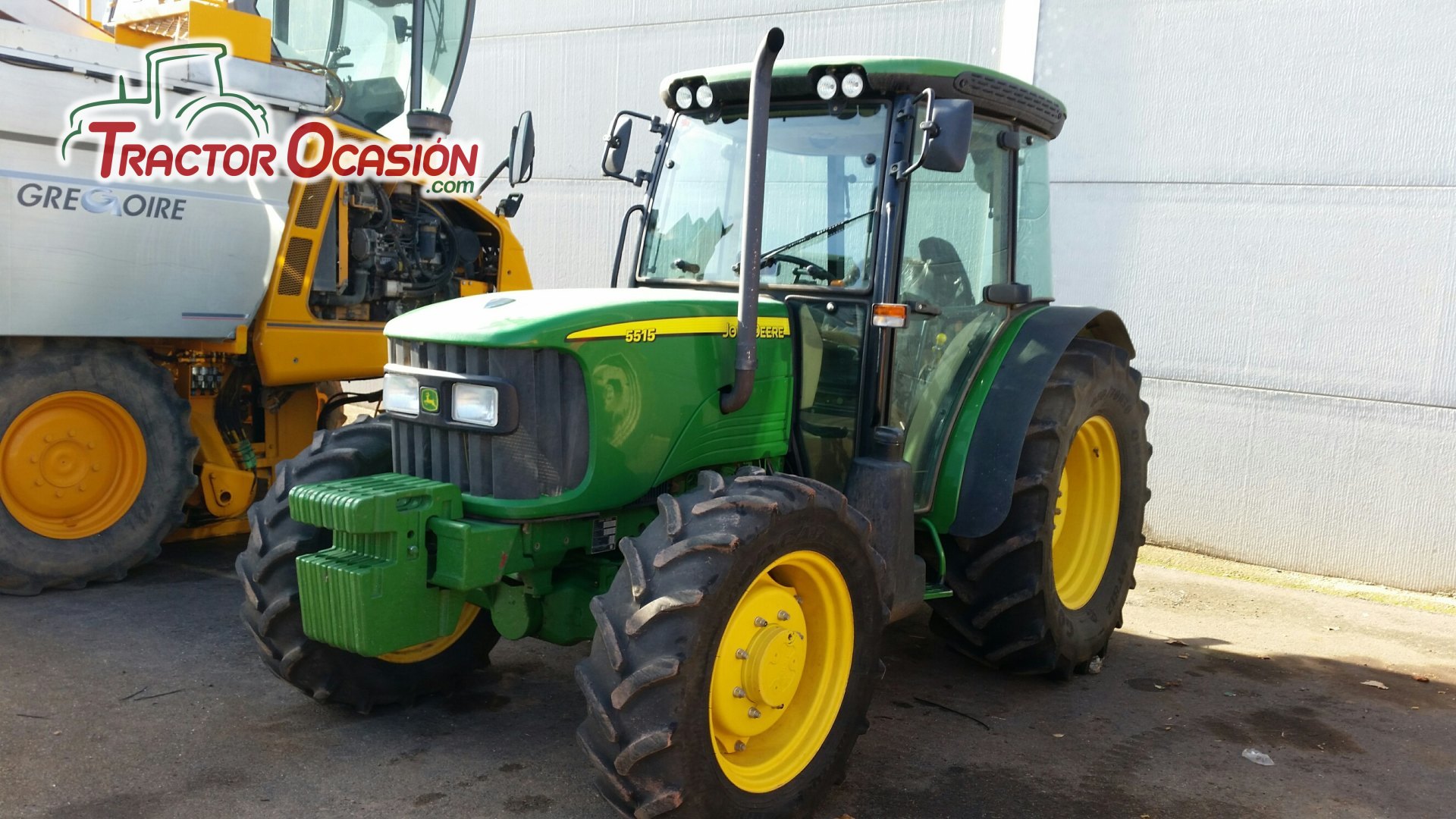

John Deere 5515 Hi-Crop
John Deere 5515 Hi-Crop — Utility tractor · 82 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
82 hp
Weight
7231 to 7496 pounds
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerCarraroReference
Utility tractorReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Trailer brakeshyraulicReference
Four-post ROPS. Cab optional.Reference
Variants
5515utility tractorReference
5515Fnarrow tractorReference
5515Vnarrow low-profile tractorReference
5515HCHigh Crop high clearance tractorReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (gross)61.1 kWReference
Engine (net)59.7 kWReference
John Deere 4045TAT70Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Rated Power (net)59.7 kWReference
Rated Power (gross)61.1 kWReference
Compression17:1Reference
Rated RPM2300Reference
Idle RPM825-2510Reference
Operating RPM1200-2300Reference
Torque314.0 NmReference
Torque RPM1500Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity8.0 LReference
Transmission
12-speed partially synchronizedReference
24-speed partially synchronizedReference
24-speed two-speed power shiftReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Clutchdry discReference
Four gears (1-4) in three ranges (A, B, C) with mechanical shuttle. Gear shifts are synchronized.Reference
Gears24 forward and reverseReference
Mechanical high-low added to base 12-speed transmission.Reference
Typetwo-speed power shiftReference
Gears24 forward and 12 reverseReference
ClutchhydraulicReference
Four gears (1-4) in three ranges (A, B, C) and electronically-shifted high/low. Left-hand power shuttle lever and push-button high/low shift. Push-button electric declutch button on gear shift allows for gear changes without foot clutch.Reference
Capacities
Fuel79.9 LReference
Rear axle3.0 LReference
PTO & Hydraulics
Typeopen centerReference
Pressure131.0 barReference
Pump flow46.9 lpmReference
Pump flow59.8 lpmReference
Steering flow24.6 lpmReference
Steering press.186.2 barReference
Rear TypeII/IReference
Rear lift2447 kgReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Engine RPM540@1938Reference
Engine RPM540E@1648Reference
Engine RPM1000@1962Reference
Dimensions
2WD Wheelbase199 cmReference
4WD Wheelbase217 cmReference
Weight7231 to 7496 poundsReference
Front tire7.50-20Reference
Rear tire13.6R38Reference
Ag front7.50-20Reference
Ag front9.5R44Reference
Ag rear13.6R38Reference
Ag rear15.5R38Reference
Ag rear9.5R44Reference
Length385 cmReference
Width166 cmReference
Height (ROPS)264 cmReference
Height (cab)270 cmReference
2WD Shipping weight3279 kgReference
4WD Shipping weight3400 kgReference
2WD Clearance (front axle)77 cmReference
4WD Clearance (front axle)62 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps40Reference
Cab Charging amps65Reference
Battery volts12Reference
Speeds
With 15.5R38 rear tires. Reverse speeds are about 15% slower than foward.Reference
