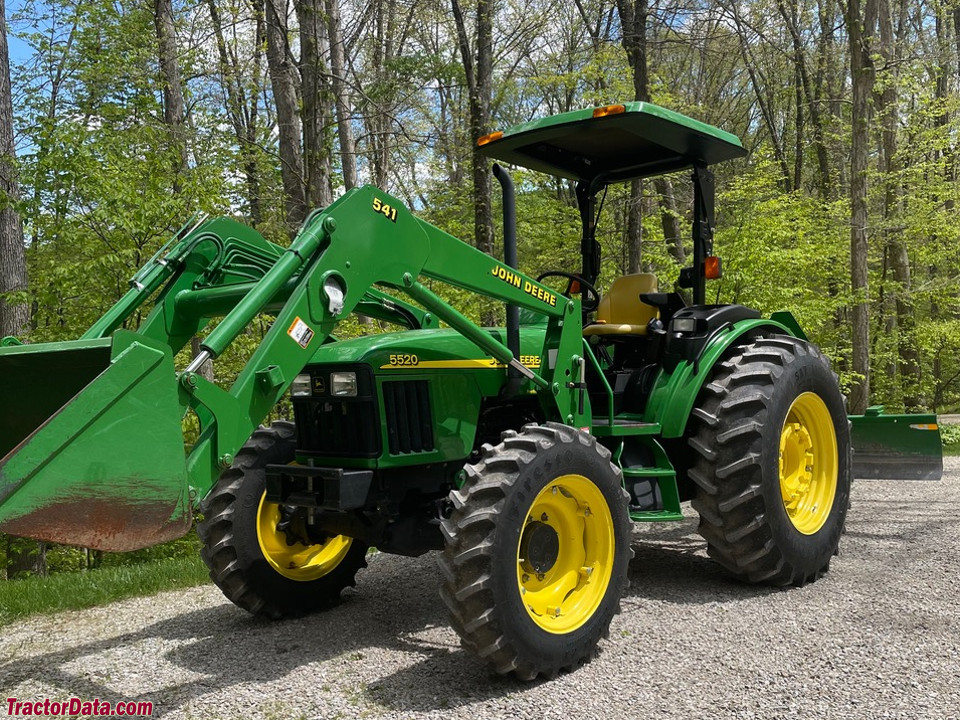

John Deere 5520
John Deere 5520 — Utility tractor · 76 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
76 hp
Max power
61.3 kW
Weight
4809 to 7264 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Augusta, Georgia, USAReference
Original price$31,000 (2004)Reference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
ROPS with straddle-mount platform. Optional ROPS with isolated platform (IOOS). Optional cab.Reference
Variants
5520utilityReference
5520Nnarrow chassisReference
5520HChigh-cropReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine66.4 kWReference
John Deere 4045DReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Power66.4 kWReference
Compression17.0:1Reference
Rated RPM2400Reference
Idle RPM825-2625Reference
Operating RPM1600-2400Reference
Torque308.1 NmReference
Torque RPM1500Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Coolant capacity10.8 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity8.5 LReference
Oil change100 hReference
Max power61.3 kWReference
Power at rated engine speed56.9 kWReference
Transmission
9-speed collar shiftReference
9-speed partially synchronizedReference
12-speed power shuttleReference
ManufacturerJohn DeereReference
Typecollar shiftReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Oil capacity37.9 LReference
Three gears (1-3) plus reverse (R) in three ranges (A-C). Tractor must be stopped, and clutch used, to shift gears or range.Reference
TransmissionJohn Deere SyncShuttleReference
Typepartially synchronizedReference
Three gears (1-3) plus reverse (R) in three ranges (A-C). Gear and direction shifts are synchronized enabling shifting on the move with the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference
TransmissionJohn Deere PowrReverserReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
Oil capacity43.5 LReference
Four gears (1-4) in three ranges (A-C) with left-hand directional lever. Forward-reverse directional shifts may be done while moving, without the clutch. Gear shifts are synchronized. Tractor must be stopped to shift ranges.Reference
PTO & Hydraulics
PTO (claimed)55.9 kWReference
PTO (tested)61.3 kWReference
Hydraulic system37.9 LReference
Hydraulic system43.5 LReference
Typeopen centerReference
Capacity37.9 LReference
Capacity43.5 LReference
Pressure193.1 barReference
Valves2 to 3Reference
Pump flow60.2 lpmReference
Steering flow25.0 lpmReference
Steering press.131.0 barReference
Rear TypeII/IReference
Rear lift (at 24"/610mm)1530 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/540EReference
Engine RPM540@2400Reference
Engine RPM540E@1700Reference
Capacities
Fuel83.3 LReference
Fuel94.6 LReference
Fuel102.2 LReference
Fuel111.7 LReference
Front axle6.2 LReference
Front hubs0.7 LReference
Front diff.4.9 LReference
Dimensions
ROPS Wheelbase217 cmReference
2WD cab Wheelbase215 cmReference
4WD cab Wheelbase218 cmReference
Weight4809 to 7264 poundsReference
Front tire7.50-16Reference
Rear tire16.9-30Reference
Weight695 kgReference
Ag front7.50-16Reference
Ag rear16.9-30Reference
ROPS Length384 cmReference
2WD cab Length369 cmReference
4WD cab Length375 cmReference
ROPS Width188 cmReference
Cab Width196 cmReference
2WD Ground clearance47 cmReference
4WD Ground clearance44 cmReference
2WD straddle ROPS Shipping2181 kgReference
4WD straddle ROPS Shipping2653 kgReference
2WD IOOS ROPS Shipping2324 kgReference
4WD IOOS ROPS Shipping2795 kgReference
2WD cab Shipping2823 kgReference
4WD cab Shipping3294 kgReference
Max Drawbar759 kgReference
Max Drawbar1120 kgReference
Max front axle2131 kgReference
Max front axle3197 kgReference
Max front axle2095 kgReference
Max front axle2816 kgReference
Max rear axle3792 kgReference
Straddle Steering wheel166 cmReference
IOOS Steering wheel183 cmReference
John Deere 5520 attachments
front-end loaderReference
backhoeReference
5520 Serial Numbers
Location:The tractor's serial number plate is on the right side of the frame, above the front axle.Reference
2002250001Reference
2003350001Reference
2004450001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery CCA700 (early)Reference
Battery CCA950 (late)Reference
Battery volts12Reference
Battery Group31Reference
Attachment overview
John Deere 521 loaderReference
John Deere 541 loaderReference
BackhoeReference
John Deere 49 Backhoe
Backhoe typeJohn Deere 49 BackhoeReference
Transport height238 cmReference
2-Foot flat digging depth292 cmReference
Reach from pivot378 cmReference
Loading height233 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2075 kgReference
Dipperstick force1440 kgReference
John Deere 5520 Height
2WD Hood136 cmReference
4WD Hood140 cmReference
ROPS245 cmReference
IOOS ROPS265 cmReference
Height (Folded ROPS)199 cmReference
IOOS Height (Folded ROPS)217 cmReference
Cab255 cmReference
Test results
Diesel 9-speed 4WDOctober 16 - 19, 1998Link: Nebraska Tractor Test 1757 fileReference
PTO performanceReference
Fuel use16.7 l/hourReference
Fuel use17.4 l/hourReference
Speeds
With 16.9-30 R1 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
