Tractor · 2001Unverified

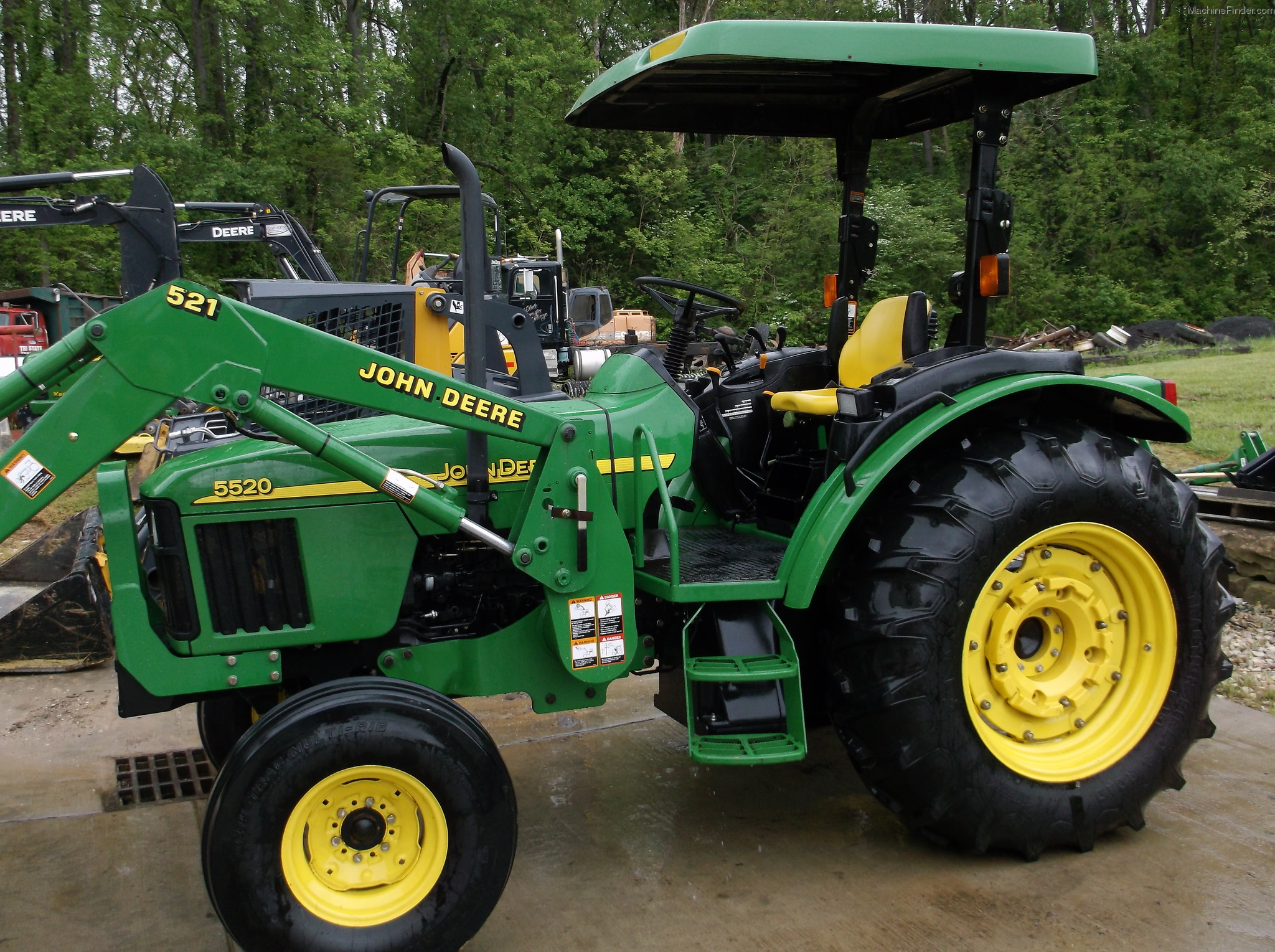

John Deere 5520 Hi-Crop

Name: John Deere 5520 Hi-Crop
Brand: John Deere

John Deere 5520 Hi-Crop — High-Clearance tractor · 75 hp. Reference specifications; pending source verification.

The John Deere 5520 Hi-Crop is a tractor with an output of approximately 75 horsepower, a mid-range rating for its class. It was manufactured from 2001 to 2004. It features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a 12-speed gearbox. Its listed operating weight is 3240 kg, and it is designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

75 hp

Weight

3240 kg

Catalogue coverage

Variants represented

Richest spec table

90 rows

Recorded power

75 hp

Recorded weight

3240 kg

Transmissions

12-speed unsynchronized

Production years

2001-2004

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

High-Clearance tractorReference

Built in Augusta, Georgia, USAReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post folding ROPS.Reference

Variants

5520utilityReference

5520Nnarrow chassisReference

5520HChigh-cropReference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank83.3 LReference

Engine66.4 kWReference

John DeereReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

Power66.4 kWReference

Pre-heatingair intake heaterReference

Pre-heatingcoolant heaterReference

Rated RPM2400Reference

Idle RPM1600-2400Reference

StarterelectricReference

Starter volts12Reference

Oil capacity8.5 LReference

Coolant capacity10.8 LReference

Transmission

12-speed unsynchronizedReference

12-speed synchronizedReference

16-speed power shuttleReference

TypeunsynchronizedReference

Gears12 forward and 4 reverseReference

Clutchdry discReference

Oil capacity64.4 LReference

Three gears, plus reverse, in three ranges. Tractor must be stopped, and clutch used, to shift gears or ranges.Reference

TransmissionSyncShuttleReference

TypesynchronizedReference

Three gears, plus reverse, in three ranges. Gear shifts are synchronized. Tractor must be stopped, and clutch used, to shift ranges.Reference

TransmissionPowrReverserReference

Typepower shuttleReference

Gears16 forward and reverseReference

Clutchhydraulic wet discReference

Oil capacity71.9 LReference

Four gears in four ranges with power shuttle. Gear shifts are synchronized. Tractor must be stopped, and clutch used, to shift ranges.Reference

PTO & Hydraulics

PTO (claimed)55.9 kWReference

Typeopen centerReference

Pressure190.0 barReference

Rear valves0 to 3Reference

Mid valves2Reference

Pump flow60.2 lpmReference

Total flow85.2 lpmReference

Steering flow25.0 lpmReference

Steering press.134.9 barReference

Rear TypeIIReference

Controltop-link draft sensingReference

Rear lift (at 24"/610mm)1530 kgReference

Rear ArmstelescopicReference

Rear PTOindependentReference

Clutch280mm discReference

Rear PTO Type540Reference

Rear PTO Type540/540EReference

Rear PTO Type1000Reference

Engine RPM540@2400Reference

Engine RPM540E@1700Reference

Dimensions

Wheelbase217 cmReference

Weight3240 kgReference

Front tire13.6-38Reference

Rear tire13.6-38Reference

Standard tires (ag)Front: 13.6-38. Rear: 13.6-38Reference

Optional tires (ag)Front: 230/95R-40. Rear: 230/95R-40Reference

Length384 cmReference

Width237 cmReference

Clearance (front axle)64 cmReference

Front axle1638 mmReference

Flange rear axle1638 mmReference

Front tread139/149/160/169/179/189/199 cmReference

Rear tread139/149/160/169/179/189/199 cmReference

Shipping3240 kgReference

Max Drawbar1120 kgReference

Max Drawbar759 kgReference

Steering wheel202 cmReference

Electrical

GroundnegativeReference

Charging amps40Reference

Battery CCA950Reference

Battery volts12Reference

John Deere 5520 Hi-Crop Height

Hood174 cmReference

ROPS280 cmReference

Speeds

With 13.6-38 rear tires.Reference

With 13.6-38 rear tires. Reverse speeds are 15% faster than forward.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
