Tractor · 2001Unverified

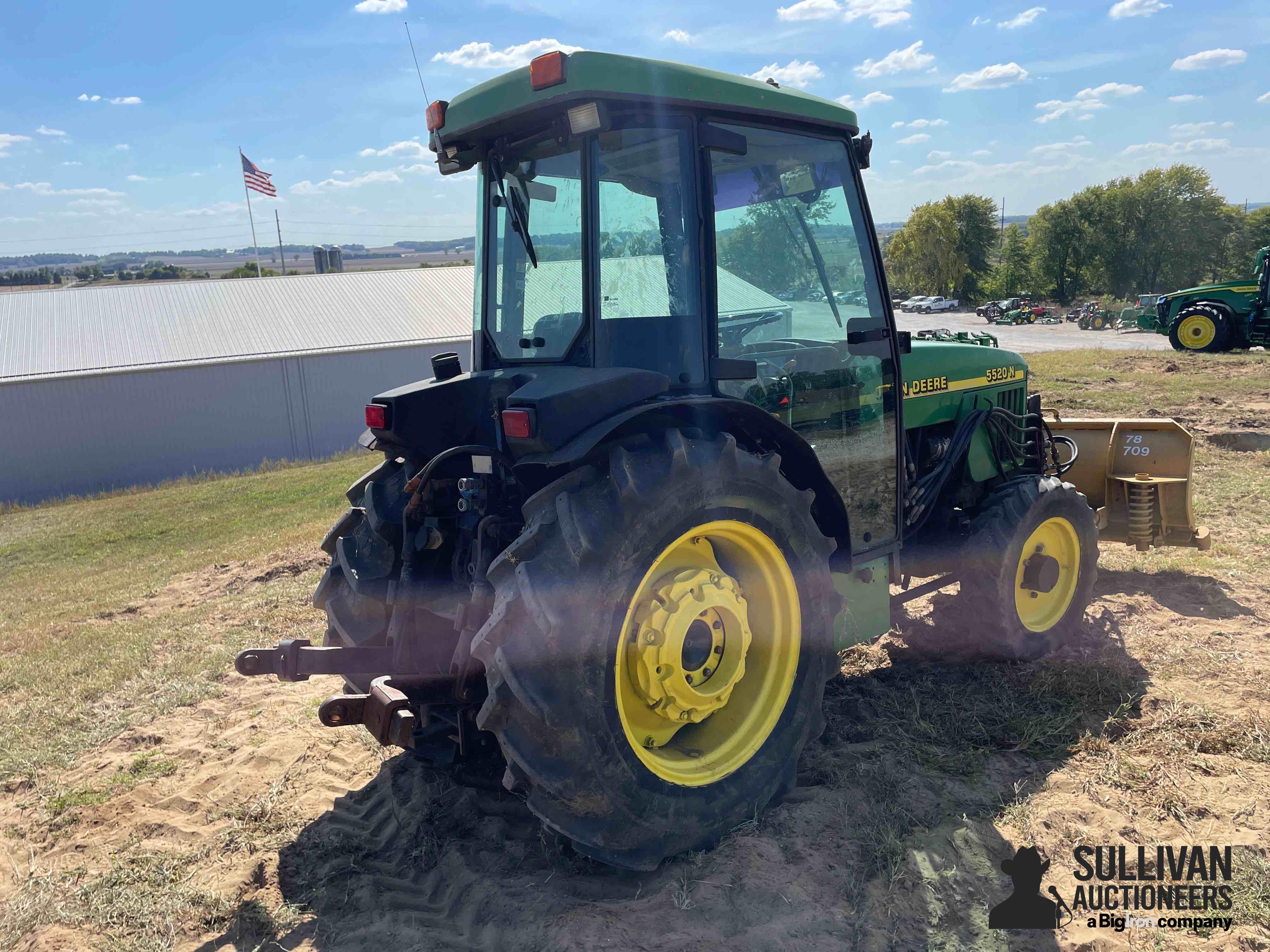

John Deere 5520N

Name: John Deere 5520N
Brand: John Deere

John Deere 5520N — Orchard/Vineyard tractor · 75 hp. Reference specifications; pending source verification.

The John Deere 5520N is a tractor with a rated power output of approximately 75 hp, falling within the mid-range of its class. It was manufactured from 2001 to 2004. The 5520N features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with a mechanical front-wheel drive system and a hydrostatic transmission. Its operating weight ranges from 4983 to 5790 pounds, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

75 hp

Weight

4983 to 5790 pounds

Catalogue coverage

Variants represented

Richest spec table

91 rows

Recorded power

75 hp

Transmissions

12-speed partially synchronized

Production years

2001-2004

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Orchard/Vineyard tractorReference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS. Cab optional.Reference

Variants

5520utility chassisReference

Engine

John Deere 4.6L 4-cyl dieselReference

John Deere 4045TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.6 LReference

Bore/Stroke106 x 127 mmReference

Compression17.0:1Reference

Rated RPM2400Reference

Idle RPM825-2625Reference

Operating RPM1600-2400Reference

Torque307.8 NmReference

Torque RPM1400Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.457 mmReference

Oil capacity8.5 LReference

Oil change100 hReference

Transmission

12-speed partially synchronizedReference

TransmissionJohn Deere SyncReverserReference

Typepartially synchronizedReference

Gears12 forward and reverseReference

Oil capacity41.6 LReference

Four gears (1-4) in three ranges (A-C) with left-hand reverser lever. Directional changes (forward-reverse) and gear shifts (1-4) are synchronized and can be performed while moving by using the clutch. The tractor must be stopped, and clutch used, to shift ranges (A-C).Reference

PTO & Hydraulics

PTO (claimed)55.9 kWReference

Hydraulic system41.6 LReference

Typeopen centerReference

Capacity41.6 LReference

Pressure193.1 barReference

Valves2 to 3Reference

Pump flow60.2 lpmReference

Steering flow25.0 lpmReference

Steering press.131.0 barReference

Rear TypeII/I/INReference

Rear lift (at 24"/610mm)1530 kgReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Engine RPM540@2400Reference

Engine RPM540E@1700Reference

Capacities

Fuel60.6 LReference

Fuel71.9 LReference

Front axle5.0 LReference

Front hubs0.6 LReference

Dimensions

Wheelbase208 cmReference

Weight4983 to 5790 poundsReference

Front tire6.5-16Reference

Rear tire12.4-24 (2WD)Reference

Standard tires (ag)Front: 6.5-16. Rear: 12.4-24 (2WD)Reference

Standard tires (ag)Front: 8.3-16. Rear: 12.4-24 (4WD)Reference

Length337 cmReference

Width139 cmReference

Width190 cmReference

Clearance (front axle)35 cmReference

Clearance (drawbar)45 cmReference

Shipping2260 kgReference

Shipping2485 kgReference

Shipping2400 kgReference

Shipping2626 kgReference

Max front axle1458 kgReference

Max front axle2426 kgReference

Max front axle2494 kgReference

Max front axle3736 kgReference

Steering wheel147 cmReference

Steering wheel152 cmReference

5520N Serial Number Location

Serial number plate located on front-right tractor frame, above the front axle.Reference

5520N Serial Numbers

2003358001Reference

2004458001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40 (ROPS)Reference

Charging amps65 (cab)Reference

Battery CCA700 (early)Reference

Battery CCA950 (late)Reference

Battery volts12Reference

Battery Group28H (ROPS)Reference

Battery Group31 (cab)Reference

John Deere 5520N Height

Hood140 cmReference

ROPS260 cmReference

Cab233 cmReference

Speeds

With 14.9-28 R1 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
