Tractor · 2005Unverified

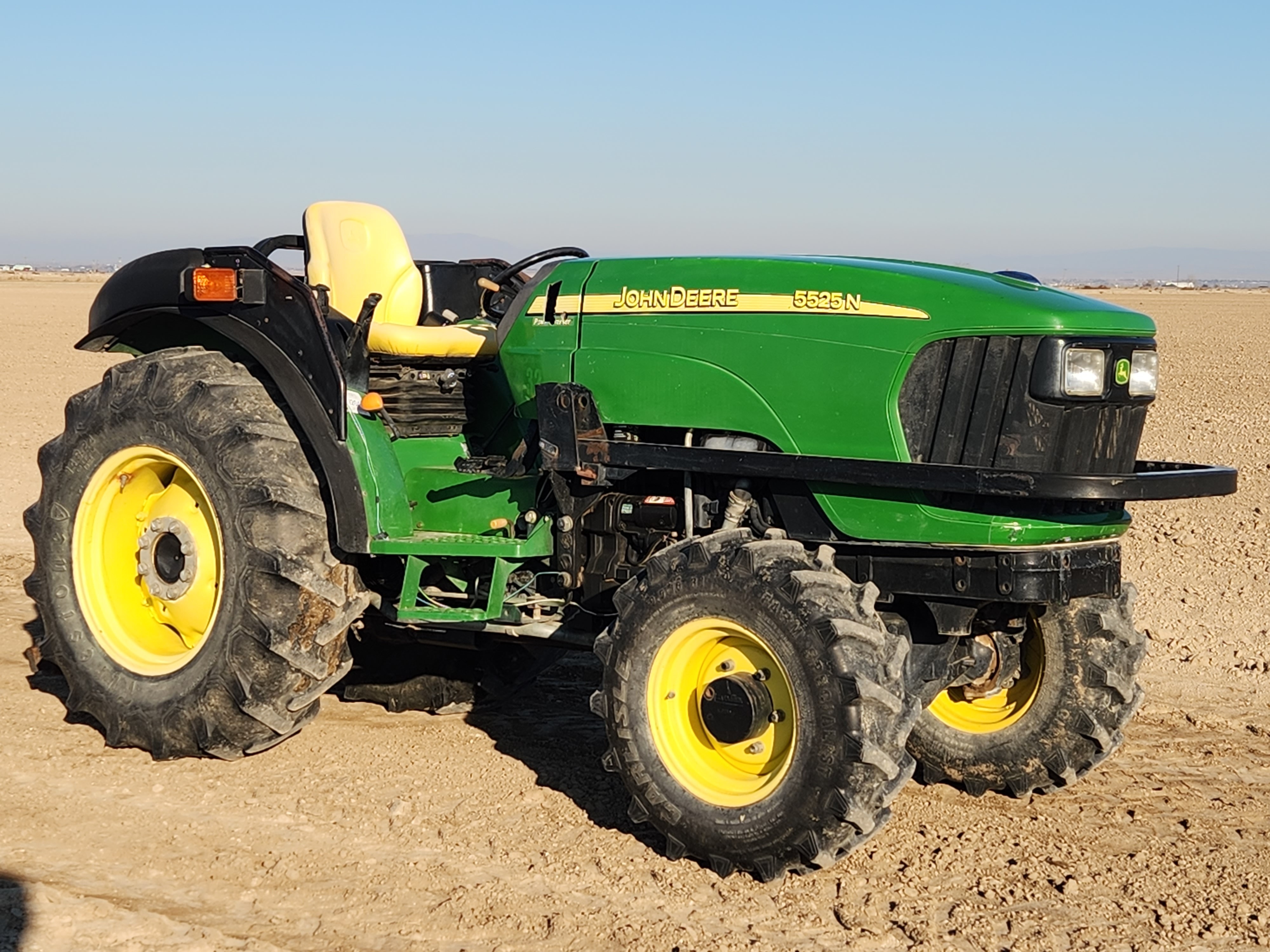

John Deere 5525N

Name: John Deere 5525N
Brand: John Deere

John Deere 5525N — Orchard/Vineyard tractor · 91 hp. Reference specifications; pending source verification.

The John Deere 5525N is a tractor with a rated output of 91 horsepower, positioning it in the middle of its class in terms of power. This model was manufactured from 2005 to 2008. The tractor features a 4-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system via a hydrostatic transmission. Its weight ranges from 5483 to 5837 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

91 hp

Weight

5483 to 5837 pounds

Catalogue coverage

Variants represented

Richest spec table

102 rows

Recorded power

91 hp

Transmissions

12-speed partially synchonized

Production years

2005-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Orchard/Vineyard tractorReference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post mid-mount folding ROPS. Cab optional.Reference

Variants

5525utilityReference

5525Nnarrow-profileReference

5525 Hi-Crophigh-clearanceReference

Engine

John Deere 4.5L 4-cyl dieselReference

Engine (gross)67.9 kWReference

John Deere 4045Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

Power (gross)67.9 kWReference

Fuel systemdirect injectionReference

Cooling systemviscous drive fan with single thermostatReference

Air cleanerdry dual elementReference

Compression17.6:1Reference

Rated RPM2400Reference

Idle RPM825-2625Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity11.4 LReference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.457 mmReference

Oil capacity8.5 LReference

Oil change300 hReference

Oil change500 h (Deere PLUS-50)Reference

Transmission

12-speed partially synchonizedReference

24-speed two-speed power shiftReference

TransmissionPowrReverserReference

Typepartially synchonizedReference

Gears12 forwardReference

Oil capacity43.5 LReference

Oil type[-40o↔30oC]Reference

-10o↔122oF [-23o↔50oC]: JD Hy-GardReference

-40o↔86oF [-40o↔30oC]: JD Low-Viscosity Hy-GardReference

Four gears (1-4) in three ranges (A-C) with left-hand power shuttle. Gears may be shifted on the move, using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference

TransmissionHi/Lo PowrReverserReference

Typetwo-speed power shiftReference

Gears24 forward and reverseReference

Oil capacity45.4 LReference

Four gears (1-4) in three ranges (A-C) with left-hand power shuttle and two-speed push-button power shift. Gears may be shifted on the move, using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference

PTO & Hydraulics

PTO (claimed)55.9 kWReference

Hydraulic system43.5 LReference

Hydraulic system45.4 LReference

Typeopen centerReference

Capacity43.5 LReference

Capacity45.4 LReference

Pressure195.0 barReference

Rear valves2 or 3Reference

Mid valves2 (optional)Reference

Pump flow69.6 lpmReference

Steering flow94.2 lpmReference

Steering press.131.0 barReference

Rear TypeII/IReference

Controltop link draft sensingReference

Rear lift (at 24"/610mm)1530 kgReference

Rear PTOindependentReference

ClutchElectro-hydraulicReference

Rear PTO Type540/540E (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540E@1700Reference

Engine RPM540@2400Reference

Engine RPM1000@2400Reference

Capacities

Fuel71.9 LReference

Front hubs0.6 LReference

Front diff.5.0 LReference

Dimensions

2WD Wheelbase218 cmReference

4WD Wheelbase207 cmReference

Weight5483 to 5837 poundsReference

Length384 cmReference

Width187 cmReference

Width114 cmReference

Width115 cmReference

Width125 cmReference

2WD Ground clearance48 cmReference

4WD Ground clearance45 cmReference

Shipping2487 kgReference

Shipping2647 kgReference

Shipping2550 kgReference

Shipping2623 kgReference

Steering wheel167 cmReference

5525N Serial Numbers

Location:Front left side of tractor frame, above front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps70 (ROPS)Reference

Charging amps90 (Cab)Reference

Charging amps120 (optional)Reference

Battery CCA750Reference

Battery volts12Reference

Battery GroupBCI 31Reference

John Deere 5525N Height

Hood140 cmReference

ROPS246 cmReference

ROPS195 cmReference

Cab254 cmReference

Speeds

With 12.4-24 rear tires. Reverse speeds about 10% faster than forward.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
