Industrial Tractor · 1988Unverified

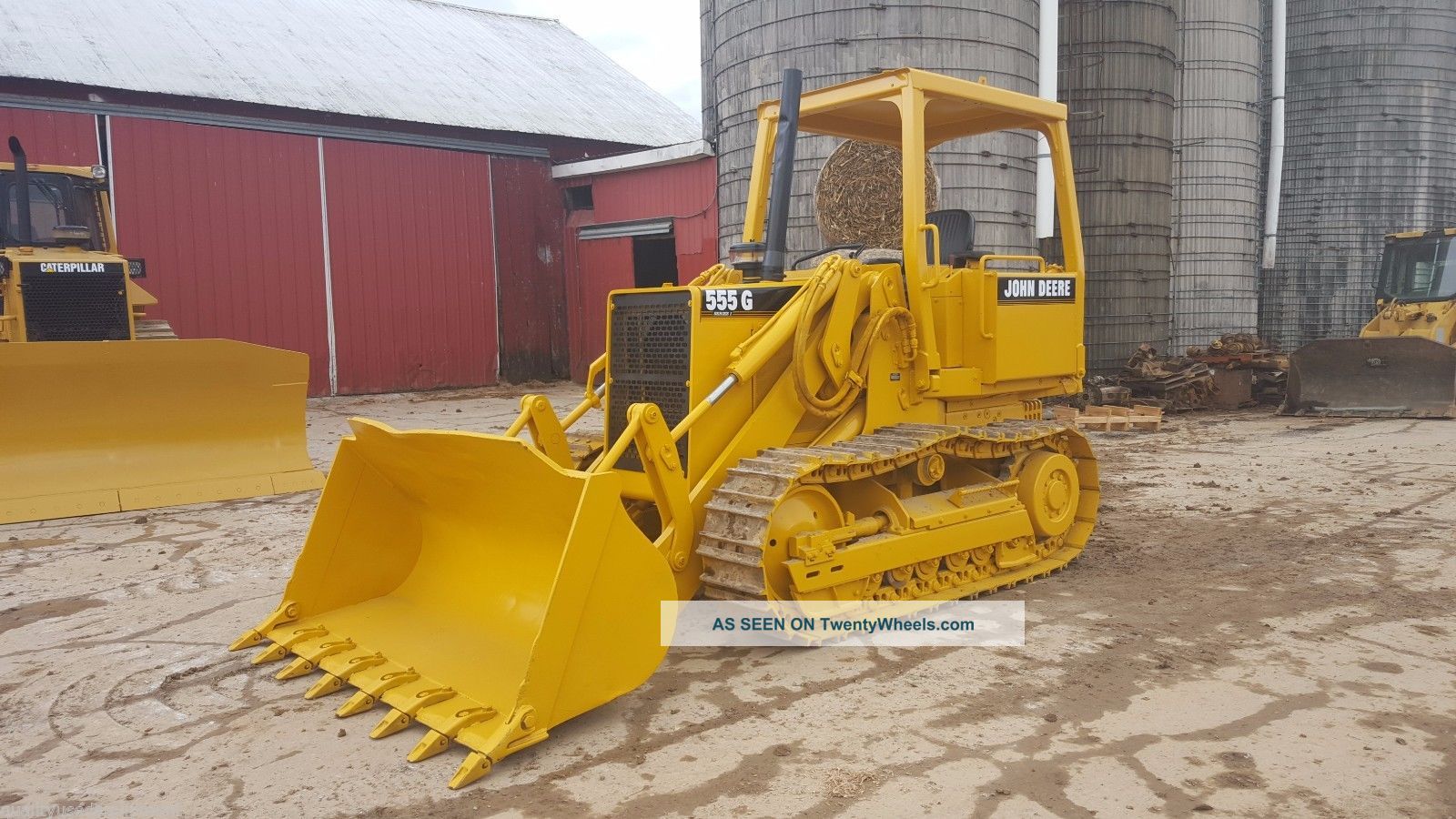

John Deere 555G
John Deere 555G — Crawler Loader · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
9117 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Crawler LoaderReference
DrivecrawlerReference
Four-post ROPS canopy. Cab available.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank155.2 LReference
Engine (gross)70.8 kWReference
Engine (net)67.1 kWReference
John Deere 4-276TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Power (net)67.1 kWReference
Power (gross)70.8 kWReference
Air cleanerdryReference
Compression17.2:1Reference
Rated RPM2100Reference
Torque397.3 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity12.3 LReference
Coolant capacity17.0 LReference
Transmission
4-speed power shiftReference
Typepower shiftReference
Gears4 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure179.3 barReference
Pump flow143.8 lpmReference
Dimensions
Weight9117 kgReference
16-inch tracksReference
Length462 cmReference
Height (ROPS)275 cmReference
Operating weight9117 kgReference
Gauge154 cmReference
Gauge175 cmReference
John Deere 555G attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
John Deere 555G Tracks
Width40 cmReference
Length on ground200 cmReference
Area on ground1.6 m²Reference
Ground pressure0.5 barReference
Wide-track width60 cmReference
Wide-track length on ground200 cmReference
Wide-track area on ground2.4 m²Reference
Wide-track ground pressure0.4 barReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
