Tractor · 1996Unverified

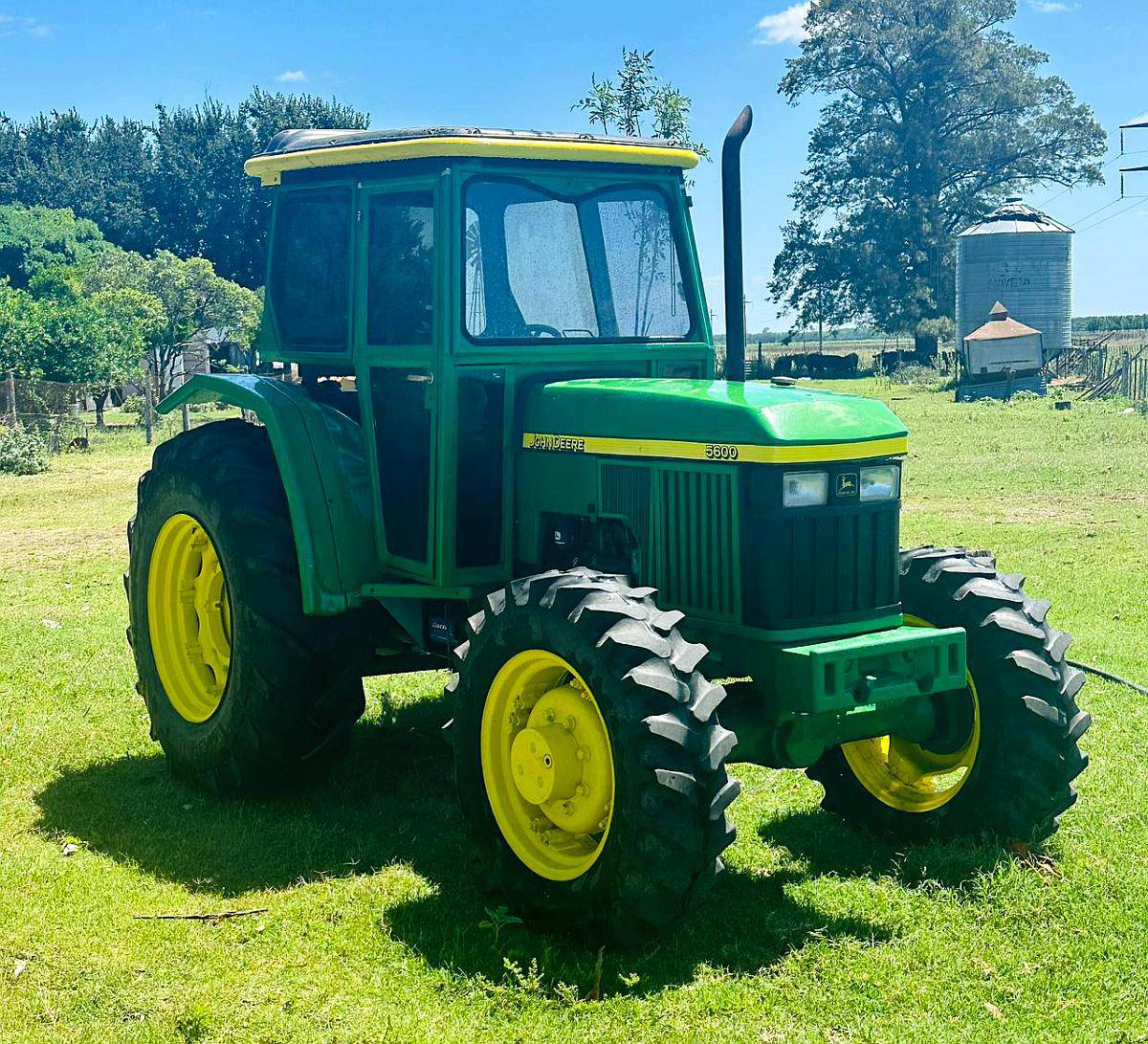

John Deere 5600

Name: John Deere 5600
Brand: John Deere

John Deere 5600 — Utility tractor · 64 hp. Reference specifications; pending source verification.

The John Deere 5600 is a compact tractor rated at 64 hp, making it one of the smaller models in its class. Manufactured from 1996 to 1999, it features a 4-cylinder diesel liquid-cooled engine, which drives the four-wheel drive system through a 9-speed gearbox. The listed weight of the tractor ranges from 7341 to 7760 pounds, and it is suitable for tasks on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

64 hp

Weight

7341 to 7760 pounds

Catalogue coverage

Variants represented

Richest spec table

54 rows

Recorded power

64 hp

Transmissions

9-speed partially synchronized

Production years

1996-1999

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Horizontina, BrazilReference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Hydraulic wet disc brakesReference

ROPS.Reference

Engine

John Deere 3.9L 4-cyl dieselReference

Fuel tank101.1 LReference

Engine55.9 kWReference

John Deere 4039DReference

dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement3.9 LReference

Bore/Stroke106 x 110 mmReference

Power55.9 kWReference

Compression17.8:1Reference

Rated RPM2400Reference

Operating RPM1600-2400Reference

Torque263.1 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Oil capacity12.0 LReference

Coolant capacity15.0 LReference

Transmission

9-speed partially synchronizedReference

TransmissionJohn Deere Top-Shaft Synchronized (TSS)Reference

Typepartially synchronizedReference

Gears9 forward and 3 reverseReference

Oil capacity40.0 LReference

Three gears (1-3) in three ranges (A-C) plus reverse (R). Gear shifts are synchronized with the clutch. Tractor must be stopped, and clutch used, to shift range.Reference

PTO & Hydraulics

PTO (claimed)47.7 kWReference

Typeopen centerReference

Pump flow40.1 lpmReference

Rear TypeIIReference

Controltop-link draft sensingReference

Rear lift (at 24"/610mm)1799 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Dimensions

Weight7341 to 7760 poundsReference

2WD Shipping3329 kgReference

4WD Shipping3519 kgReference

2WD Ballasted4560 kgReference

4WD Ballasted5100 kgReference

5600 Serial Numbers

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging amps52Reference

Charging voltsalternatorReference

Battery CCA700Reference

Battery volts12Reference

Battery AH100Reference

Speeds

With 18.4-30 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
