Tractor · 2003Unverified

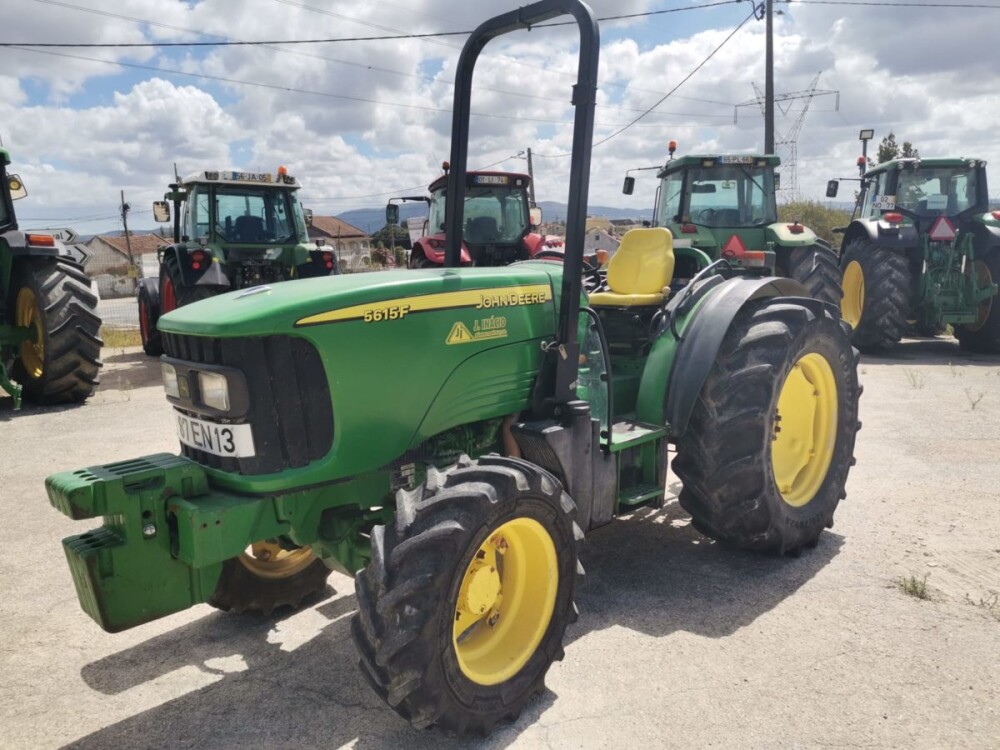

John Deere 5615 F

Name: John Deere 5615 F
Brand: John Deere

John Deere 5615 F — Orchard/Vineyard tractor · 88 hp. Reference specifications; pending source verification.

The John Deere 5615 F is a tractor with an approximate power rating of 88 hp, falling within the mid-range of its class. Manufactured from 2003 to 2008, this model is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine, four-wheel drive and a powershift transmission. Its operating weight is listed as 5776 to 6460 pounds, and it is suitable for use on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

88 hp

Weight

5776 to 6460 pounds

Catalogue coverage

Variants represented

Richest spec table

88 rows

Recorded power

88 hp

Recorded weight

2619 kg

Transmissions

12-speed partially synchronized

Production years

2003-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorJohn DeereReference

ManufacturerAgritaliaReference

Orchard/Vineyard tractorReference

Built in ItalyReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockmechanicalReference

Differential lockelectro-hydraulicReference

Power steeringReference

Wet disc brakesReference

Trailer brakeshydraulicReference

Two-post folding mid-mount ROPS. Cab optional with available air-conditioning.Reference

Variants

5615ForchardReference

5615VvineyardReference

Engine

John Deere 4.5L 4-cyl dieselReference

Fuel tank74.9 LReference

Engine (gross)65.6 kWReference

Engine (net)65.6 kWReference

John DeereReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

EmissionsTier IIReference

Rated Power (net)65.6 kWReference

Rated Power (gross)65.6 kWReference

Compression17:1Reference

Rated RPM2300Reference

Idle RPM825-2510Reference

Operating RPM1200-2300Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed partially synchronizedReference

24-speed partially synchronizedReference

24-speed power shuttleReference

Typepartially synchronizedReference

Gears12 forward and reverseReference

Four synchronized gears (1-4) in three ranges (A-C) with mechanical shuttle. Tractor must be stopped, and clutch used, to shift range.Reference

TransmissionHi-LoReference

Gears24 forward and reverseReference

The Hi-Lo transmission adds an additional two-speed shift to the base transmission. The Hi-Lo can be either electronic or mechanical. Mechanical is operator with a sliding lever and requires the clutch. Electro-hydraulic is a push-button shift.Reference

TransmissionPower ReverserReference

Typepower shuttleReference

Gears24 forward and 12 reverseReference

Four synchronized gears (1-4) in three ranges (A-C) with power shuttle and power shift Hi-Low. Push-button clutch for gear shifting.Reference

PTO & Hydraulics

Typeopen centerReference

Pressure190.0 barReference

Pump flow46.9 lpmReference

Pump flow59.8 lpmReference

Steering flow24.6 lpmReference

Rear TypeII/I/INReference

Controlposition and draft controlReference

Rear lift2447 kgReference

Rear PTOindependentReference

Rear PTO Type540/540EReference

Rear PTO Type540/1000Reference

Engine RPM540@1938Reference

Engine RPM540E@1648Reference

Engine RPM1000@1962Reference

Dimensions

2WD Wheelbase207 cmReference

4WD Wheelbase208 cmReference

Weight5776 to 6460 poundsReference

Front tire250/80R18Reference

F 4WD Rear tire380/70R28Reference

F 4WD Standard tires (ag)Front: 250/80R18. Rear: 380/70R28Reference

Length355 cmReference

F Width133 cmReference

V 2WD Width104 cmReference

V 4WD Width115 cmReference

2WD Shipping weight2619 kgReference

4WD Shipping weight2930 kgReference

F Rear tread99 to 159 cmReference

V Rear tread93 to 121 cmReference

Steering wheel145 cmReference

5615 F Serial Numbers

Location:Serial number plate on the tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps40Reference

Cab Charging amps60Reference

Battery volts12Reference

Battery AH100Reference

John Deere 5615 F Height

ROPS245 cmReference

Cab223 cmReference

Speeds

With 380/70R28 rear tires.Reference

With 380/70R28 rear tires. Reverse speeds are 10% slower than forward.Reference

With 380/70R28 rear tires. Reverse speeds are 10% slower than the forward high range.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
