Tractor · 2007Unverified

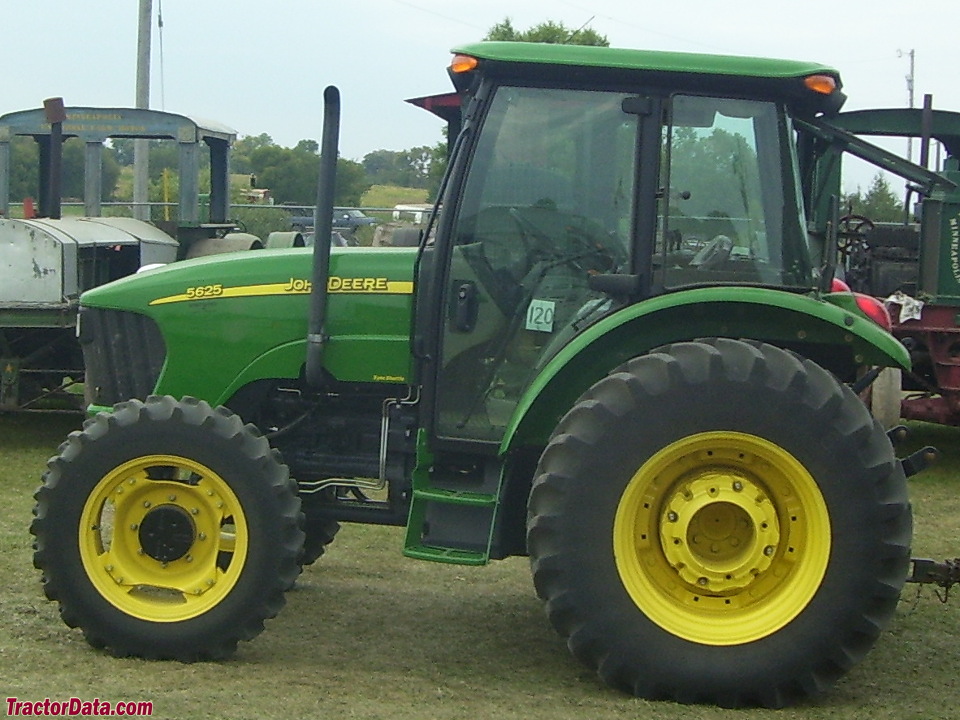

John Deere 5625
John Deere 5625 — Utility tractor · 99 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
99 hp
Max power
65.2 kW
Weight
6030 to 7385 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Augusta, Georgia, USAReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Open operator station with two-post folding ROPS. Optional isolated flat-platform (IOOS). Cab available with air-conditioning.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (gross)73.8 kWReference
John Deere PowerTech 4045Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier IIReference
Power (gross)73.8 kWReference
Air cleanerpaper and felt elementsReference
Rated RPM2400Reference
Idle RPM825-2625Reference
Operating RPM1600-2400Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Coolant capacity11.4 LReference
Oil capacity8.5 LReference
Max power65.2 kWReference
Power at rated engine speed61.8 kWReference
Transmission
9-speed partially synchronizedReference
12-speed power shuttleReference
24-speed two-speed power shiftReference
TransmissionJohn Deere SyncShuttleReference
Typepartially synchronizedReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Oil capacity39.0 LReference
Oil type[30o↔-40oC]Reference
122o↔-10oF [50o↔-23oC]: Hy-GardReference
86o↔-40oF [30o↔-40oC]: Low-Viscosity Hy-GardReference
Three gears (1-3) plus reverse in three ranges (A-C). Gears may be shifted on the move using the clutch. Tractor must be stopped, and clutch used, to shift ranges.Reference
TransmissionJohn Deere PowrReverserReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
Oil capacity43.5 LReference
Four gears (1-4) in three ranges (A-C) with reverser lever. Direction may be changed without using the clutch. Gear shifts are synchronized using the clutch. Tractor must be stopped to shift ranges.Reference
TransmissionJohn Deere PowrReverser Hi/LoReference
Typetwo-speed power shiftReference
Gears24 forward and reverseReference
Oil capacity45.4 LReference
Adds a push-button high-low power shift to the PowrReverser transmission. Gear shifts are synchronized using the clutch. Tractor must be stopped to shift ranges.Reference
PTO & Hydraulics
PTO (claimed)61.1 kWReference
PTO (tested)65.2 kWReference
Hydraulic system39.0 LReference
Hydraulic system43.5 LReference
Hydraulic system45.4 LReference
Typeopen centerReference
Capacity39.0 LReference
Capacity43.5 LReference
Capacity45.4 LReference
Pressure195.0 barReference
Rear valves1 to 3Reference
Mid valves0, 2 or 3Reference
Pump flow69.6 lpmReference
Total flow94.6 lpmReference
Steering flow25.0 lpmReference
Steering press.134.9 barReference
Rear TypeII/IReference
Controltop-link draft sensingReference
Rear lift (at 24"/610mm)1530 kgReference
Rear PTOindependentReference
Clutchdry discReference
Clutchelectro-hydraulic wet disc (24-speed)Reference
Rear PTO Type540Reference
Rear PTO Type540/540EReference
Rear PTO Type540/1000Reference
Engine RPM540@2400Reference
Engine RPM540E@1700Reference
Capacities
Fuel94.6 LReference
Fuel126.8 LReference
Front hubs0.7 LReference
Front diff.4.5 LReference
Dimensions
Wheelbase217 cmReference
Weight6030 to 7385 poundsReference
Front tire11.2-24Reference
Rear tire420/90R30Reference
Standard tires (ag)Front: 11.2-24. Rear: 420/90R30Reference
Length384 cmReference
Clearance (front axle)44 cmReference
Clearance (drawbar)45 cmReference
Flange rear axle1455 mmReference
Shipping2835 kgReference
Shipping2934 kgReference
Shipping3349 kgReference
4WD ROPS Operating2735 kgReference
Max Drawbar759 kgReference
Max Drawbar1120 kgReference
Steering wheel166 cmReference
Steering wheel183 cmReference

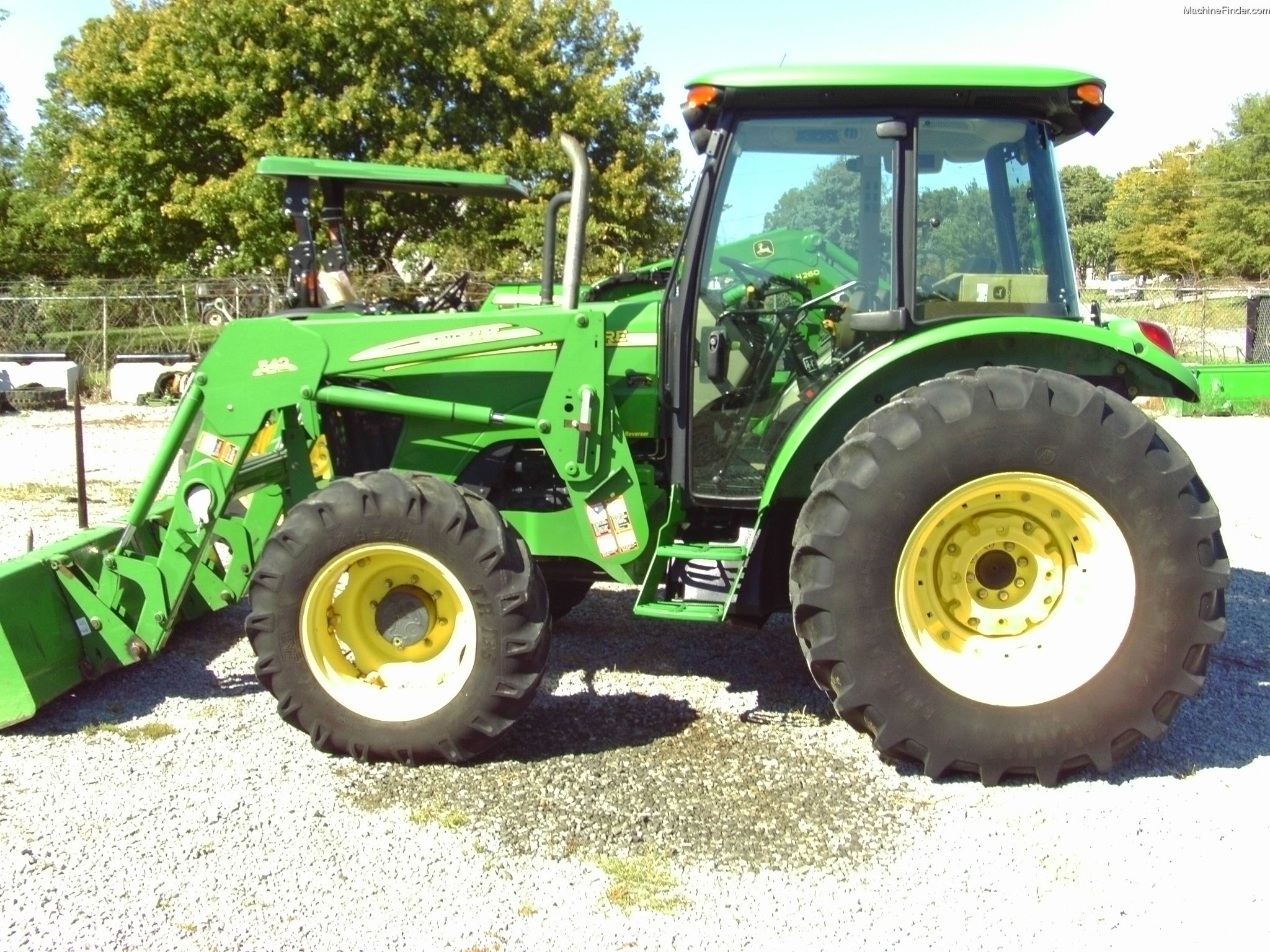

John Deere 5625 attachments
front-end loaderReference
5625 Serial Number Location
Left side of tractor frame above the front axle.Reference
5625 Serial Numbers
2007164002Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps70Reference
Cab Charging amps90Reference
Cab Charging amps120Reference
Battery CCA750Reference
Battery volts12Reference
Battery GroupBCI 31Reference
Attachment overview
John Deere 542 loaderReference
John Deere 542SL loaderReference
John Deere 5625 Height
Hood140 cmReference
ROPS245 cmReference
ROPS265 cmReference
Height (Folded ROPS)199 cmReference
Height (Folded ROPS)217 cmReference
Cab252 cmReference
Exhaust232 cmReference
Exhaust229 cmReference
Test results
Diesel 9/3 4WDSeptember 7 - 11, 2007Link: Nebraska Tractor Test 1906 fileReference
PTO performanceReference
Fuel use20.8 l/hourReference
Fuel use21.2 l/hourReference
Speeds
With 16.9-30 rear tires.Reference
With 16.90-30 rear tires. Reverse speeds are 10% faster than forward speeds.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
