Tractor · 1996Unverified

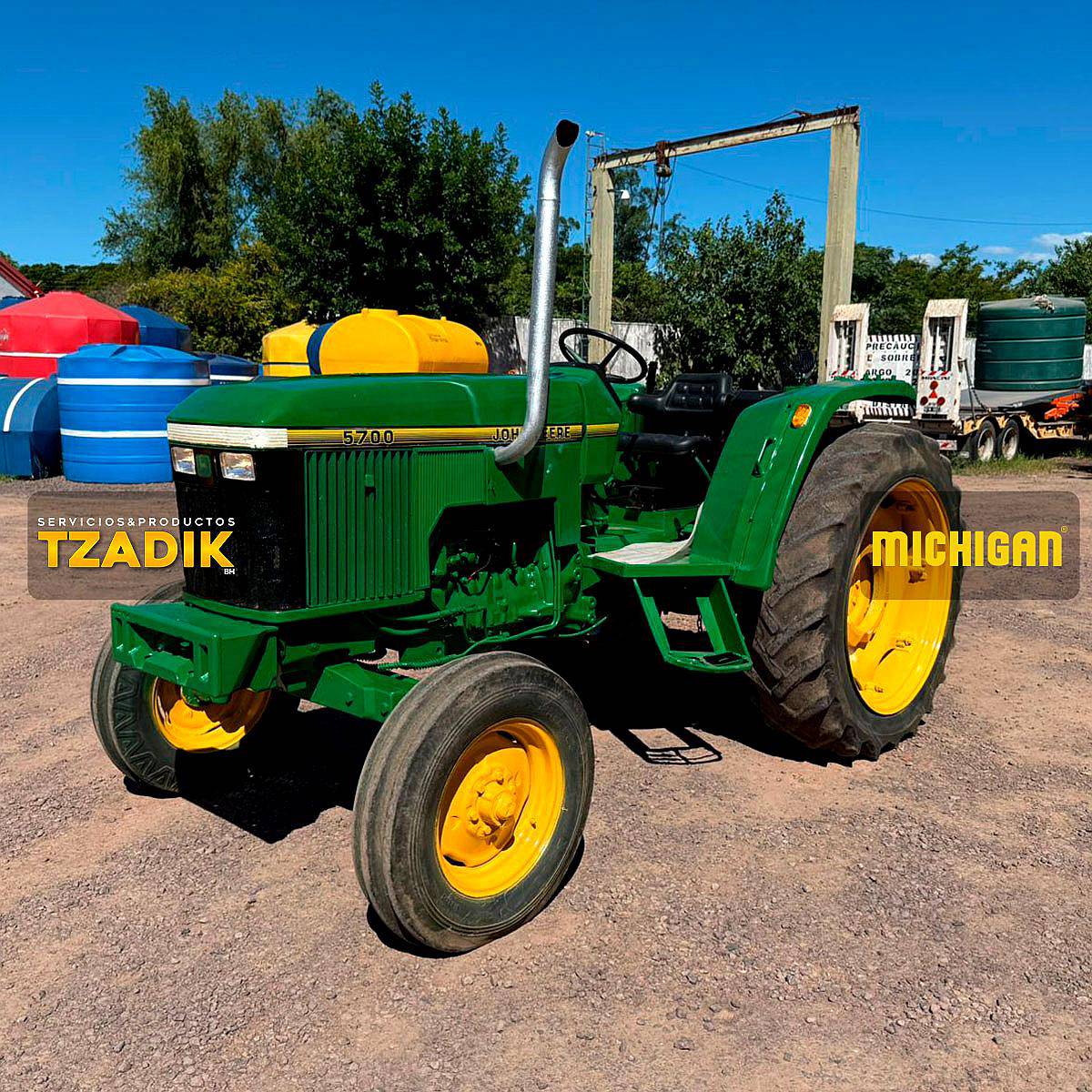

John Deere 5700
John Deere 5700 — Utility tractor · 72 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
72 hp
Weight
7397 to 7760 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Horizontina, BrazilReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
ROPS.Reference
Engine
John Deere 3.9L 4-cyl dieselReference
Fuel tank101.1 LReference
Engine63.4 kWReference
John Deere 4039TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.9 LReference
Bore/Stroke106 x 110 mmReference
Power63.4 kWReference
Compression17.8:1Reference
Rated RPM2400Reference
Operating RPM1600-2400Reference
Torque302.4 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity12.0 LReference
Coolant capacity15.0 LReference
Transmission
9-speed partially synchronizedReference
TransmissionJohn Deere Top-Shaft Synchronized (TSS)Reference
Typepartially synchronizedReference
Gears9 forward and 3 reverseReference
Oil capacity40.0 LReference
Three gears (1-3) in three ranges (A-C) plus reverse (R). Gear shifts are synchronized with the clutch. Tractor must be stopped, and clutch used, to shift range.Reference
PTO & Hydraulics
PTO (claimed)53.7 kWReference
Typeopen centerReference
Pump flow40.1 lpmReference
Rear TypeIIReference
Controltop-link draft sensingReference
Rear lift (at 24"/610mm)1799 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Weight7397 to 7760 poundsReference
2WD Shipping3355 kgReference
4WD Shipping3519 kgReference
2WD Ballasted4560 kgReference
4WD Ballasted5100 kgReference
5700 Serial Numbers
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging amps52Reference
Charging voltsalternatorReference
Battery CCA700Reference
Battery volts12Reference
Battery AH100Reference
Speeds
With 18.4-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
