Tractor · 2000Unverified

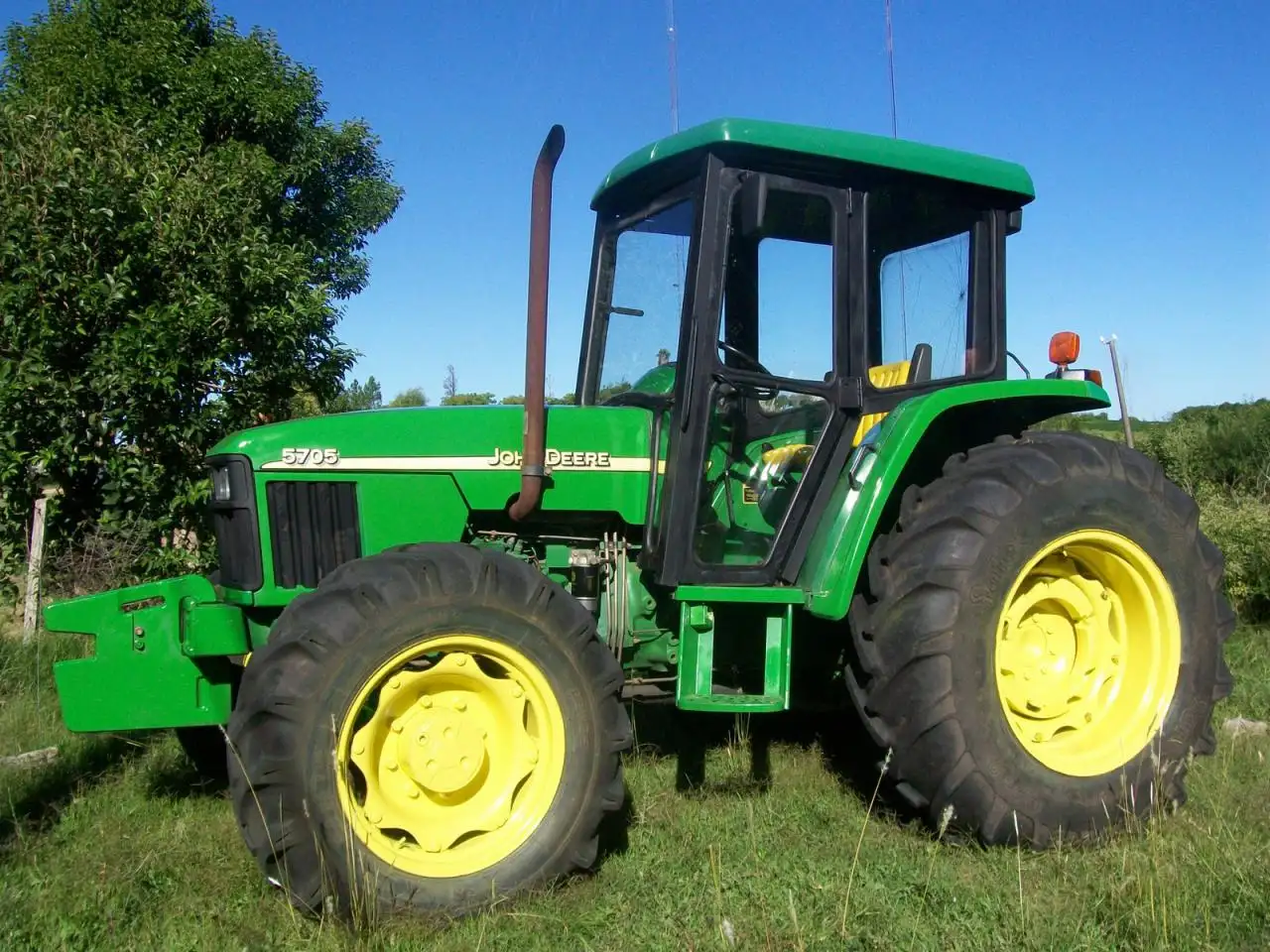

John Deere 5705

Name: John Deere 5705
Brand: John Deere

John Deere 5705 — Utility tractor · 72 hp. Reference specifications; pending source verification.

The John Deere 5705 is a mid-range tractor, rated at approximately 72 horsepower. It was manufactured from 2000 to 2011. Key features of this model include a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission, with an operating weight of 5952 to 6393 pounds. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

72 hp

Weight

5952 to 6393 pounds

Catalogue coverage

Variants represented

Richest spec table

71 rows

Recorded power

72 hp

Transmissions

9-speed

Production years

2000-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Montenegro, BrazilReference

Two- or four-wheel driveReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post ROPS.Reference

Engine

John Deere 4.5L 4-cyl dieselReference

Engine63.4 kWReference

John Deere 4045T Series 350Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke105 x 127 mmReference

Power63.4 kWReference

Rated RPM2400Reference

Torque330.1 NmReference

Torque RPM1600Reference

Starter volts12Reference

Coolant capacity15.0 LReference

Oil capacity12.0 LReference

Transmission

9-speedReference

TransmissionJohn Deere Top Shaft Synchronized (TSS)Reference

Gears9 forward and 3 reverseReference

Clutchcerametalic dry discReference

Oil capacity40.0 LReference

Oil typeJD Hy-GardReference

Three gears (1-3) in three ranges (A-C).Reference

PTO & Hydraulics

PTO (claimed)53.7 kWReference

Hydraulic system40.1 LReference

Typeopen center gear pumpReference

Capacity40.1 LReference

Pressure190.0 barReference

Valves2Reference

Pump flow43.0 lpmReference

SCV flow40.0 lpmReference

Oil typeJD Hy-GardReference

Steering flow26.1 lpmReference

Rear TypeIIReference

Controlposition and depth controlReference

Rear lift (at ends)3086 kgReference

Rear lift (at 24"/610mm)1799 kgReference

Rear PTOindependentReference

Clutchmechanical dry discReference

Rear PTO Type540Reference

Capacities

Fuel104.8 LReference

Max capacity4898 kgReference

Dimensions

Wheelbase217 cmReference

Weight5952 to 6393 poundsReference

Front tire7.50-18Reference

Rear tire18.4-30 (2WD)Reference

Standard tires (ag)Front: 7.50-18. Rear: 18.4-30 (2WD)Reference

Standard tires (ag)Front: 12.4-24. Rear: 18.4-30 (4WD)Reference

Optional tires (ag)Front: 7.50-18. Rear: 13.6-38 (2WD)Reference

Optional tires (ag)Front: 14.9-24. Rear: 23.1-26 (4WD)Reference

Optional tires (ag)Front: 12.4-24. Rear: 13.6-38 (4WD)Reference

Length385 cmReference

Height261 cmReference

Flange rear axleReference

Front tread144 to 199 cmReference

Front tread116 to 196 cmReference

Rear tread139 to 180 cmReference

2WD2699 kgReference

4WD2899 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps52Reference

Battery volts12Reference

Battery AH100Reference

Speeds

With 18.4-30 R1 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
