Tractor · 2006Unverified

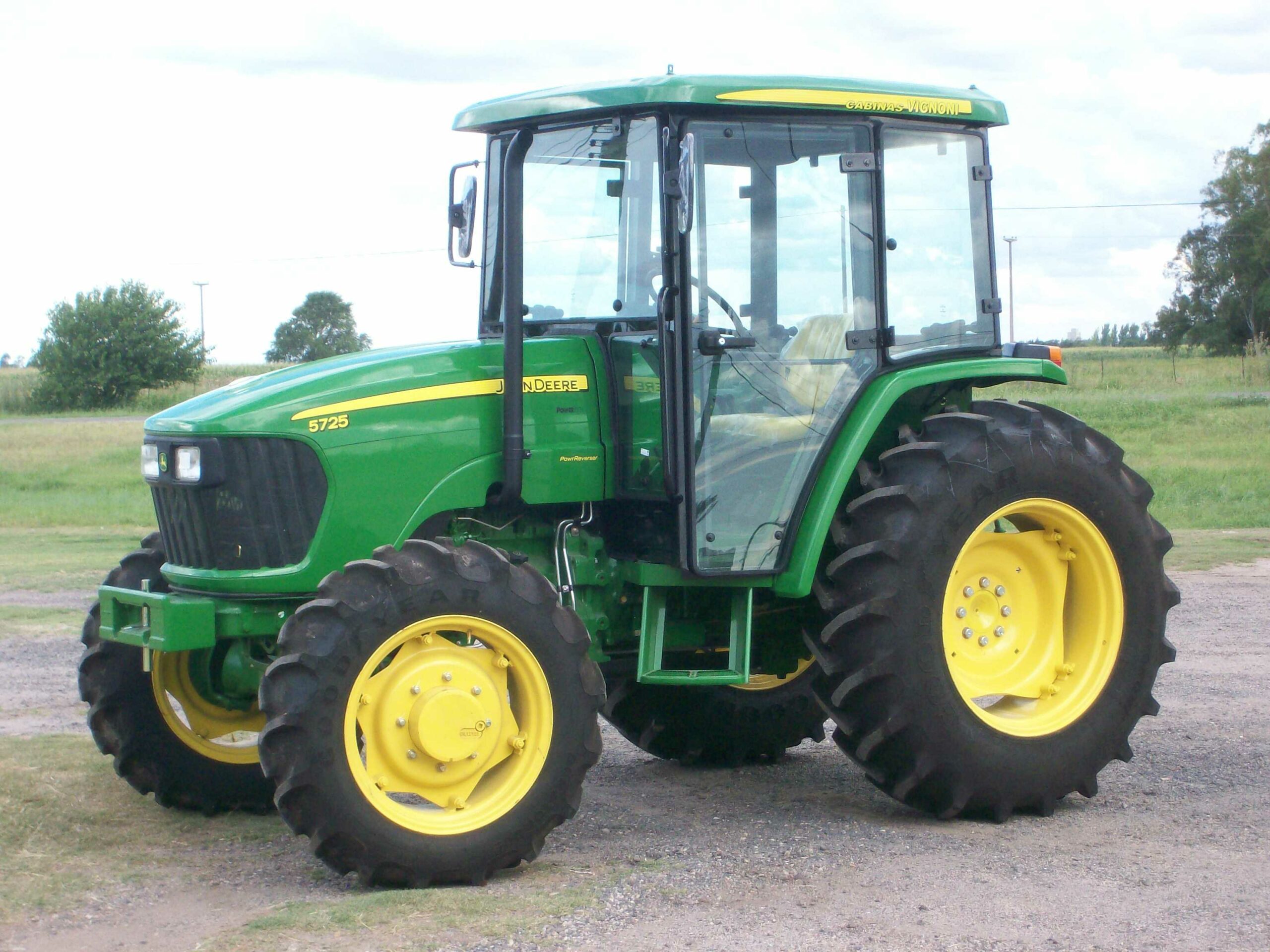

John Deere 5725
John Deere 5725 — Utility tractor · 77 hp. Reference specifications; pending source verification.
The John Deere 5725 is a tractor rated at 77 hp, falling within the mid-range category for its class. It was manufactured from 2006 to 2012. The tractor features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a 9-speed gearbox. It has an operating weight of 5512 to 7130 pounds, making it suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
77 hp
Max power
89 hp
Weight
5512 to 7130 pounds
Catalogue coverage
Variants represented
2
Richest spec table
128 rows
Recorded power
77 hp
Transmissions
9-speed gear
Production years
2006-2012
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Saltillo, MexicoReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post fixed ROPS. Foldable ROPS optional. Optional isolate platform (IOOS). Cab optional with air-conditioning.Reference
Variants
5725OorchardReference
5725HChigh-cropReference
Engine
John Deere 4.6L 4-cyl dieselReference
OOS Fuel tank94.6 LReference
IOOS Fuel tank140.0 LReference
Cab Fuel tank140.0 LReference
PowrReverser Cab Fuel tank124.9 LReference
Engine66.4 kWReference
John DeereReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier 0Reference
Power66.4 kWReference
Compression17.0:1Reference
Rated RPM2400Reference
Idle RPM800-2600Reference
Operating RPM1600-2400Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity10.8 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Fuel TypeDieselReference
No of Cylinders4 cylinderReference
Emissions complianceTier 0Reference
Bore and stroke4.19x5.00 inchesReference
Compression ratio17.0:1Reference
Cooling systemliquid-cooledReference
Transmission
9-speed gearReference
9-speed partially synchronizedReference
12-speed power shuttleReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutch279mm dry discReference
Oil capacity38.0 LReference
Three gears (1-3) plus reverse (R) in four ranges (A-C). Tractor must be stopped, and clutch used, to shift gear or range.Reference
Typepartially synchronizedReference
Three gears (1-3) plus reverse (R) in four ranges (A-C). Gears are synchronized. Tractor must be stopped, and clutch used, to shift range.Reference
TransmissionPowrReverserReference
Typepower shuttleReference
Gears12 forward and reverseReference
Clutchwet discReference
Oil capacity43.5 LReference
Four gears (1-4) in three ranges (A-C) with left-hand power shuttle. Gears are synchronized and can be shifting on the move using the clutch. Tractor must be stopped, and clutch used, to shift range.Reference
Transmission TypeGearReference
Wheel Drive4WDReference
PTO & Hydraulics
PTO (claimed)57.4 kWReference
Typeopen centerReference
Pressure193.1 barReference
Pump flow60.2 lpmReference
Steering flow25.0 lpmReference
Steering press.131.0 barReference
Rear TypeII/IReference
Controltop-link draft sensingReference
Rear lift (at 24"/610mm)1530 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2400Reference
Engine RPM540E@1700Reference
Dimensions
Wheelbase217 cmReference
Weight5512 to 7130 poundsReference
Front tire12.4x24Reference
Rear tire18.4x30Reference
Standard tires (ag)Front: 12.4x24. Rear: 18.4x30Reference
OOS Length356 cmReference
IOOS Length379 cmReference
Cab Length379 cmReference
Width209 cmReference
2WD Clearance (front axle)50 cmReference
4WD Clearance (front axle)41 cmReference
2WD OOS Shipping2500 kgReference
4WD OOS Shipping2686 kgReference
2WD IOOS Shipping2957 kgReference
4WD IOOS Shipping3015 kgReference
2WD Cab Shipping3044 kgReference
4WD Cab Shipping3234 kgReference
Steering wheel196 cmReference
5725 Serial Numbers
Location:Serial number plate on the left side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps70Reference
Cab Charging amps90Reference
Battery CCA550Reference
Battery volts12Reference
Battery Group27FReference
Total cold cranking amps550 ampsReference
John Deere 5725 Height
OOS Hood178 cmReference
IOOS Hood171 cmReference
OOS ROPS254 cmReference
IOOS ROPS260 cmReference
Cab258 cmReference
Speeds
With 16.9-30 rear tires.Reference
With 18.4-30 rear tires. Reverse speeds are 10% faster than forward.Reference
General
Make & ModelJohn DeereReference
Rollover protective structureTwo-post fixed ROPS. Foldable ROPS optional.Reference
Country of manufacturerMexicoReference
Capacities
Capacity278 ciReference
Crankcase oil volume9 qtsReference
Power
Max Power89 hpReference
PTO
PTO Power77 hpReference
Rear PTO PowerAvailableReference
Rear PTO RPM540 RPMReference
Steering & brakes
Brakeshydraulic wet discReference
Steering typePowerReference
Hydraulics
Hydraulics TypeOpen CenterReference
Maximum operating pressure2,800 psiReference
Steering & Implements flow6.6 gpm (15.9 gpm)Reference
Rear Hitch category (SAE designation)Category II/IReference
Rear Hitch Sensing Typetop-link draft sensingReference
Dimensions & weight
Height Over Cab258.3 cmReference
Overall Width209.8 cmReference
Front axle clearance2 WD : 20 inches | 4 WD : 16.5 inchesReference
Wheels & tyres
Rear Wheel Type18.4x30Reference
Front Wheel Type12.4x24.Reference
Operator station
Cab AvailabilityAvailableReference
Cab Air conditioning, temperature differentialOptionalReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
