Tractor · 2003Unverified

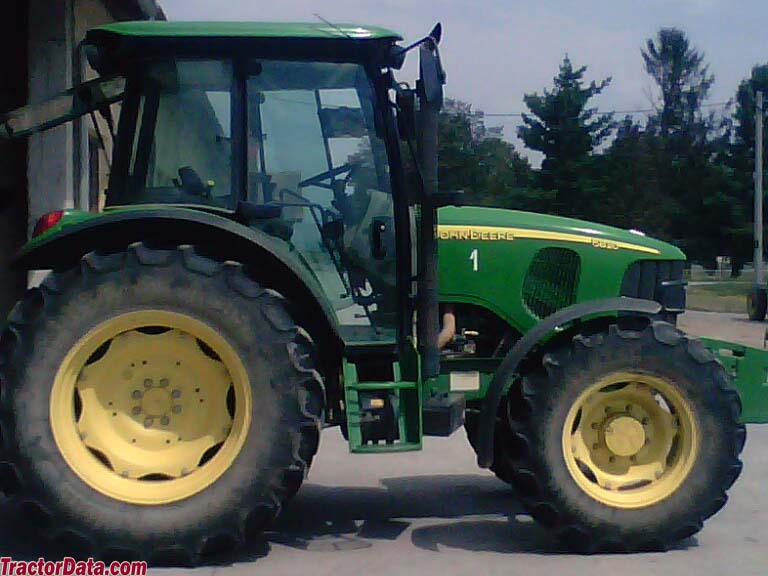

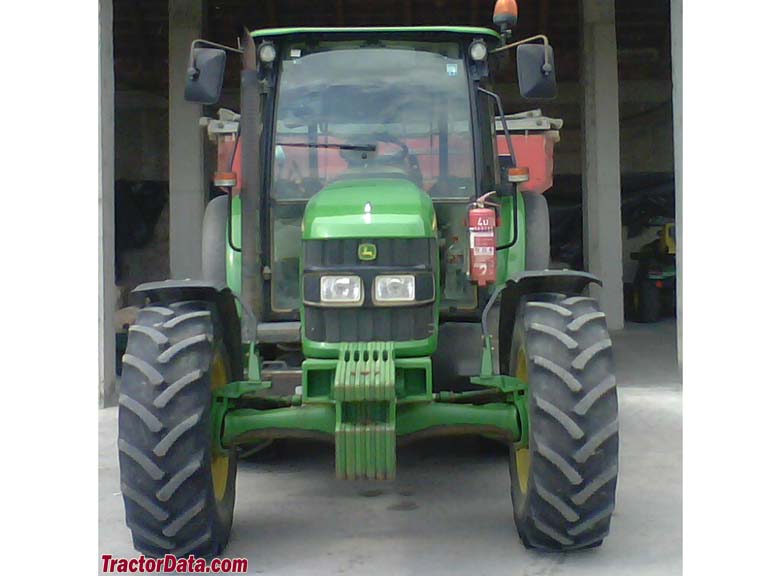

John Deere 5820

Name: John Deere 5820
Brand: John Deere

John Deere 5820 — Utility tractor · 76 hp. Reference specifications; pending source verification.

The John Deere 5820 is a tractor with an output of 76 hp, situated in the middle power range of its class. Manufactured from 2003 to 2008, this model features a 4-cylinder turbocharged diesel liquid-cooled engine, paired with a hydrostatic transmission and four-wheel drive. The listed weight of the tractor is 3700 kg, and it is suitable for land areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

76 hp

Weight

3700 kg

Catalogue coverage

Variants represented

Richest spec table

98 rows

Recorded power

76 hp

Recorded weight

3700 kg

Transmissions

16-speed

Production years

2003-2008

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Cab standard. Optional A/C.Reference

Engine

John Deere 4.5L 4-cyl dieselReference

Engine65.6 kWReference

John Deere 4045TL274Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

EmissionsStage IIReference

Power65.6 kWReference

Rated RPM2300Reference

Torque339.0 NmReference

Torque RPM1500Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

Starter power3.0 kWReference

Coolant capacity13.5 LReference

Coolant change3000 hReference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.457 mmReference

Oil capacity13.0 LReference

Oil change500 hReference

Transmission

16-speedReference

32-speedReference

TransmissionPowrQuadReference

Gears16 forward and reverseReference

Oil capacity50.0 LReference

Oil type[-40o↔30oC]Reference

-10oF [-23oC]↑: HY-GARDReference

-40o↔86oF [-40o↔30oC]: Low Viscosity HY-GARDReference

-10oF [-23oC]↑: JDM J20CReference

-40o↔86oF [-40o↔30oC]: JDM J20DReference

TransmissionPowrQuad PlusReference

Oil capacity51.0 LReference

TransmissionPowrQuad with underdriveReference

TransmissionPowerQuad Plus with underdriveReference

Gears32 forward and reverseReference

Oil capacity52.1 LReference

PTO & Hydraulics

PTO (claimed)56.7 kWReference

Hydraulic system52.0 LReference

Typeload sensing pressure compensatedReference

Capacity52.0 LReference

Pressure200.0 barReference

Valvesup to 3Reference

Total flow56.0 lpmReference

Total flow65.1 lpmReference

Oil type[-40o↔30oC]Reference

-10oF [-23oC]↑: HY-GARDReference

-40o↔86oF [-40o↔30oC]: Low Viscosity HY-GARDReference

-10oF [-23oC]↑: JDM J20CReference

-40o↔86oF [-40o↔30oC]: JDM J20DReference

Rear TypeIIReference

Rear lift (at ends)3773 kgReference

Front HitchoptionalReference

Front lift2957 kgReference

Rear PTO Type540/540EReference

Rear PTO Type540/540E/1000Reference

Front PTOoptionalReference

Front PTO Type1000Reference

Capacities

Fuel113.9 LReference

Fuel131.0 LReference

Front axle4.5 LReference

Front hubs0.7 LReference

Dimensions

Wheelbase225 cmReference

Weight3700 kgReference

Front tire13.6R24Reference

Rear tire16.9R34Reference

Ag front13.6R24Reference

Ag rear16.9R34Reference

Length394 cmReference

Width217 cmReference

Height (cab)259 cmReference

Height (cab)254 cmReference

Shipping weight3700 kgReference

Max weight6100 kgReference

Ground clearance39 cmReference

Front tread142 to 192 cmReference

Rear tread141 to 191 cmReference

John Deere 5820 attachments

front-end loaderReference

5820 Serial Numbers

Location:Main frame on right sideReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps90Reference

Charging amps115 (optional)Reference

Battery volts12Reference

Battery AH110Reference

Battery AH154 (optional)Reference

Attachment overview

John Deere 533 loaderReference

John Deere 583 loaderReference

John Deere 633 loaderReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
