Tractor · 1952Unverified

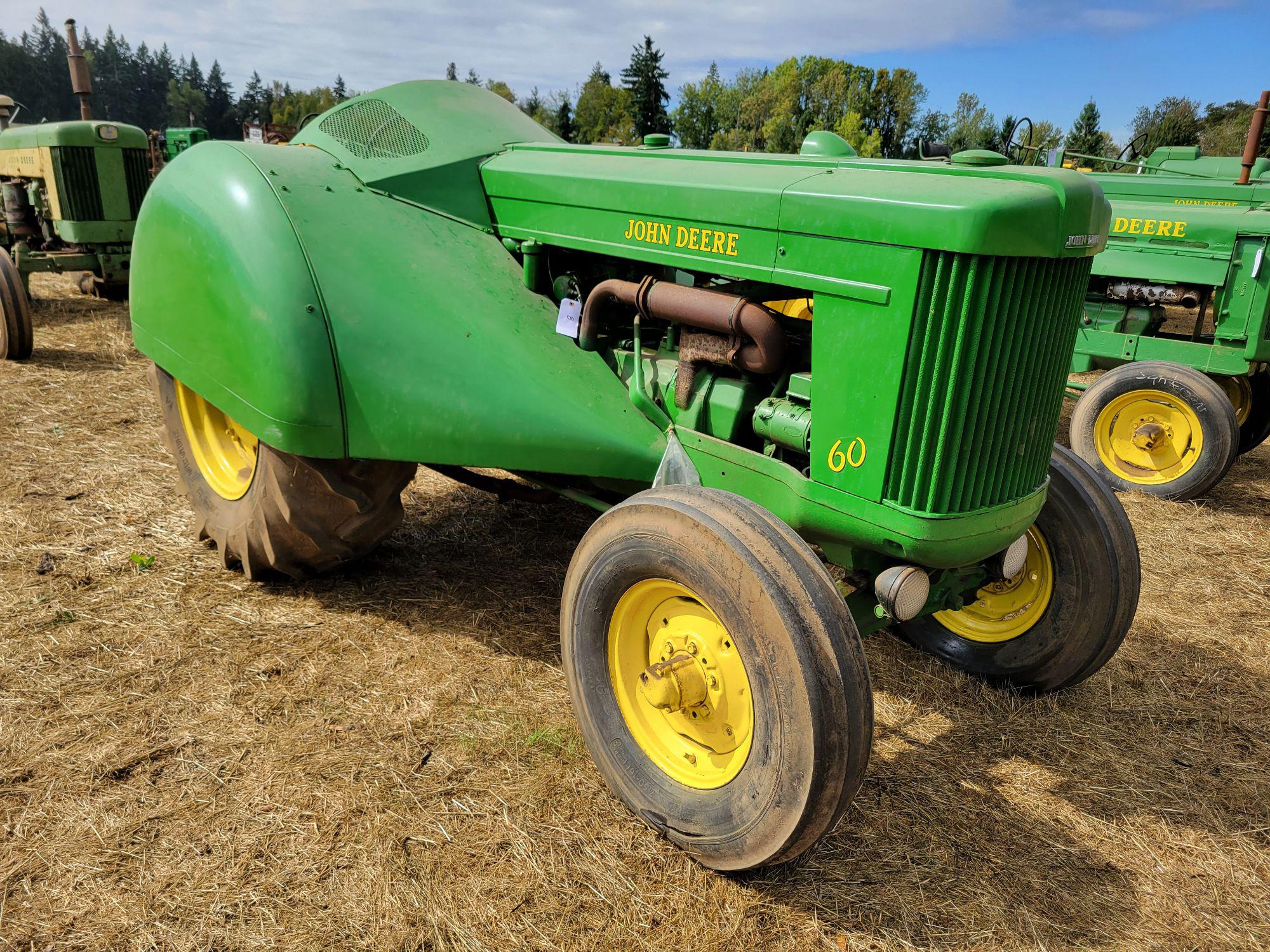

John Deere 60 Orchard
John Deere 60 Orchard — Orchard/Vineyard tractor · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
2418 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Orchard/Vineyard tractorReference
Built in Waterloo, Iowa, USAReference
Total built872Reference
Two-wheel driveReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Engine
John Deere 5.3L 2-cyl gasolineReference
Drawbar (claimed)27.5 kWReference
Drawbar (claimed)22.4 kWReference
Belt (claimed)31.0 kWReference
Belt (claimed)24.8 kWReference
Plows3Reference
John DeereReference
gasolineReference
2-cylinderReference
liquid-cooled inlineReference
Displacement5.3 LReference
Bore/Stroke140 x 171 mmReference
Fuel systemduplex carburetorReference
Air cleaneroil bathReference
Compression6.1:1Reference
Rated RPM975Reference
Firing order1-2Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity31.2 LReference
Oil capacity7.6 LReference
Transmission
6-speed unsynchronized gearReference
TransmissionJohn DeereReference
Typeunsynchronized gearReference
Gears6 forward and 1 reverseReference
Clutchfour 254mm dry discsReference
Capacities
Fuel75.7 LReference
Aux. fuel3.8 LReference
Diameter32 cmReference
Width18 cmReference
RPM975Reference
Speed996.70 meters/minReference
PTO & Hydraulics
Hydraulic system5.7 LReference
Typeopen centerReference
Capacity5.7 LReference
Valves1Reference
Pump flow33.7 lpmReference
Rear PTOtransmissionReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase192 cmReference
Weight2418 kgReference
Front tire6.00-16Reference
Rear tire14-26Reference
Ag front6.00-16Reference
Ag rear14-26Reference
Ag front7.50-16Reference
Ag rear13-26Reference
Length318 cmReference
Width192 cmReference
Height (hood)144 cmReference
Shipping weight2418 kgReference
Rear axle69 mmReference
Rear tread138 to 145 cmReference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Batteries2Reference
Battery volts6Reference
Speeds
With 14-26 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
