Tractor · 1992Unverified

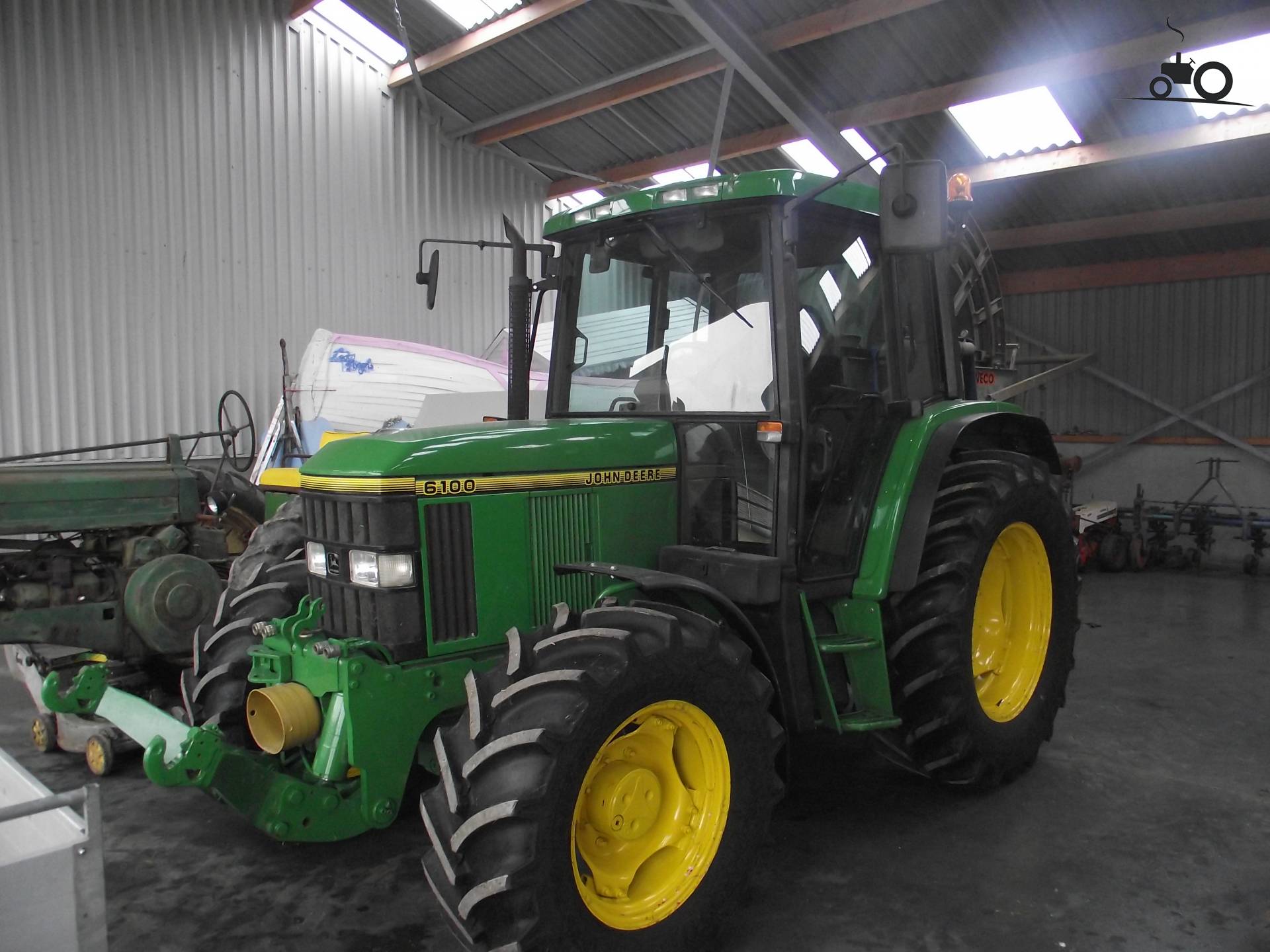

John Deere 6100
John Deere 6100 · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
8160 to 8600 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard.Reference
Variants
6100SEeconomy modelReference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank160.1 LReference
Engine55.9 kWReference
John Deere 4045Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Power55.9 kWReference
Rated RPM2300Reference
Torque300.1 NmReference
Torque RPM1470Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed fully synchronizedReference
15-speed fully synchronizedReference
16-speed partial power shiftReference
20-speed partial power shiftReference
TransmissionJohn Deere SyncroPlusReference
Typefully synchronizedReference
Gears12 forward and 4 reverseReference
Clutch225mm wet discReference
Three gears (1-3), plus reverse (R), in four ranges (A-D).Reference
Gears15 forward and 5 reverseReference
Three gears (1-3), plus reverse (R), in five ranges (A-E). Also available in a 24-speed option with 40 kph maximum speed (depending on sales market).Reference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Four power shift gears (1-4) in four synchronized ranges (A-D) with power shuttle.Reference
Gears20 forward and reverseReference
Four power shift gears (1-4) in five synchronized ranges (A-E) with power shuttle. Also available in a 24-speed option with 40 kph maximum speed (depending on sales market).Reference
PTO & Hydraulics
Pressure200.0 barReference
Total flow60.0 lpmReference
Rear TypeIIReference
Rear lift3700 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540/540E/1000Reference
Engine RPM540@2017Reference
Engine RPM540E@1684Reference
Engine RPM1000@2208Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase240 cmReference
Weight8160 to 8600 poundsReference
Front tire10.00-16Reference
Rear tire16.9R34 (2WD)Reference
Standard tires (ag)Front: 10.00-16. Rear: 16.9R34 (2WD)Reference
Standard tires (ag)Front: 13.6R24. Rear: 16.9R34 (4WD)Reference
2WD Length409 cmReference
4WD Length414 cmReference
Height (cab)263 cmReference
2WD Weight3701 kgReference
4WD Weight3900 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps110Reference
Battery volts12Reference
Battery AH154Reference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
