Tractor · 2008Unverified

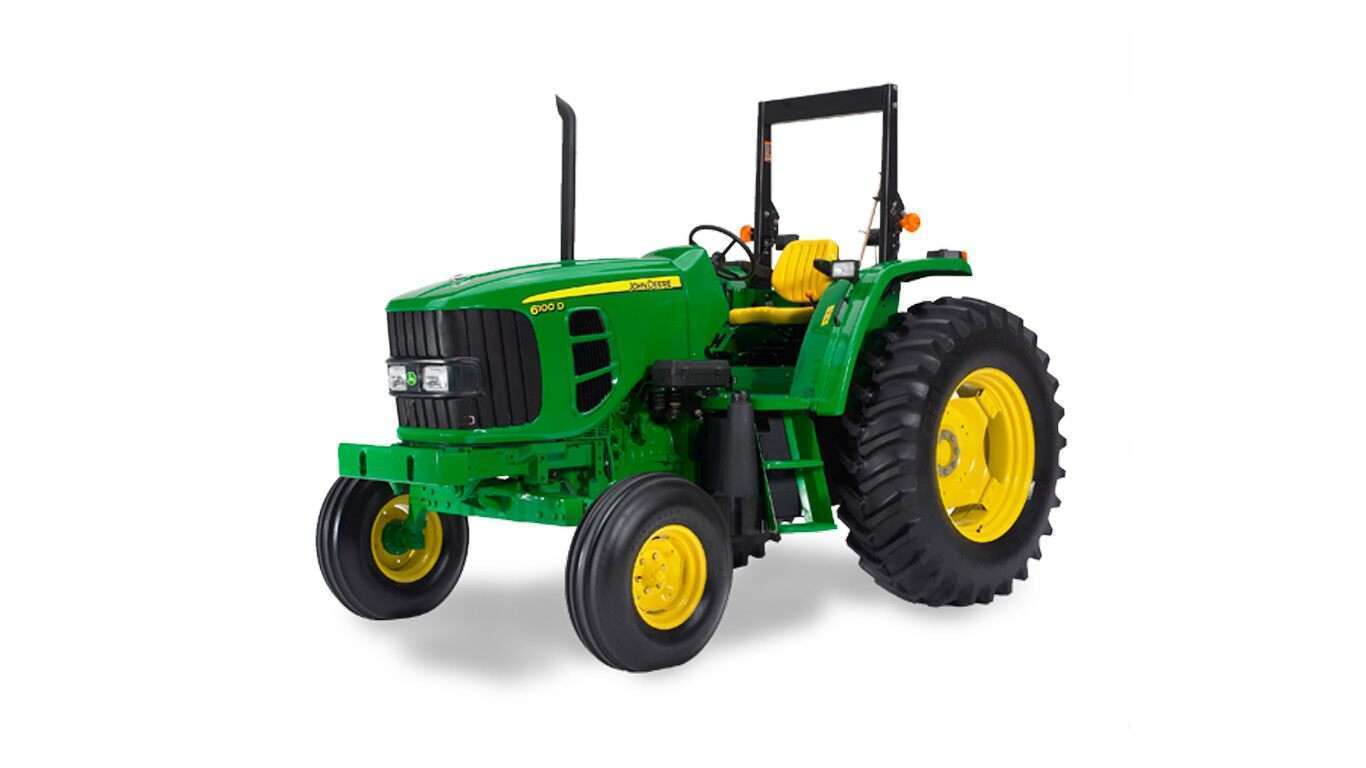

John Deere 6100D
John Deere 6100D — 6D Series · 99 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
99 hp
Max power
67.2 kW
Weight
7275 to 9170 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Saltillo, MexicoReference
Original price$45,299 (2011)Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Differential mechanical wet disc brakesReference
Folding 2-post ROPS or cab with heat and A/CReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (gross)73.7 kWReference
Drawbar (tested)55.7 kWReference
John Deere 4045T PowerTechReference
turbocharged dieselReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke107 x 127 mmReference
EmissionsTier 1Reference
Rated Power (gross)73.7 kWReference
Fuel systemrotary mechanical injectionReference
Air cleanertwo paper elementsReference
Compression17:1Reference
Rated RPM2100Reference
Idle RPM850-2275Reference
Torque371.5 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Coolant capacity16.5 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity15.0 LReference
Oil change250 hReference
Oil change500 h (JD TorqGARD oil)Reference
Max power67.2 kWReference
Power at rated engine speed65.2 kWReference
Max power55.7 kWReference
Transmission
9-speed partially synchronized with power shuttleReference
9-speed partially synchronziedReference
TransmissionJohn Deere PowrReverserReference
Typepartially synchronized with power shuttleReference
Gears9 forward and reverseReference
Clutchhydraulic wet discReference
Oil capacity57.9 LReference
Three gears (1-3) in each of three ranges (A-C) plus left-hand reverser. Forward/reverse powershift. Synchronized shift between gears with clutch. Shifts between ranges are unsynchronized: the tractor must be stopped and clutch used to shift range.Reference
TransmissionJohn Deere Top Shaft Syncronized (TSS)Reference
Typepartially synchronziedReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Shifts between gears, including to reverse, are synchronized using the clutch. Shifts between ranges are not synchronized, the operator must stop the tractor and use the clutch.Reference
PTO & Hydraulics
PTO (claimed)61.1 kWReference
PTO (tested)67.2 kWReference
Hydraulic system57.9 LReference
Typeopen centerReference
Capacity57.9 LReference
Pressure195.1 barReference
Valves2 to 3Reference
Pump flow66.6 lpmReference
Steering flow26.1 lpmReference
Rear TypeIIReference
Controlmechanical lower linkReference
Rear lift (at 24"/610mm)3084 kgReference
Rear PTOindependentReference
Clutchdry discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2100Reference
Engine RPM1000@2100Reference
Power at rated PTO speed66.6 kWReference
Capacities
Fuel157.8 LReference
Front axle6.5 LReference
Front hubs2.0 LReference
Dimensions
Wheelbase234 cmReference
Weight7275 to 9170 poundsReference
Front tire10.00-16Reference
Rear tire18.4-34 (2WD)Reference
Standard tires (ag)Front: 10.00-16. Rear: 18.4-34 (2WD)Reference
Standard tires (ag)Front: 13.6-24. Rear: 18.4-34 (4WD)Reference
Optional tires (ag)Front: 10.00-16. Rear: 18.4-38 (2WD)Reference
Optional tires (ag)Front: 10.00-16. Rear: 16.9-38 (2WD)Reference
2WD Length427 cmReference
4WD Length421 cmReference
Width182 cmReference
Height (cab)273 cmReference
Height (exhaust)269 cmReference
2WD Clearance (front axle)59 cmReference
4WD Clearance (front axle)45 cmReference
Clearance (rear axle)67 cmReference
Clearance (drawbar)45 cmReference
Front tread153 to 204 cmReference
Front tread151 to 201 cmReference
Rear tread151/161/171/181/191/201 cmReference
Shipping3299 kgReference
Shipping3601 kgReference
Shipping3860 kgReference
Shipping4159 kgReference
Operating4123 kgReference
Ballasted4926 kgReference
John Deere 6100D attachments
front-end loaderReference
6100D Serial Number Location
Serial number plate on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70 (ROPS)Reference
Charging amps90 (cab)Reference
Battery CCA925Reference
Battery volts12Reference
Battery AH180Reference
Battery Group31Reference
Attachment overview
John Deere 563 loaderReference
John Deere 673 loaderReference
Test results
Diesel 9-speed 4WDMay 20 - June 2, 2010Link: OCED Tractor Test 1974 fileReference
PTO performanceReference
Fuel use18.9 l/hourReference
Fuel use19.3 l/hourReference
Drawbar performanceReference
Max pull4065 kgReference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
