Tractor · 2013Unverified

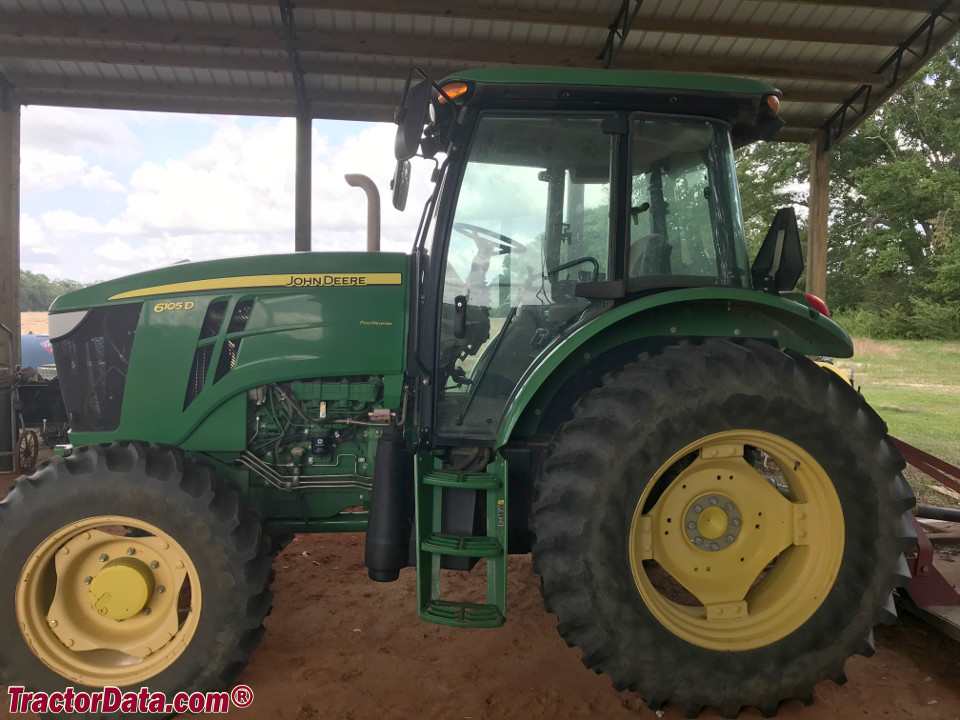

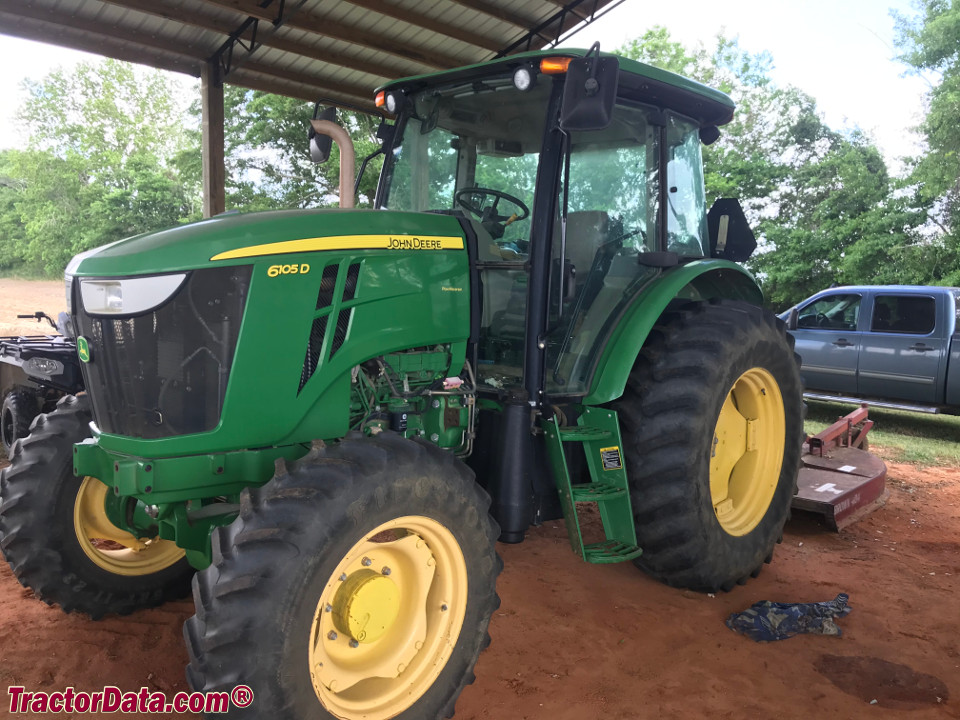

John Deere 6105D
John Deere 6105D — 6D Series · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Max power
68.0 kW
Weight
7916 to 10000 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Saltillo, MexicoReference
Original price$47,396 (2014 ROPS 2WD )Reference
Original price$62,966 (2014 Cab 4WD )Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Differential locklimited-slip front differential (4WD)Reference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank157.8 LReference
Engine (gross)78.3 kWReference
John Deere PowerTech PWXReference
wastegate turbocharger with aftercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsInterim Tier IVReference
Emission controlcooled exhaust gas recirculationReference
Rated Power (gross)78.3 kWReference
Compression19:1Reference
Rated RPM2200Reference
Torque423.1 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity15.0 LReference
Coolant capacity17.7 LReference
Max power68.0 kWReference
Transmission
9-speed partially synchronizedReference
12-speed partially synchronizedReference
24-speed partially synchronizedReference
TransmissionTop Shaft Synchronized PowrReverserReference
Typepartially synchronizedReference
Gears9 forward and reverseReference
Clutchwet discReference
Three synchronized gears (1-3) in three ranges (A-C) with power shuttle. Tractor must be stopped to shift ranges.Reference
Transmission12-Speed PowrReverserReference
Gears12 forward and reverseReference
Four synchronized gears (1-4) in three ranges (A-C) with power shuttle. Tractor must be stopped to shift ranges. The 12-speed transmission became standard in 2014.Reference
TransmissionHi-Lo PowrReverserReference
Gears24 forward and 12 reverseReference
Four synchronized gears (1-4) in three ranges (A-C) with power shuttle and two-speed high/low shift. Tractor must be stopped to shift ranges. The high-low became an optiona transmission in 2014.Reference
PTO & Hydraulics
PTO (claimed)64.9 kWReference
PTO (tested)68.0 kWReference
Typeopen centerReference
Pressure195.0 barReference
Valves2 or 3Reference
Pump flow75.7 lpmReference
SCV flow75.7 lpmReference
Rear TypeIIReference
Controlposition controlReference
Controldraft-control optionalReference
Rear lift (at 24"/610mm)2494 kgReference
Rear lift (at 24"/610mm)3311 kgReference
DrawbarCat. IIReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2085Reference
Engine RPM1000@2067Reference
Dimensions
2WD Wheelbase245 cmReference
4WD Wheelbase245 cmReference
Weight7916 to 10000 poundsReference
Front tire10.00-16Reference
2WD Rear tire18.4-34Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 18.4-34Reference
4WD Standard tires (ag)Front: 13.6-24. Rear: 18.4-34Reference
2WD Length427 cmReference
4WD Length421 cmReference
Width245 cmReference
Height (cab)274 cmReference
Height (exhaust)279 cmReference
2WD Clearance (front axle)59 cmReference
4WD Clearance (front axle)45 cmReference
Flange rear axleReference
Front tread153 to 204 cmReference
Front tread151 to 201 cmReference
2WD ROPS Shipping3590 kgReference
4WD ROPS Shipping4150 kgReference
2WD Cab Shipping3719 kgReference
4WD Cab Shipping4536 kgReference
4WD Cab Operating4427 kgReference
Ballasted6520 kgReference
John Deere 6105D attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
John Deere H260 loaderReference
John Deere H310 loaderReference
Capacities
Max capacity7999 kgReference
Test results
Diesel 9-speed 4WDMarch 29 - April 8, 2013Link: Nebraska Tractor Test 2055 fileReference
PTO performanceReference
Fuel use20.1 l/hourReference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
