Tractor · 2013Unverified

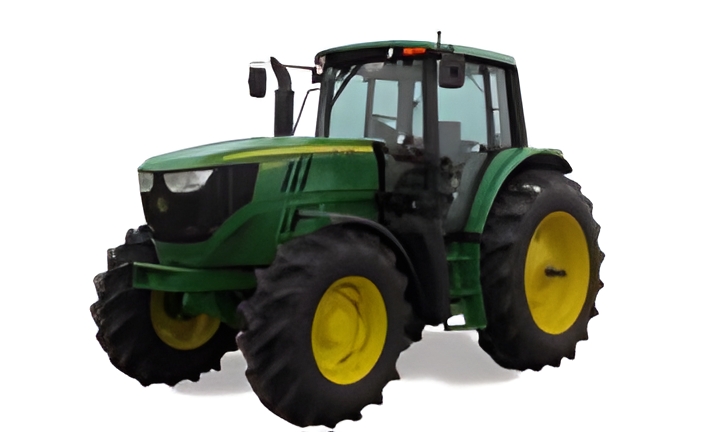

John Deere 6105M

Name: John Deere 6105M
Brand: John Deere

John Deere 6105M — 6M Series · 105 hp. Reference specifications; pending source verification.

The John Deere 6105M is a tractor with a power rating of 105 hp, placing it in the middle of its class. Manufactured between 2013 and 2015, it features a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, driving a four-wheel drive system via a hydrostatic transmission. The listed weight of the 6105M is 8700 kg, making it suitable for use on land of approximately 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

105 hp

Max power

73.9 kW

Weight

8,699.9 kg

Catalogue coverage

Variants represented

Richest spec table

140 rows

Recorded power

105 hp

Recorded weight

8700 kg

Transmissions

12-speed fully synchronized

Production years

2013-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Original price$64,427 (2014 SyncroPlus ROPS 2WD )Reference

Original price$91,507 (2014 AutoQuad Cab 4WD )Reference

Two- or four-wheel driveReference

Differential lockElectro-hydraulic rearReference

Differential locklimit-slip front (4WD)Reference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS. Cab optional with air-conditioning. GreenStar (optional); AutoTrac (optional)Reference

Engine

John Deere 4.5L 4-cyl dieselReference

Engine (gross)78.3 kWReference

Engine (max)81.3 kWReference

Drawbar (tested)61.2 kWReference

John Deere PowerTech PVXReference

variable geometry turbocharger with intercooler dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.5 LReference

Bore/Stroke106 x 127 mmReference

EmissionsInterim Tier IVReference

Emission controlcooled exhaust gas recirculationReference

Rated Power (gross)78.3 kWReference

Maximum Power (gross)81.3 kWReference

Fuel systemhigh pressure common railReference

Compression16.1:1Reference

Rated RPM2100Reference

Torque473.2 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Oil capacity16.0 LReference

Coolant capacity22.1 LReference

Max power73.9 kWReference

Power at rated engine speed65.5 kWReference

Max power61.2 kWReference

Fuel TypeDieselReference

No of Cylinders4 cylinderReference

Emissions complianceInterim Tier IV | Cooled Exhaust Gas RecirculationReference

Engine torque at rated speed158.3 kgReference

Bore and stroke4.19x5.00 inchesReference

Compression ratio16.1:1Reference

Cooling systemliquid-cooledReference

Transmission

12-speed fully synchronizedReference

16-speed partial power shiftReference

24-speed partial power shiftReference

TransmissionSyncroPlusReference

Typefully synchronizedReference

Gears12 forward and 4 reverseReference

Clutchwet discReference

TransmissionPowrQuadReference

Typepartial power shiftReference

Gears16 forward and reverseReference

Oil capacity52.1 LReference

TransmissionPowrQuad PlusReference

Gears24 forward and reverseReference

TransmissionAutoQuad PlusReference

Transmission TypeSync ShuttleReference

Wheel Drive4WDReference

Rear Axle Drive Type3 Planetary gear reductionReference

PTO & Hydraulics

PTO (claimed)64.1 kWReference

PTO (tested)73.9 kWReference

Hydraulic system51.9 LReference

Typeopen center pressure compensatedReference

Typeclosed center load sensing pressure and flow compensated (optional)Reference

Capacity51.9 LReference

Pressure200.0 barReference

Rear valves1 to 3Reference

Mid valves2 or 3 (optional)Reference

Pump flow79.9 lpmReference

Pump flow113.6 lpmReference

SCV flow79.9 lpmReference

Rear TypeII/IIINReference

Controlelectrohydraulic load sensingReference

Rear lift (at 24"/610mm)2035 kgReference

Rear lift (at 24"/610mm)2659 kgReference

DrawbarCat. IIReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1932Reference

Engine RPM1000@1932Reference

Power at rated PTO speed72.2 kWReference

Capacities

Fuel219.5 LReference

Fuel tank219.6 LReference

Crankcase oil volume16.9 qtsReference

Dimensions

Wheelbase258 cmReference

Front tire10.00-16Reference

Rear tire460/85R34 (2WD)Reference

Standard tires (ag)Front: 10.00-16. Rear: 460/85R34 (2WD)Reference

Standard tires (ag)Front: 380/85R24. Rear: 460/85R34 (4WD)Reference

Max weight8700 kgReference

Clearance (front axle)51 cmReference

Flange rear axleReference

Bar rear axle78 by 2555 mmReference

Front tread153 to 204 cmReference

John Deere 6105M attachments

front-end loaderReference

6105M Serial Number Location

Serial number plate on the right side of the tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps90Reference

Charging amps150Reference

Charging volts14Reference

Battery volts12Reference

Attachment overview

John Deere H310 loaderReference

John Deere H310 MSL loaderReference

John Deere H340 loaderReference

John Deere H340 MSL loaderReference

Test results

Diesel 24-speed PowrQuad Plus 4WDOctober 23 - November 18, 2013Link: OCED Tractor Test 2076 fileReference

PTO performanceReference

Fuel use22.0 l/hourReference

Fuel use735.4 l/hourReference

Drawbar performanceReference

Fuel use21.6 l/hourReference

Max pull4863 kgReference

General

Make & ModelJohn DeereReference

Drawbar categoryCat. IIReference

Rear Axle TypeFlange | BarReference

Rollover protective structureTwo-post foldable ROPSReference

DisplayPerformance Monitor, Several Settings can be adjustedReference

RadioRadio Available ex factoryReference

Country of manufacturerGermanyReference

Power

Rated Power105 hpReference

PTO

PTO Power86 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed1,000@1,932 RPMReference

Steering & brakes

BrakesHydraulic Wet DiscReference

Steering typeHydrostatic PowerReference

Hydraulics

Maximum operating pressure2,900 psiReference

Remote Valves1 to 3 valvesReference

Rear Hitch category (SAE designation)Category II/IIINReference

Rear Hitch Sensing TypeElectrohydraulic Load SensingReference

Dimensions & weight

Front axle clearance52 cmReference

Weight8,699.9 kgReference

Wheels & tyres

Rear Wheel Typestd- 460/85R34 (2WD) | opt- 460/85R34 (4WD)Reference

Front Wheel Typestd-10.00-16. (2WD) | opt- 380/85R24. (4WD)Reference

Front Wheel tread range60.4 to 80.4 (2WD) inchesReference

Operator station

Cab AvailabilityAvailableReference

Cab glass area4.79 mReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
