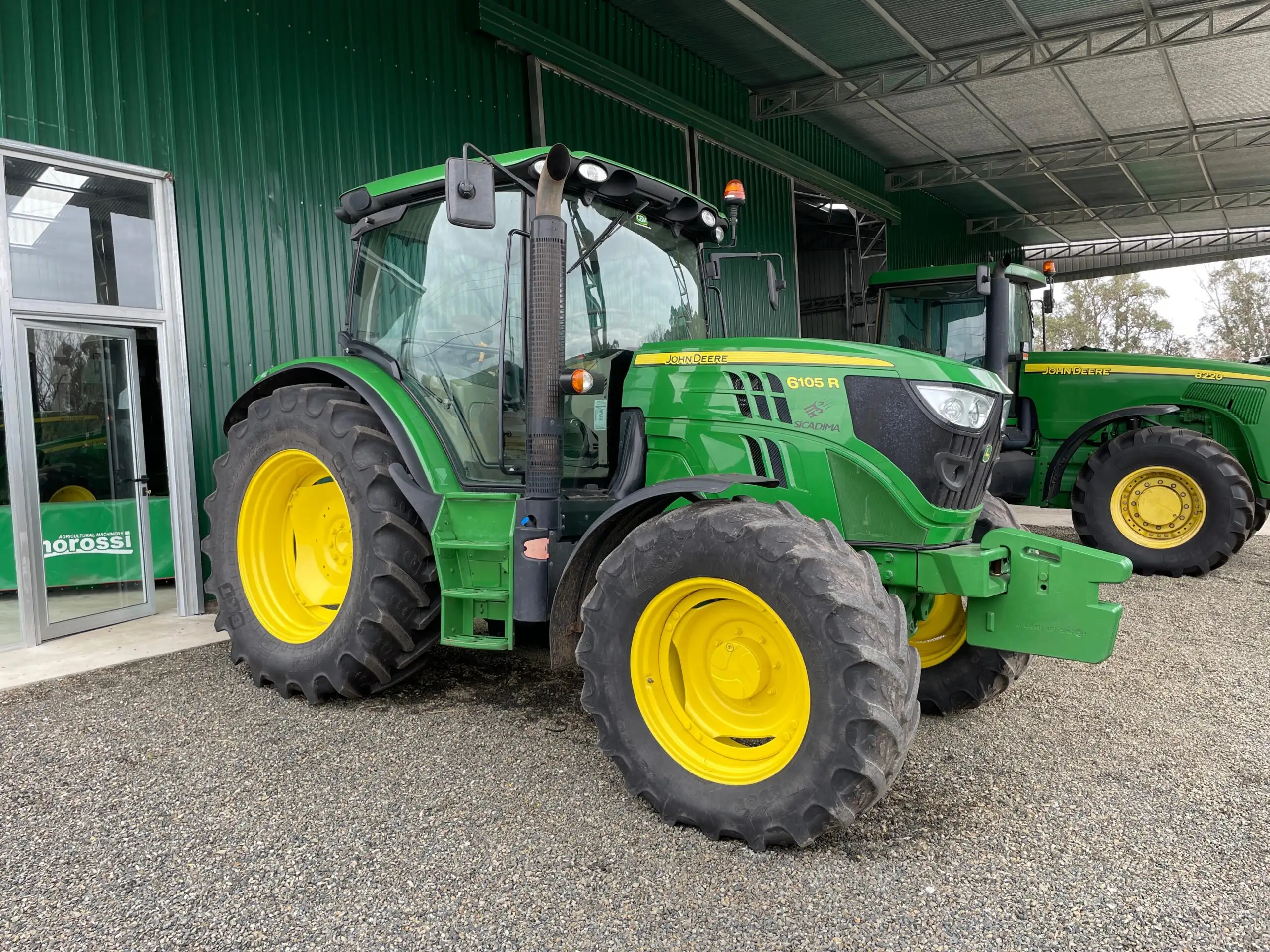

John Deere 6105R
John Deere 6105R — 6R Series · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Max power
78.5 kW
Weight
5910 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Original price$86,076 (2014 PowrQuad 2WD )Reference
Original price$114,787 (2014 IVT 4WD )Reference
Two- or four-wheel driveReference
Differential lockhydraulic rear lockReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
ComfortView cab standard with air-conditioning. GreenStar and AutoTrac ready with ISOBUS connector.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank219.5 LReference
Engine (gross)78.3 kWReference
Drawbar (tested)58.7 kWReference
John Deere PowerTech PVXReference
turbocharged dieselReference
4-cylinder 16-valveReference
liquid-cooled inlineReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsInterim Tier 4Reference
Emission controlexhaust gas recirculation (EGR)Reference
Rated Power (gross)78.3 kWReference
Fuel systemhigh pressure common railReference
Air cleanerdual stage dryReference
Rated RPM2100Reference
Idle RPM850-2250Reference
Operating RPM1300-2100Reference
Torque492.2 NmReference
Torque RPM1600Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Intake valve clearance0.480 mmReference
Exhaust valve clearance0.706 mmReference
Max power78.5 kWReference
Power at rated engine speed67.2 kWReference
Max power58.7 kWReference
Transmission
16-speed partial power shiftReference
24-speed partial power shiftReference
infinitely variable transmissionReference
TransmissionPowerQuad PlusReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Four power shift gears (1-4) in four synchronized ranges (A-D) with left-hand reverser.Reference
TransmissionAutoQuad Plus EcoReference
Gears24 forward and reverseReference
ClutchPermaClutch II hydraulic wet discReference
Four power shift gears (1-4) in six synchronized ranges (A-F) with left-hand reverser. Available in 40 km/h and 50 km/h versions.Reference
TransmissionAutoPowr IVTReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)64.1 kWReference
PTO (tested)78.5 kWReference
Typeload-sensing pressure flow compensatedReference
Pump flow113.6 lpmReference
SCV flow99.9 lpmReference
Rear Type2/3NReference
Controlelectronic lower-link draft sensingReference
Rear lift (at 24"/610mm)2156 kgReference
DrawbarCategory 2 swinging drawbar with hammerstrapReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type540/540E/1000 (optional)Reference
Power at rated PTO speed74.9 kWReference
Dimensions
Wheelbase258 cmReference
Weight5910 kgReference
Front tire10.00-16Reference
Rear tire16.9R30 (2WD)Reference
Standard tires (ag)Front: 10.00-16. Rear: 16.9R30 (2WD)Reference
Standard tires (ag)Front: 12.4R24. Rear: 16.9R30 (4WD)Reference
Length454 cmReference
Width255 cmReference
Height (cab)279 cmReference
Height (cab)288 cmReference
Operating weight5910 kgReference
Front axleTriple-Link SuspensionReference
Flange rear axleReference
Optional rack-and-pinion axle rear axle78 by 2555 mmReference
John Deere 6105R attachments
front-end loaderReference
6105R Serial Numbers
Location:Serial number plate on right side of main tractor frame.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging amps200Reference
Battery volts12Reference
Battery AH154Reference
Attachment overview
John Deere H310 loaderReference
John Deere H310 MSL loaderReference
John Deere H340 loaderReference
John Deere H340 MSL loaderReference
Test results
Diesel AutoQuad Plus 4WDNovember 2013 - December 2013, Link: OCED Tractor Test 2807 fileReference
PTO performanceReference
Fuel use23.5 l/hourReference
Fuel use22.0 l/hourReference
Drawbar performanceReference
Fuel use21.6 l/hourReference
Max pull5765 kgReference
Speeds
With 16.9R30 rear tires. Reverse speeds are about 5% faster than forward.Reference
With 16.9R30 rear tires. Reverse speeds are about 5% faster than forward. 50 km/h version shown, 40 km/h only affects gear F4.Reference
