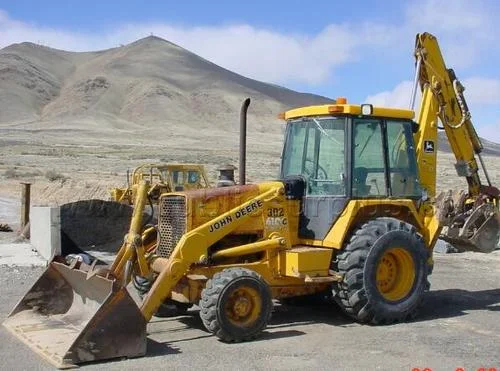

The John Deere 610B is a backhoe loader with an approximate 80 hp rating, typical for its class. Production of this model took place from 1984 to 1986. It features a 4-cylinder turbocharged diesel liquid-cooled engine, coupled with a powershift transmission and four-wheel drive. Its operating weight is listed at 6645 kg, making it suitable for operations covering up to 200 ac.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
6645 kg
Catalogue coverage
Variants represented
2
Richest spec table
35 rows
Recorded power
80 hp
Recorded weight
6645 kg
Transmissions
8-speed
Production years
1984-1986
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Backhoe loader tractorReference
Two- or four-wheel driveReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine59.7 kWReference
John DeereReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Power59.7 kWReference
Rated RPM2200Reference
Torque336.3 NmReference
Torque RPM1300Reference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity16.1 LReference
Transmission
8-speedReference
TransmissionPowerShiftReference
Gears8 forward and 4 reverseReference
Capacities
Fuel87.1 LReference
PTO & Hydraulics
Hydraulic system75.7 LReference
Typeclosed centerReference
Capacity75.7 LReference
Dimensions
Weight6645 kgReference
Length706 cmReference
Width233 cmReference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Charging amps51 (with cab)Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
John Deere Backhoe
Backhoe typeJohn Deere BackhoeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
