Tractor · 2010Unverified

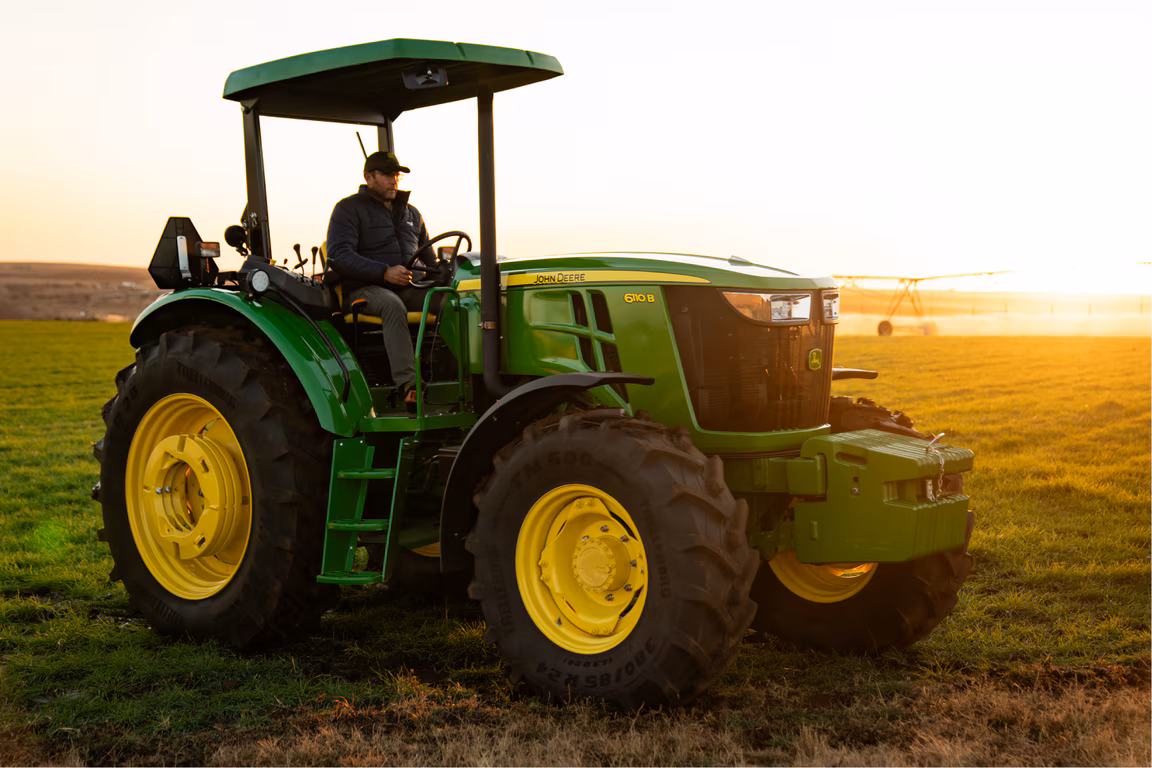

John Deere 6110B
John Deere 6110B — Utility tractor · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Tianjin, ChinaReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Four-post ROPS.Reference
Engine
John Deere 6.8L 6-cyl dieselReference
Engine87.2 kWReference
John DeereReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement6.8 LReference
Bore/Stroke106 x 127 mmReference
Power87.2 kWReference
Fuel systemdirect injectionReference
Compression17:1Reference
Rated RPM2100Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Starter power4.2 kWReference
Coolant capacity16.5 LReference
Oil capacity18.9 LReference
Oil change250 hReference
Transmission
9-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears9 forward and 3 reverseReference
Clutch304.8mm dry discReference
Oil type63.4Reference
Three gears (1-3) plus reverse (R) in three ranges (A-C).Reference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
Hydraulic system60.0 LReference
Typeopen centerReference
Capacity60.0 LReference
Valves0 to 3Reference
Pump flow68.1 lpmReference
Steering flow26.9 lpmReference
Rear TypeIIReference
Rear lift (at ends)3468 kgReference
Rear lift (at 24"/610mm)3150 kgReference
Rear Armsfixed link endsReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2100Reference
Engine RPM1000@2100Reference
Capacities
Fuel149.9 LReference
Dimensions
Wheelbase264 cmReference
Front tire18.4x38Reference
Standard tires (ag)Front: 18.4x38. Rear:Reference
Ag front13.6x24Reference
Ag rear18.4x34Reference
Ag front14.9x24Reference
Length476 cmReference
Width165 cmReference
Height (exhaust)395 cmReference
Clearance (front axle)43 cmReference
Clearance (rear axle)67 cmReference
Clearance (drawbar)46 cmReference
Front tread144 to 201 cmReference
Rear tread151 to 201 cmReference
6110B Serial Numbers
Location:Right side of tractor frame above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps75Reference
Battery CCA925Reference
Battery volts12Reference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
