Tractor · 2008Unverified

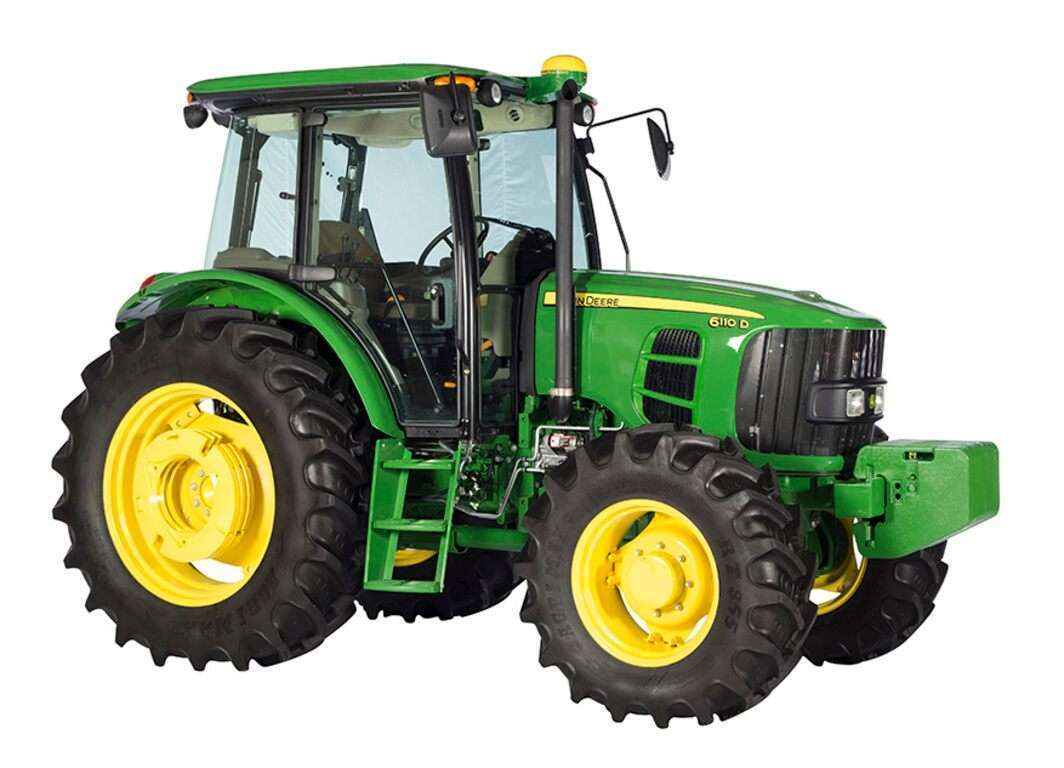

John Deere 6110D
John Deere 6110D — 6D Series · 106 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
106 hp
Weight
3870 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Saltillo, MexicoReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (gross)79.0 kWReference
John Deere 4045T PowerTechReference
turbocharged dieselReference
4-cylinder 8-valveReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
Rated Power (gross)79.0 kWReference
Air cleanerdry element with pre-cleanerReference
Compression17:1Reference
Rated RPM2100Reference
Idle RPM950-2275Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity16.5 LReference
Intake valve clearance0.356 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity12.3 LReference
Oil change250 hReference
Oil change500 h (JD TorqGARD oil)Reference
Transmission
9-speed unsynchronized gearReference
9-speed partially synchronziedReference
TransmissionJohn Deere Collar ShiftReference
Typeunsynchronized gearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Oil capacity57.9 LReference
Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Tractor must be stopped, and clutch used, to shift gear or range.Reference
TransmissionJohn Deere Top Shaft Syncronized (TSS)Reference
Typepartially synchronziedReference
Three gears (1-3) plus reverse (R) in each of three ranges (A-C). Shifts between gears, including to reverse, are synchronized using the clutch. Shifts between ranges are not synchronized, the operator must stop the tractor and use the clutch.Reference
PTO & Hydraulics
PTO (claimed)67.1 kWReference
Hydraulic system57.9 LReference
Typeopen centerReference
Capacity57.9 LReference
Pressure195.1 barReference
Rear valves2 to 3Reference
Pump flow66.6 lpmReference
Steering flow26.1 lpmReference
Rear TypeIIReference
Controlmechanical lower linkReference
Rear lift (at ends)3469 kgReference
Rear lift (at 24"/610mm)3150 kgReference
Rear PTOindependentReference
Clutchmechanical dry discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2100Reference
Engine RPM1000@2100Reference
Capacities
Fuel157.8 LReference
Front axle6.5 LReference
Front hubs2.0 LReference
Dimensions
Wheelbase234 cmReference
Weight3870 kgReference
Front tire14.9-24Reference
Rear tire23.1-30Reference
Standard tires (ag)Front: 14.9-24. Rear: 23.1-30Reference
2WD Length427 cmReference
4WD Length421 cmReference
Width182 cmReference
Height (cab)273 cmReference
Height (exhaust)269 cmReference
Shipping weight3870 kgReference
Max weight5801 kgReference
Rear axle1828 mmReference
John Deere 6110D attachments
front-end loaderReference
6110D Serial Numbers
Location:Right side of main tractor frame above front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps70 (ROPS)Reference
Charging amps90 (cab)Reference
Battery CCA550Reference
Battery volts12Reference
Battery AH102Reference
Battery Group27Reference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
