Tractor · 2010Unverified

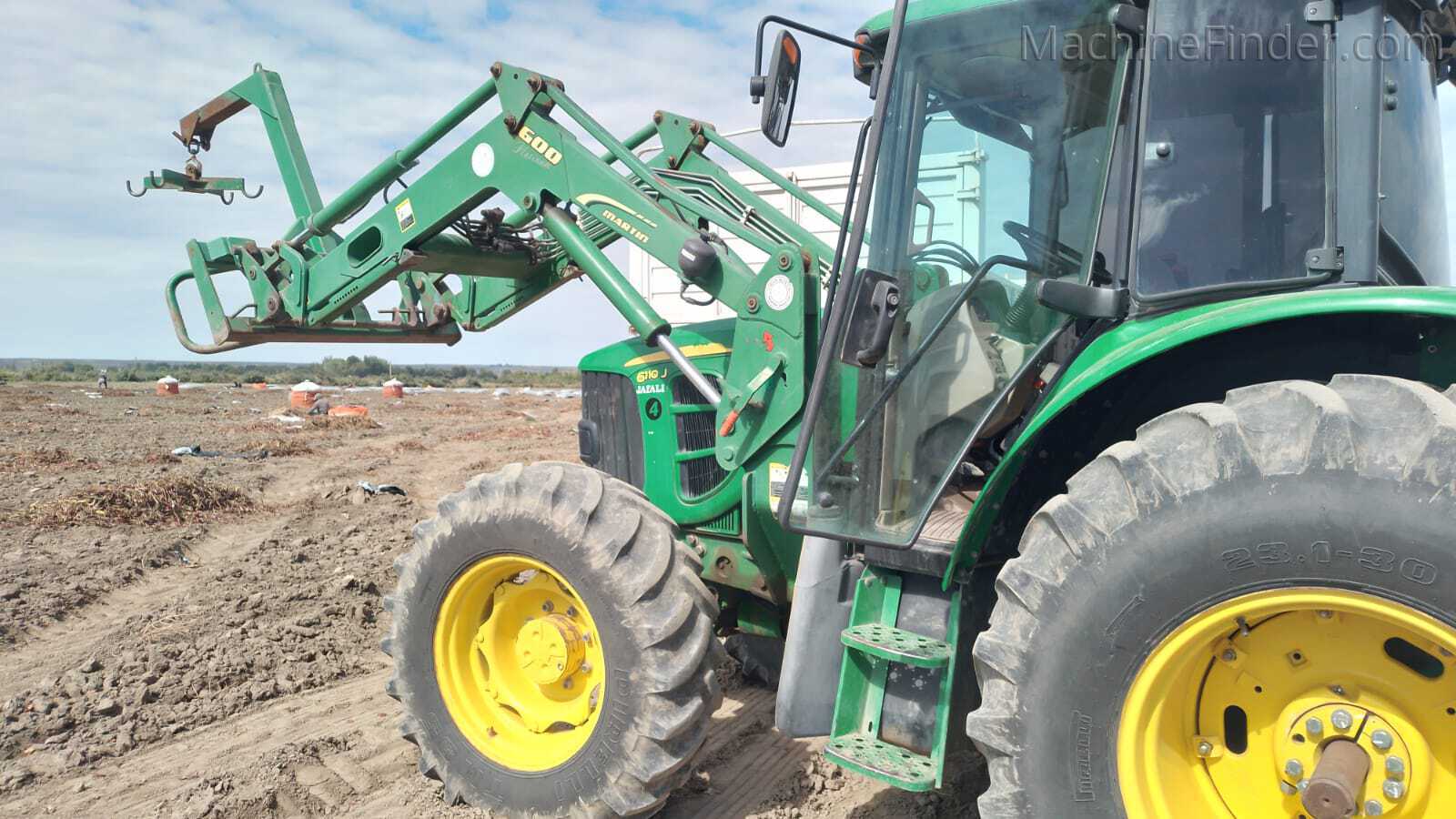

John Deere 6110J
John Deere 6110J — 6J Series · 94 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
94 hp
Weight
9125 to 10380 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Montenegro, BrazilReference
Four-wheel driveReference
Differential lockelectro-hydraulicReference
Power steeringReference
Hydraulic wet disc brakesReference
Four-post ROPS. Cab optional.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank152.0 LReference
Engine82.0 kWReference
John Deere 4045 PowerTechReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke105 x 127 mmReference
Power82.0 kWReference
Fuel systemrotary injection pumpReference
Rated RPM2300Reference
Torque429.0 NmReference
Torque RPM1400Reference
Starter volts12Reference
Coolant capacity20.0 LReference
Oil capacity12.0 LReference
Transmission
12-speed fully synchronizedReference
16-speed partial power shiftReference
TransmissionJohn Deere SyncroPlusReference
Typefully synchronizedReference
Gears12 forward and 4 reverseReference
Clutchhydraulic wet discsReference
Oil typeJD Hy-GardReference
Three synchronized gears (1-3) in four synchronized ranges (A-D).Reference
TransmissionJohn Deere PowrQuadReference
Typepartial power shiftReference
Gears16 forward and reverseReference
Four power shift gears (1-4) in four synchronized ranges (A-D).Reference
PTO & Hydraulics
PTO (claimed)70.1 kWReference
Typepressure compensatedReference
Pressure200.0 barReference
Valves2Reference
Pump flow65.0 lpmReference
SCV flow60.0 lpmReference
Oil typeJD Hy-GardReference
Rear TypeIIReference
Controlelectronic lower linkReference
Rear lift (at ends)3800 kgReference
Rear lift (at 24"/610mm)2500 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Rear PTO Type540Reference
Dimensions
Wheelbase240 cmReference
Weight9125 to 10380 poundsReference
Front tire14.9-26Reference
Rear tire23.1-30Reference
Standard tires (ag)Front: 14.9-26. Rear: 23.1-30Reference
Optional tires (ag)Front: 14.9-24. Rear: 23.1-30Reference
Optional tires (ag)Front: 14.9-24. Rear: 18.4-34Reference
Optional tires (ag)Front: 14.9-24. Rear: 18.4-38Reference
Optional tires (ag)Front: 14.9-26. Rear: 18.4-38Reference
Optional tires (ag)Front: 19.4-24. Rear: 23.1-30Reference
Optional tires (ag)Front: 14.9-24. Rear: 15.5-38Reference
Optional tires (ag)Front: 11.2-28. Rear: 13.6-38Reference
Optional tires (ag)Front: 12.4-36. Rear: 13.6-46Reference
Length456 cmReference
Height267 cmReference
Ground clearance50 cmReference
Flange rear axleReference
Bar rear axle86 by 2438 mmReference
Front tread151 to 205 cmReference
Rear tread180 cmReference
Rear tread165 to 240 cmReference
4139 kgReference
4708 kgReference
Ballasted6001 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Battery volts12Reference
Battery AH100Reference
Speeds
With 23.1-30 R1 rear tires.Reference
With 23.1-30 R1 rear tires. Reverse speeds are 15% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
