Tractor · 2015Unverified

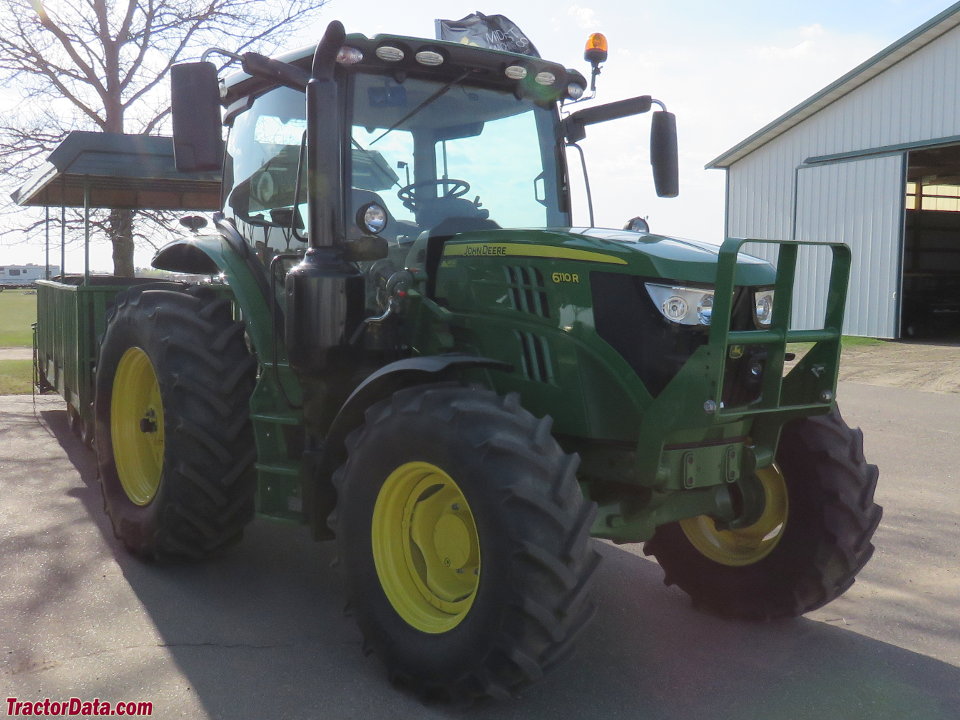

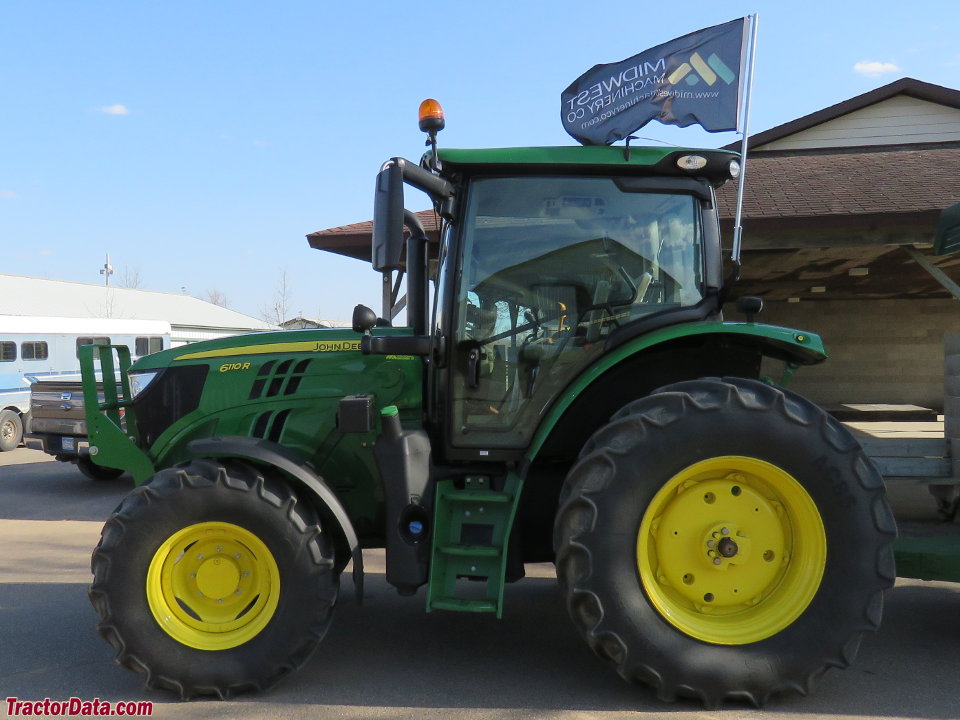

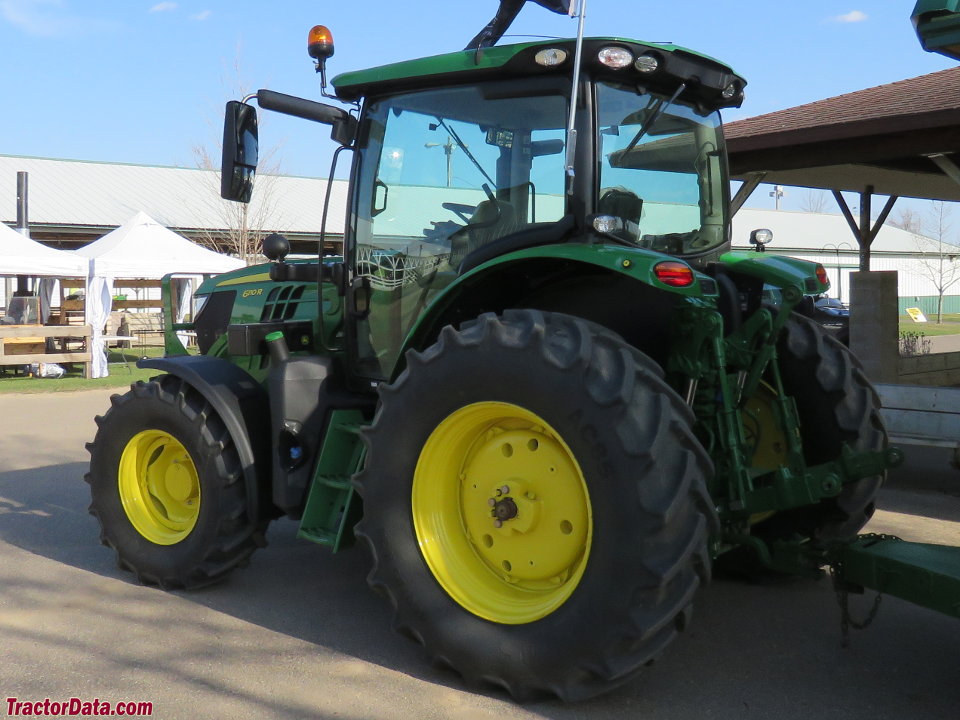

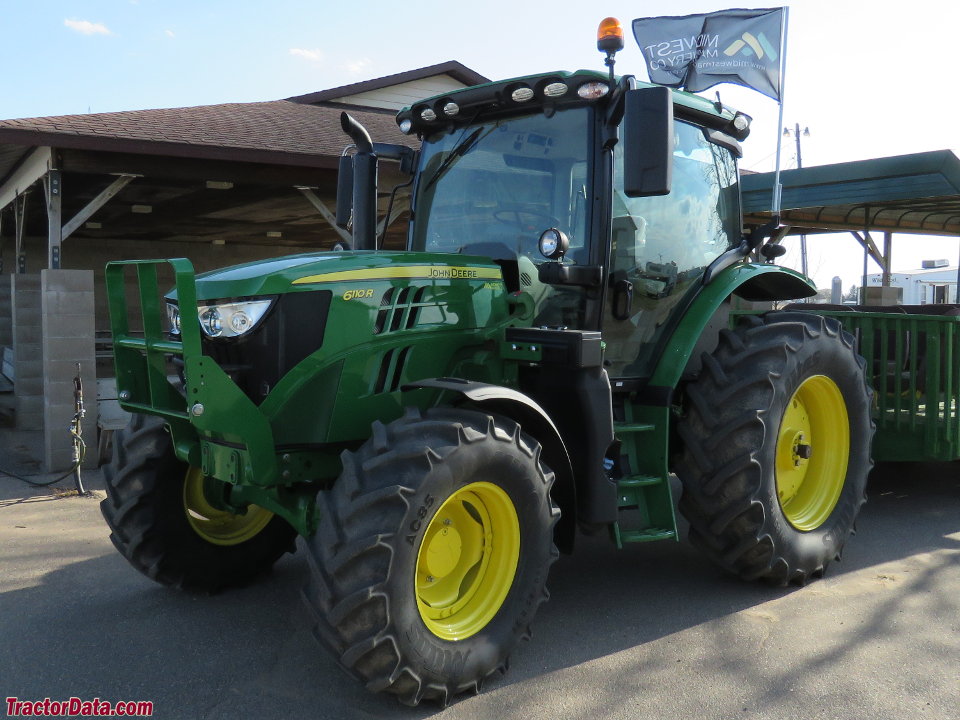

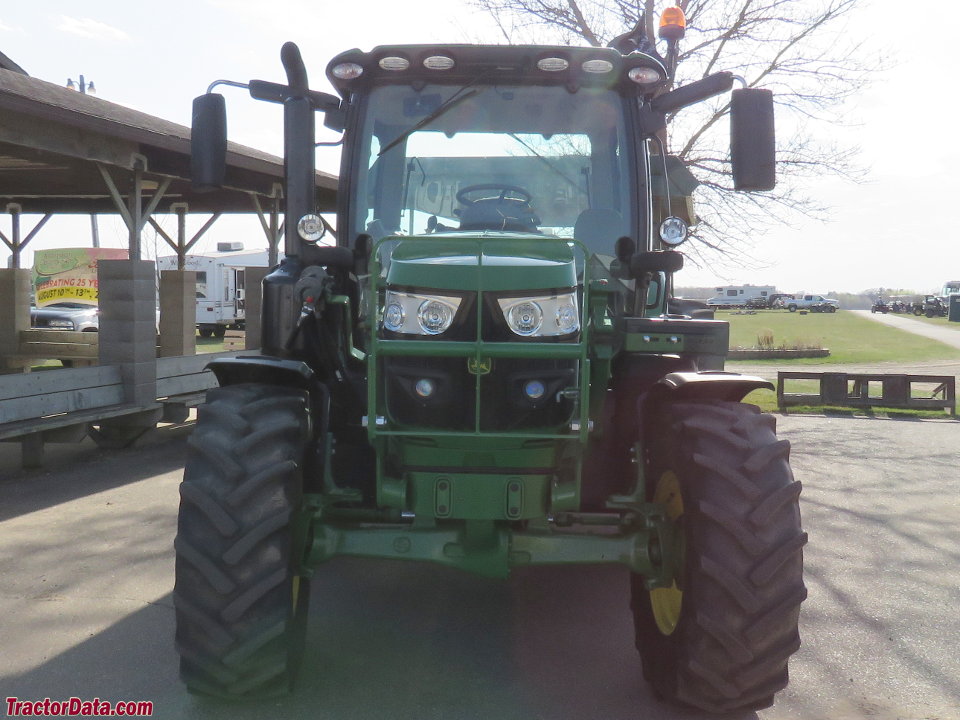

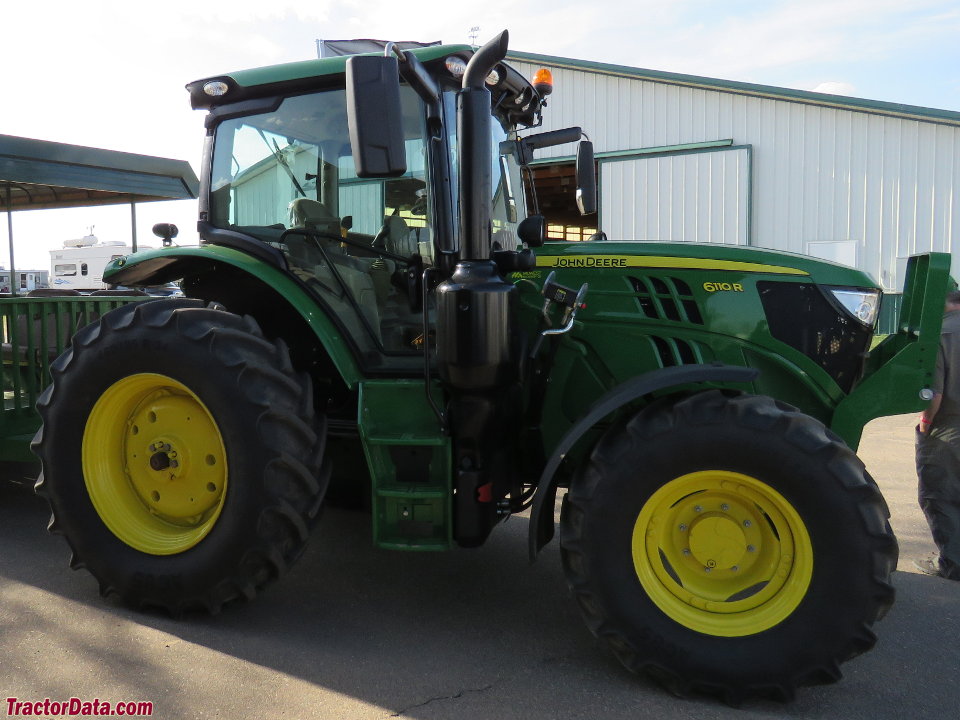

John Deere 6110R
John Deere 6110R — 6R Series · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank194.9 LReference
Exhaust fluid (DEF)12.9 LReference
Engine (gross)82.0 kWReference
Engine (max)88.7 kWReference
John DeereReference
turbocharged dieselReference
4-cylinder 16-valveReference
liquid-cooled inlineReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction and exhaust gas recirculationReference
Rated Power (gross)82.0 kWReference
Maximum Power (gross)88.7 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed partial power shiftReference
24-speed partial power shiftReference
infinitely variable transmissionReference
TransmissionPowrQuadReference
Typepartial power shiftReference
Gears16 forward and reverseReference
TransmissionAutoQuad Plus EcoReference
Gears24 forward and reverseReference
TransmissionAutoPowr IVTReference
Typeinfinitely variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)64.1 kWReference
Typeclosed centerReference
Pressure200.0 barReference
Pump flow113.6 lpmReference
SCV flow99.9 lpmReference
Rear TypeIIReference
Controlelectronic lower-link draft sensingReference
Rear lift (at 24"/610mm)2531 kgReference
Rear lift (at 24"/610mm)3371 kgReference
DrawbarCat. 2Reference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Rear PTO Type540/540E/1000Reference
6110R Serial Number Location
Serial number plate on the right side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Charging amps240Reference
Charging volts14Reference
Battery volts12Reference
Battery AH154Reference
Dimensions
Max weight8949 kgReference
Max Drawbar2449 kgReference
Flange rear axleReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
